Kubota WSM L6060 User Manual

CABIN
L3560, L4060, L4760, L5060, L5460, L6060, WSM
10-S35
Front Grill, Skirts and Bonnet

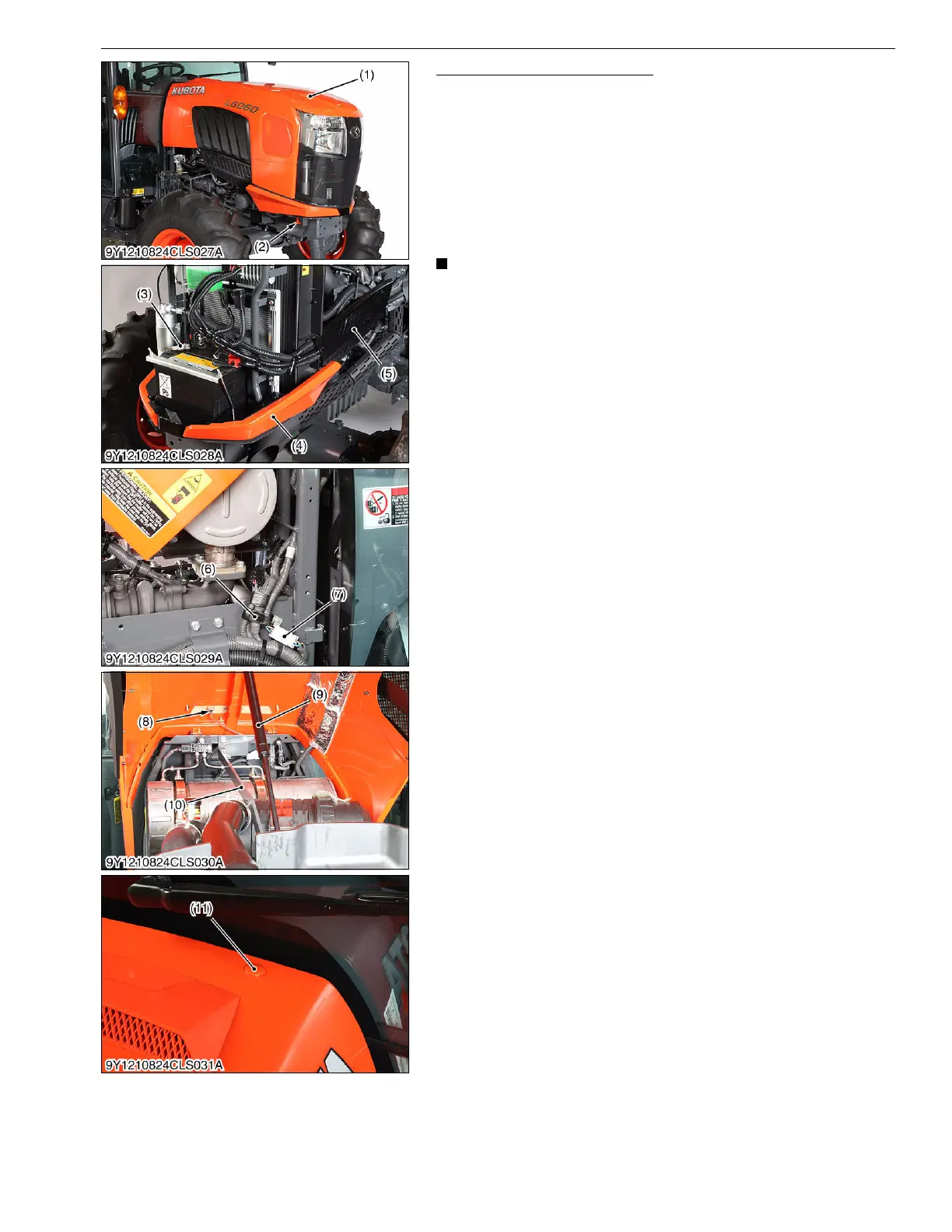

1. Pull down the knob (2) and open the bonnet (1).
2. Disconnect the battery negative cable (3).
3. Remove the front grill (4), left and right side skirts (5).
4. Remove the clamp (6) and disconnect the head light connector
(7).
5. Disconnect the window washer hose (8) and remove the
damper (9).
6. Remove the plug (11) and the ß pin inside, then the bonnet.
7. Remove the damper support (10).
NOTE
• When disconnecting the battery cables, disconnect the
negative cable first. When connecting the battery cables,
connect the positive cable first.
9Y1210824CLS0015US0
(1) Bonnet
(2) Knob
(3) Battery Negative Cable
(4) Front Grill
(5) Skirt
(6) Clamp
(7) Head Light Connector
(8) Window Washer Hose
(9) Damper
(10) Damper Support
(11) Plug
KiSC issued 03, 2016 A

Kubota WSM L6060 Specifications

General

Engine Model	Kubota V2403-CR-TE4
Horsepower	62 HP
3-Point Hitch	Category I & II
Type	Compact Utility Tractor
Fuel Type	Diesel
Drive	4WD
Engine Type	4-cylinder, liquid-cooled diesel
Transmission	Hydrostatic (HST)
PTO Power	54 hp
Wheelbase	74.6 inches
Displacement	148.5 cu in (2.4 L)
Tire Size (Front)	12.4-16
