CABIN
L3560, L4060, L4760, L5060, L5460, L6060, WSM
10-S49
Recirculation / Fresh Air Motor Cable and Temperature Motor
Cable

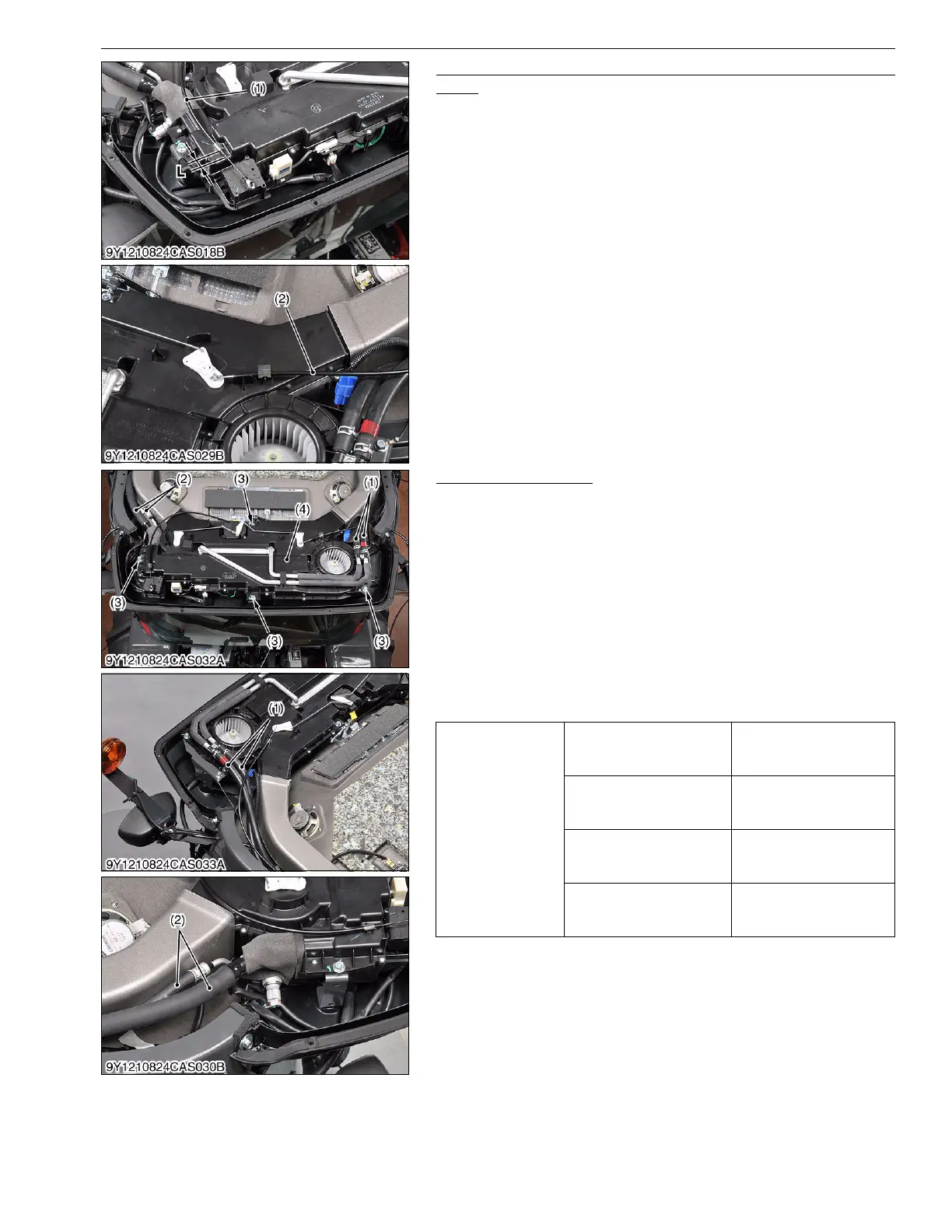

1. Disconnect the recirculation / fresh air motor cable (1).
2. Disconnect the temperature motor cable (2).
9Y1210824CAS0081US0
Air Conditioning Unit
1. Disconnect the heater hoses (1).
2. Disconnect the air conditioner pipes (2).
3. Remove the screws (3), then the air conditioning unit (4).
4. Remove the duct hoses.
(When reassembling)
• When reconnecting the cooler pipes with the unit, apply
compressor oil (DENSO OIL8 or equivalent) to O-rings.
• When remounting the unit, tighten five screws by hand and
finally retighten them after aligning the inner roof duct with the
unit duct.
• When connecting the heater hose with A/C unit, hose should be
put into the A/C unit pipe more than 30 mm (1.2 in.)
9Y1210824CAS0082US0
(1) Recirculation / Fresh Air Motor
Cable
(2) Temperature Motor Cable
L : 3.0 to 15 mm (0.12 to 0.59 in.)
Tightening torque
A/C unit mounting screw
(M6)
4.0 to 6.8 N·m
0.40 to 0.70 kgf·m
2.9 to 5.0 lbf·ft
A/C unit mounting screw
(M8)
9.81 to 11.6 N·m
1.00 to 1.19 kgf·m
7.24 to 8.60 lbf·ft
Low pressure pipe (Cooler
pipe (suction)) retaining nut
7.90 to 11.8 N·m
0.806 to 1.20 kgf·m
5.83 to 8.70 lbf·ft
High pressure pipe (Cooler
pipe (liquid)) retaining nut
11.8 to 14.7 N·m
1.21 to 1.49 kgf·m
8.71 to 10.8 lbf·ft
(1) Heater Hose
(2) Air Conditioner Pipe
(3) Screw
(4) Air Conditioner Unit
KiSC issued 03, 2016 A

Kubota WSM L6060 Specifications

General

Engine Model	Kubota V2403-CR-TE4
Horsepower	62 HP
3-Point Hitch	Category I & II
Type	Compact Utility Tractor
Fuel Type	Diesel
Drive	4WD
Engine Type	4-cylinder, liquid-cooled diesel
Transmission	Hydrostatic (HST)
PTO Power	54 hp
Wheelbase	74.6 inches
Displacement	148.5 cu in (2.4 L)
Tire Size (Front)	12.4-16
