2MN/2N1
1-5-29
(2) Detaching and refitting the developer unit and drum unit
Detaching example: Developer unit Y and Drum unit Y
Procedure
1. Remove the fuser unit (see page 1-5-
40).
2. Pull the transfer belt unit out a little (see
page 1-5-34).
3. Remove the inner unit (see page 1-5-
27).
4. Close the toner supply shutter.
5. Remove two connectors.

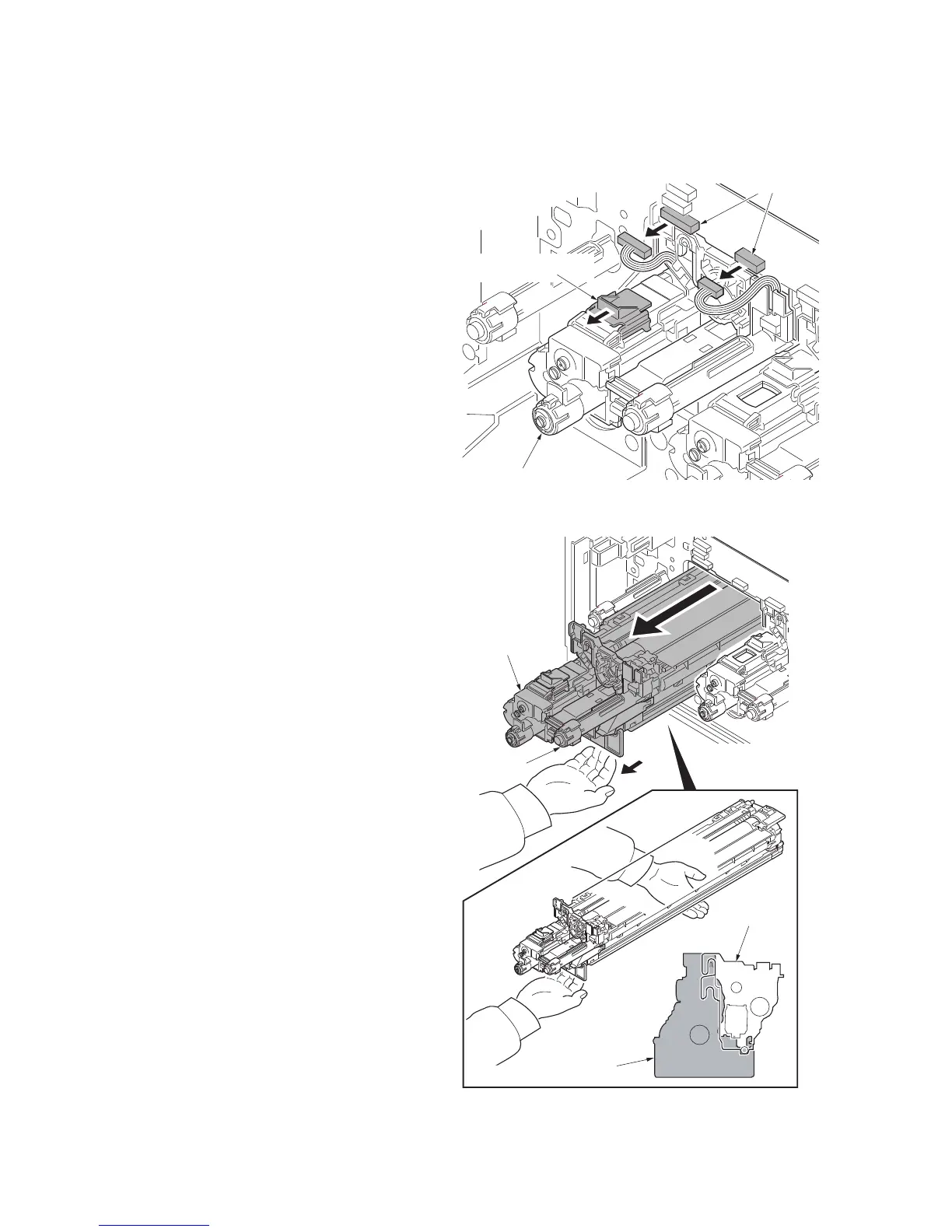

Figure 1-5-44
6. Pull out as one body the developer unit
and the drum unit.
(The developer unit becomes basic and
the drum units are combined.)
7. Detach the developer unit while sup-
porting bottom.
Figure 1-5-45
Toner supply shutter
Connectors
Developer unit
Developer unit
Developer unit
Drum unit
Drum unit
To Next Page
