1-2-5 Installing the IC card reader holder (option)
IC card reader holder installation requires the following parts:
*1: For internal wirings only
Supplied parts of IC card reader holder (1709AD0UN0):
The card reader base, card reader mount, and the pin are packaged as an assembled kit.
For internal wirings
Procedure
1. After confirming the data lamp is turned
off, perform shut-down on the operation
panel, turn power off, and unplug the
power receptacle(see page P.1-2-19).
2. Pull the paper conveying unit out.
3. Remove two screws and then remove
the upper right cover.

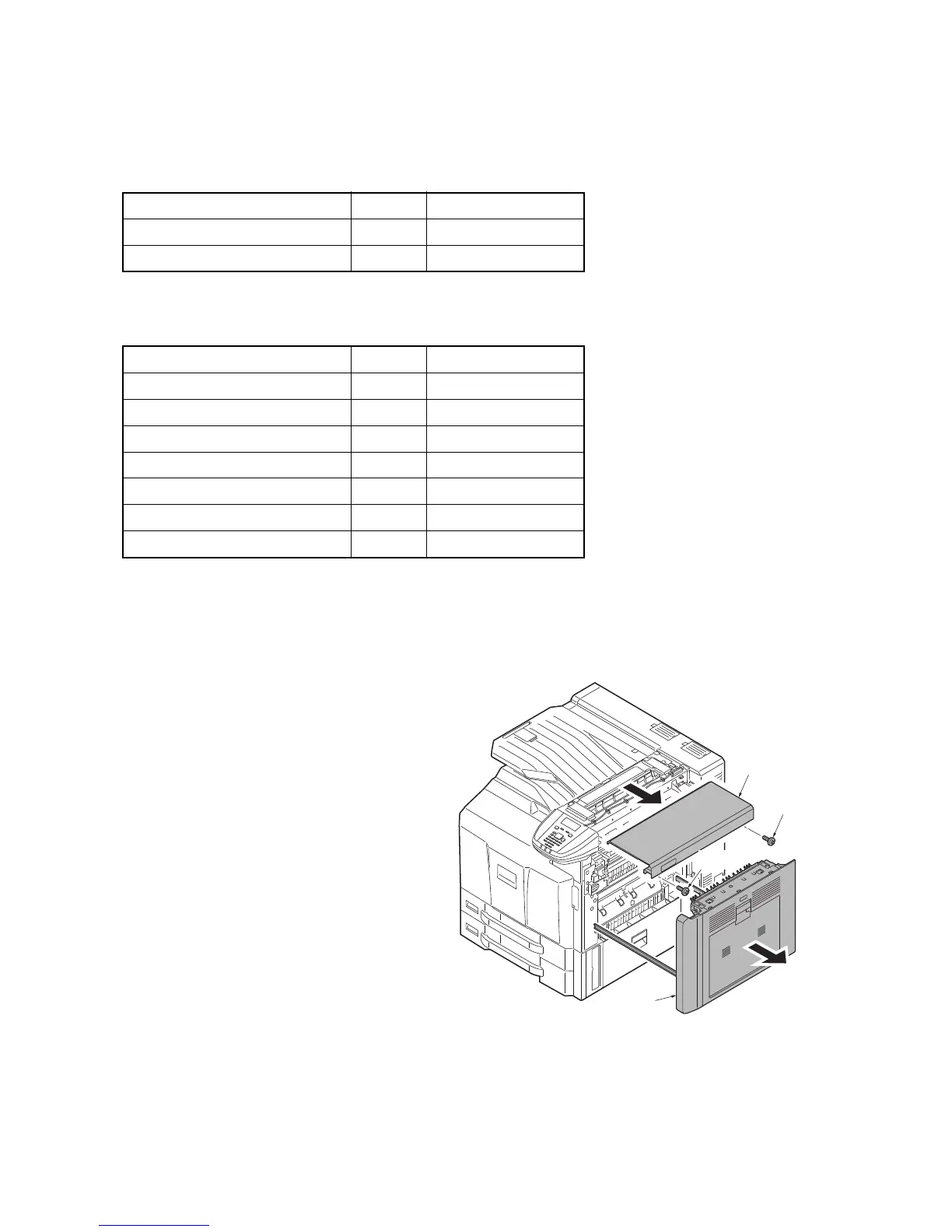

Figure 1-2-35
Parts Quantity Part.No.
IC card reader holder 1 1709AD0UN0 (option)
Relaying USB wire
*
1 302MN46210
Parts Quantity Part.No.
Card reader case 1 -
Card reader base 1 -
Card reader mount 1 -
Card reader tray 1 -
USB Wire (For extension) 1 -
Pin 3 303NS24410
Clamp 6 7YZM690002++H01
Paper conveying
unit
Screw
Screw
Upper right
cover
To Next Page
