Kyocera FS-9120DN User Manual

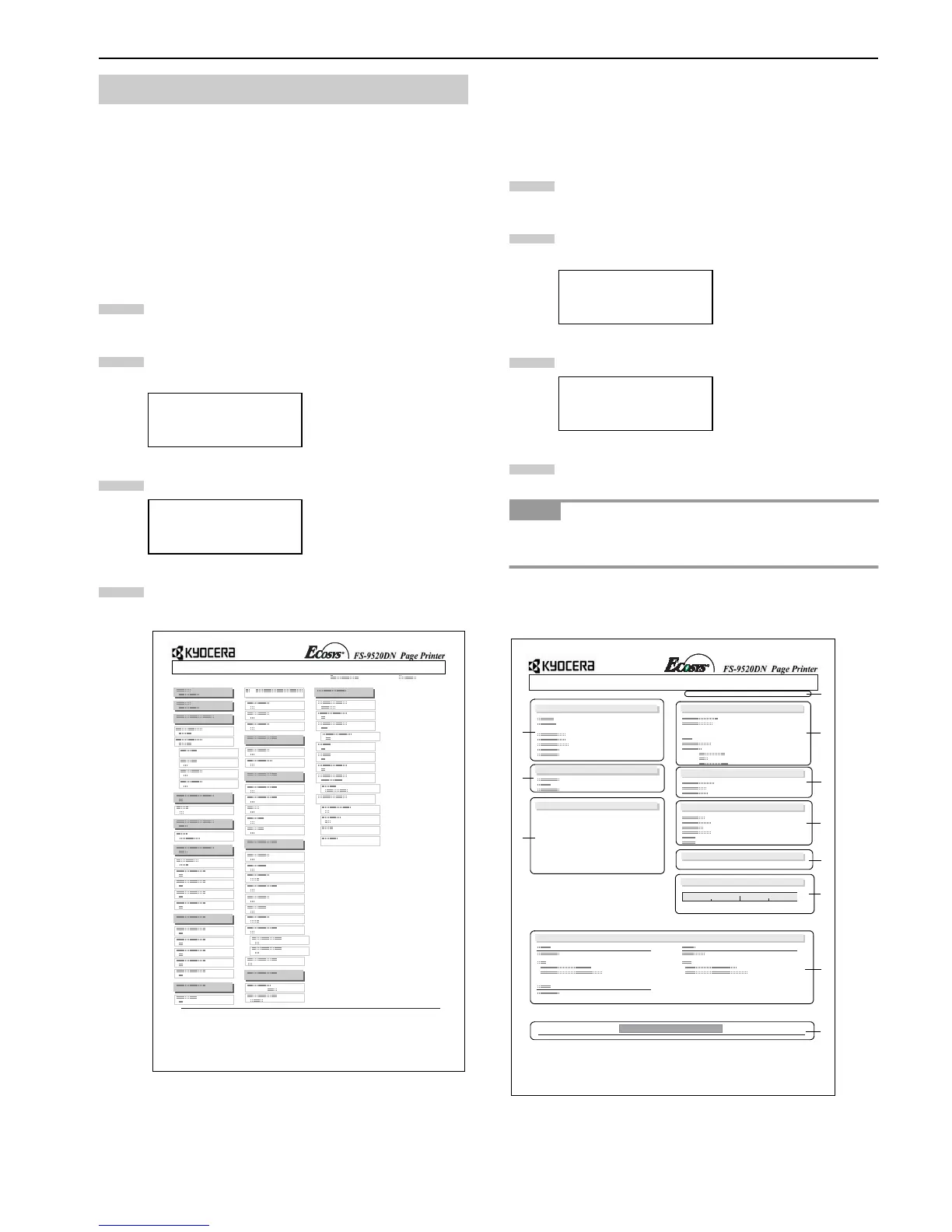

Chapter 3 Using the Operator Panel
3-11
This section explains the procedure for using the menu selec-
tion system. The menu selection system is activated by the
MENU key while the printer is Ready.
2.2.1 Printing the Menu Map
The printer prints a full list of menu selections. Note that
menus indicated on the list may vary depending on which op-
tion units are installed on the printer.
Press the MENU key.
Press the  or  key repeatedly until Print Menu
Map appears.
Press the ENTER key. A question mark (?) appears.
Press the ENTER key again. The printer prints a
menu map.
Figure 3-2
2.2.2 Printing Status Page
If you want to check the printer’s current status, including
memory available and option settings, you can find the infor-
mation you need on the status page.
Press the MENU key.
Press the  or  key repeatedly until Print
Status Page appears.
Press the ENTER key. A question mark (?) appears.
Press the ENTER key again. The printer prints a
status page.
For a full description of the status, see the following sample
status page.
The following is a sample status page. The numbers below re-
fer to the contents explained on the next page.
Figure 3-3
When the Network Status is turned on, the Network Interface Sta-
tus Page will be printed after the Printer Status. (See
page 3-20 .)
2.2 Using the Menu Selection System
Print
Menu Map
Print
Menu Map ?
1
2
3
4
MENU MAP
Print
Status Page
Print
Status Page ?
NOTE
1
2
3
4
KIR Test pattern ON
Memory
Installed Options
Network Status
Emulation
Toner Gauge
0
100
Interfaces
Hardware Information
Page Information
Error Log
STATUS PAGE
Firmware Version: Released:
1
3
5
7
8
2
4
0
A
9
6

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
