Kyocera FS-9120DN User Manual

5-1
Chapter 5 Maintenance
This chapter explains how to replace the toner container and
the waste toner box and how to clean the internal parts of the
printer. When you replace the toner container, make sure to
clean the internal parts of the printer.
The toner container in the printer should be replaced as soon
as the message display shows Toner low or soon after. If you
continue to use the printer, eventually the toner supply will
be exhausted at which point the printer will stop printing and
the Replace toner Clean printer message will be shown
instructing you to install a new toner kit.
Assuming an average toner coverage of 5 % and Ecoprint
mode turned off, the toner container will need replacing ap-
proximately once every 40,000 pages.*
* For a new printer with a toner kit installed for the first
time, the number of copies that can be printed will be ap-
proximately 20,000.
Toner Kits to be Used
Name: TK-70 (40,000 pages)
Contents: Toner container
Waste toner box
Wiper cloth
Grid cleaner
2 plastic bags (for disposal of the old toner contain-
er and waste toner box)
Installation Guide
• Be sure to distance items such as floppy disks during toner
container replacement.
• Be sure to clean the inside of the printer when replacing
the toner container.
• Use of original Kyocera Mita toner kits is highly recom-
mended to prevent printer trouble and ensure the long life
of the printer.
Replace the toner container using the following procedures.
Open the printer front cover all the way.

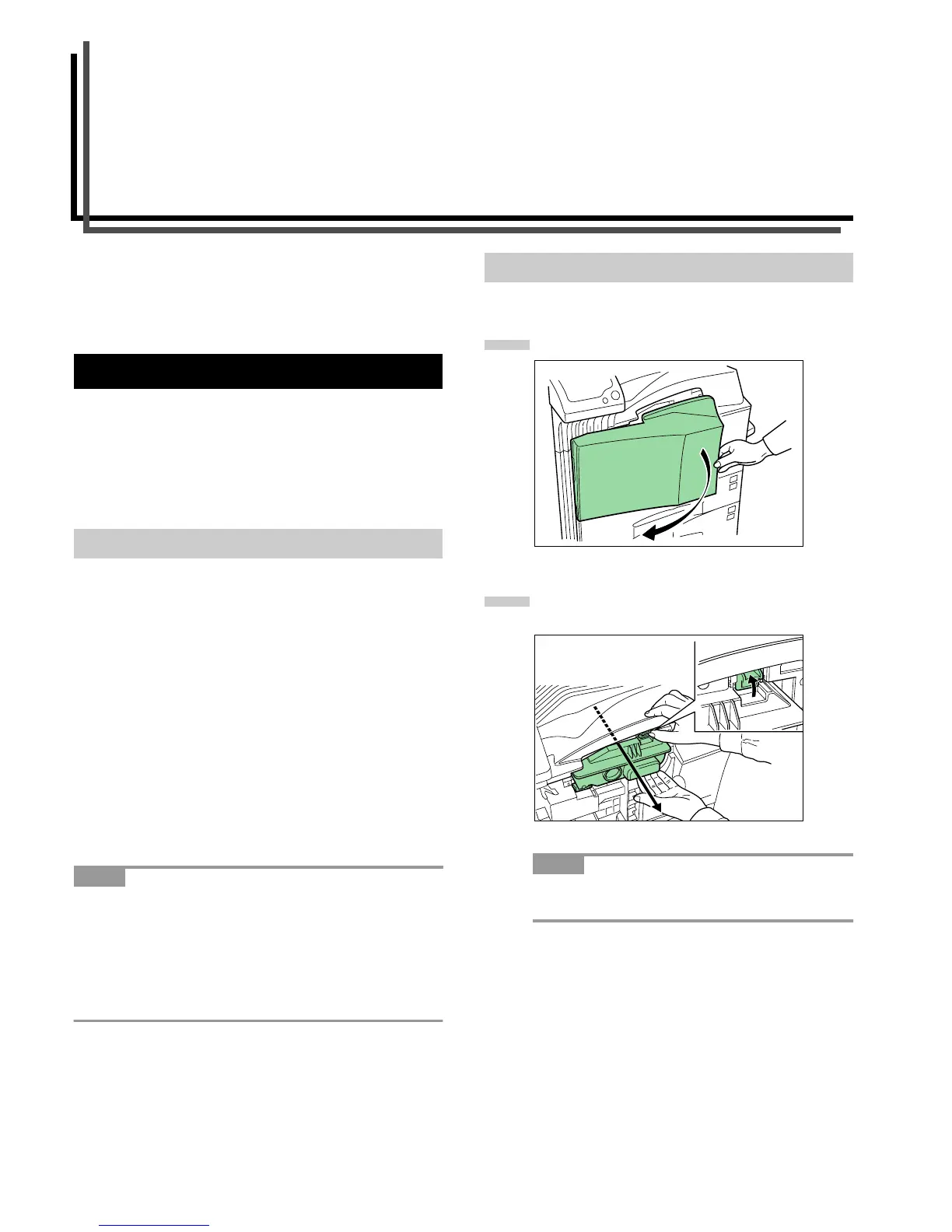

Figure 5-1
Push the lock lever (blue colored) up and gently re-
move the toner container until its handle appears.
Figure 5-2
Do not pull the toner container all the way as it can
fall off and the toner spots the floor.
1. Toner Container Replacement
1.1 Toner Container Replacement Interval
NOTE
1.2 Replenishing Toner
NOTE
1
2

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
