Kyocera FS-9120DN User Manual

Chapter 4 Troubleshooting
4-11

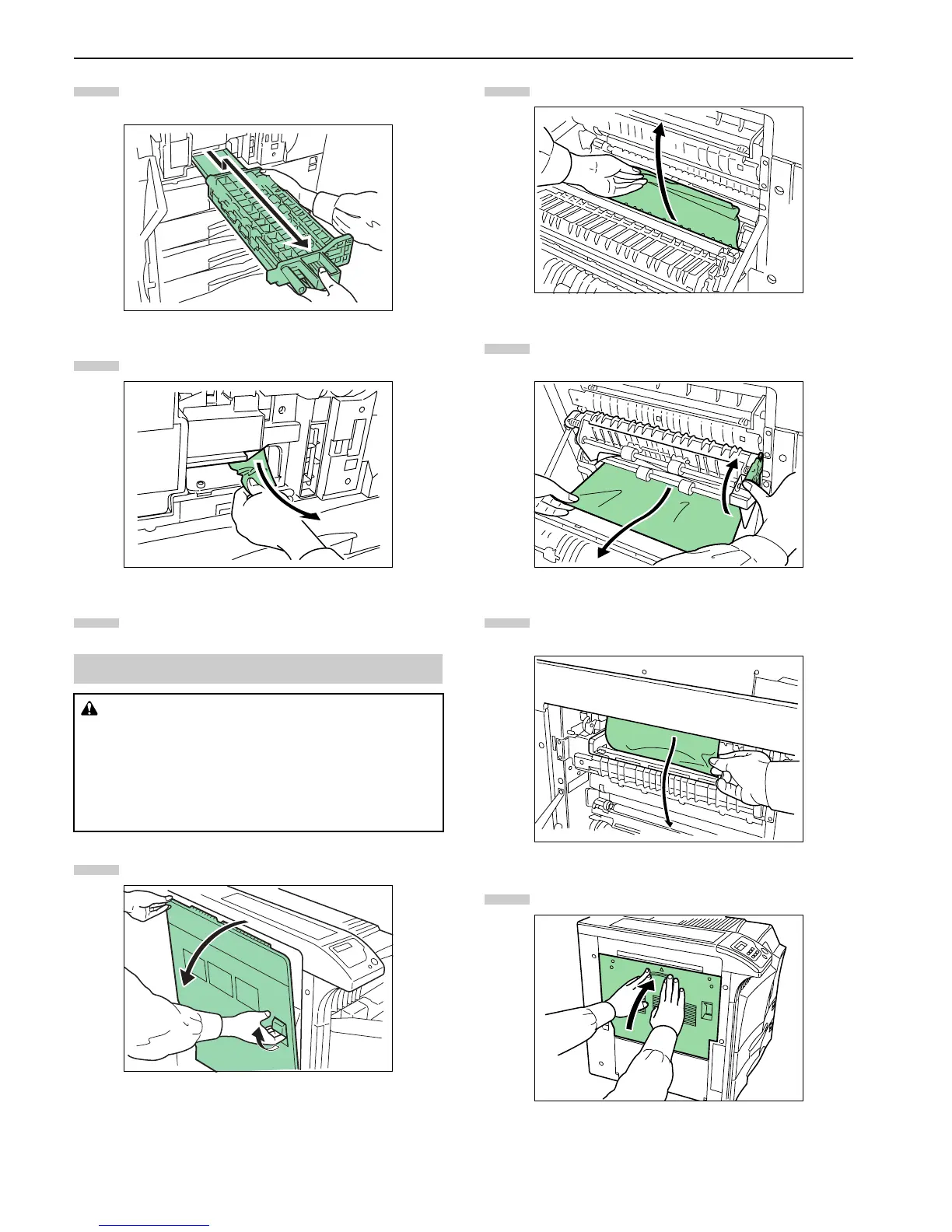

If the paper has been torn, remove the MP transport
tray.
Figure 4-13
Remove the jammed paper.
Figure 4-14
Replace the MP transport tray in its original posi-
tion, then close the front cover.
Pull up the lock lever and open left cover 1.
Figure 4-15
Remove the jammed paper.
Figure 4-16
Push the lever (gray colored) to raise the duplex unit
and remove the jammed paper.
Figure 4-17
If there is jammed paper in the output section, re-
move it.
Figure 4-18
Close left cover 1.
Figure 4-19
4.4 Jam in Left Cover 1
CAUTION
•Take care not to leave any small pieces of paper in the
printer when removing paper jams as this may result in
fire.
•The printer’s fixing unit is extremely hot. Take sufficient
care when working in this area, as there is a danger of
getting burned.
9
10
11
1
2
3
4
5

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
