7. Install the filler panels that come with the SAS/SATA 4 Pac HDD option into
empty drive bays.
Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 92.
Installing the operator information panel assembly
Use this information to install the operator information panel assembly.
About this task
To install the operator information panel, complete the following steps.
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect the power cords and
all external cables, if necessary.
3. Remove the cover (see “Removing the cover” on page 36).
4. From the front of the server, slide the operator information panel into the
server until it clicks into place.
5. Inside the server, connect the cable to the rear of the operator information panel
assembly. The following illustration shows the cable routing for the operator
information panel.

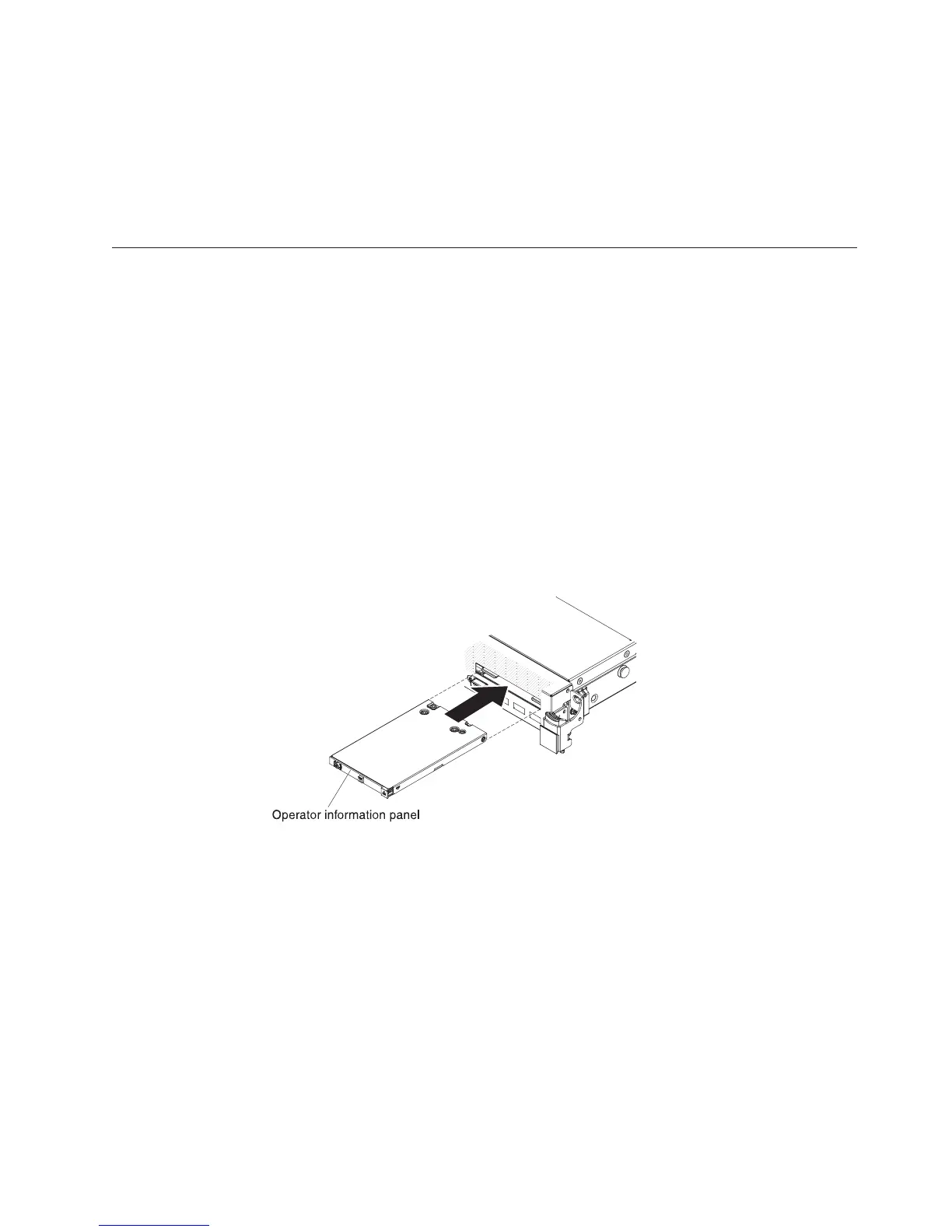

Figure 77. Operator information panel installation
Chapter 2. Installing optional devices 91
