Cabling operator information panel
The internal routing and connectors for the operator information panel.
The following notes describe additional information you must consider when you
install or remove the operator information panel cable:
v To remove the operator information panel cable, slightly press the cable toward
the fan cage; then, pull to remove the cable from the connector on the system
board. Pulling the cable out of the connector by excessive force might cause
damage to the cable or connector.
v To connect the operator information panel cable on the system board, press
evenly on the cable. Pressing on one side of the cable might cause damage to the
cable or connector.

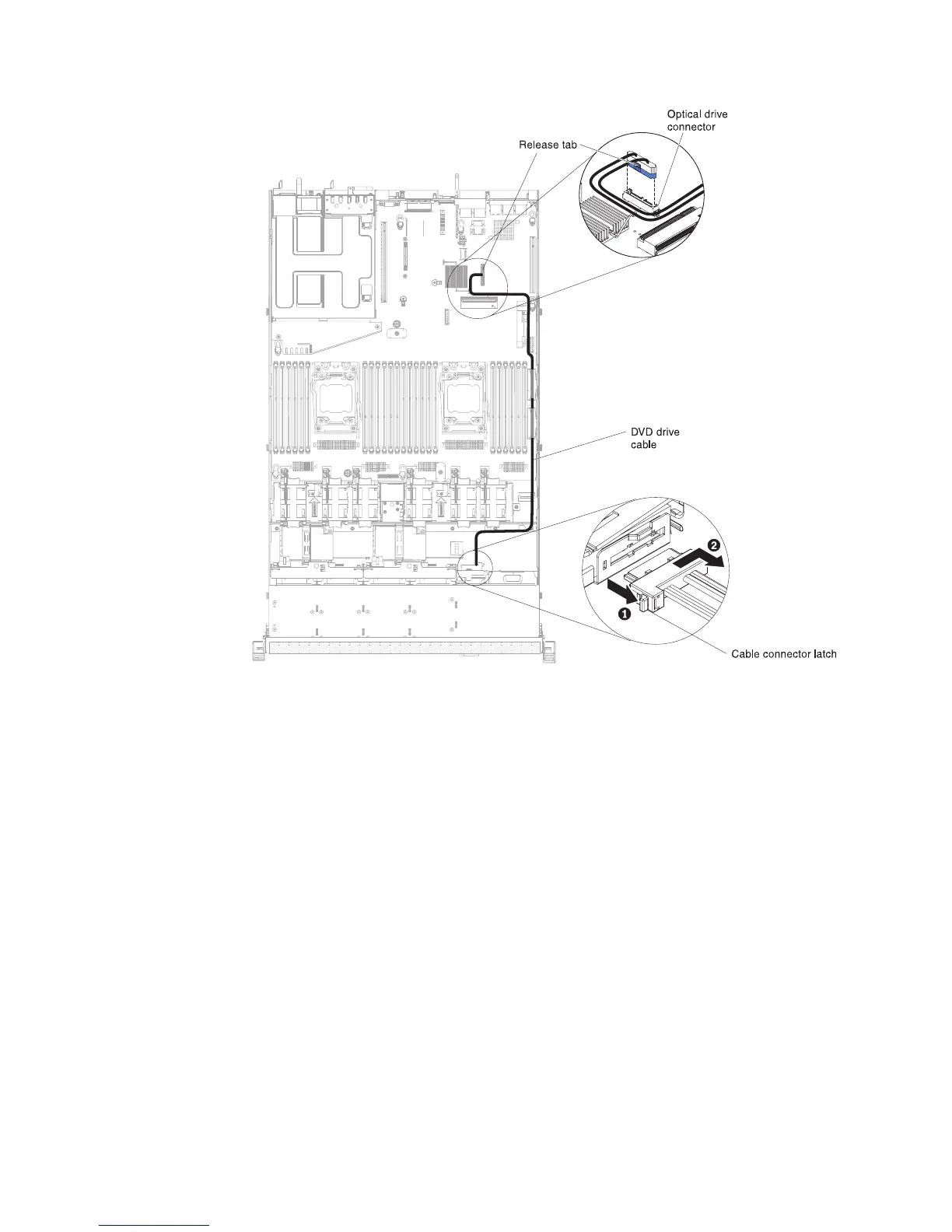

Figure 103. DVD drive cable connection
200 System x3550 M4 Type 7914: Installation and Service Guide
