Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 92.
Installing an optional DVD drive cable
Use this information to install an optional DVD drive cable.
About this task
To install the DVD drive cable, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect the power cords and
all external cables.
3. Remove the cover (see “Removing the cover” on page 36).
4. Remove the air baffle (see “Removing the air baffle” on page 37).
5. Align the cable connector with the connector on the rear of the DVD drive
cage. Press the cable connector into the optical drive cage connector and slide it

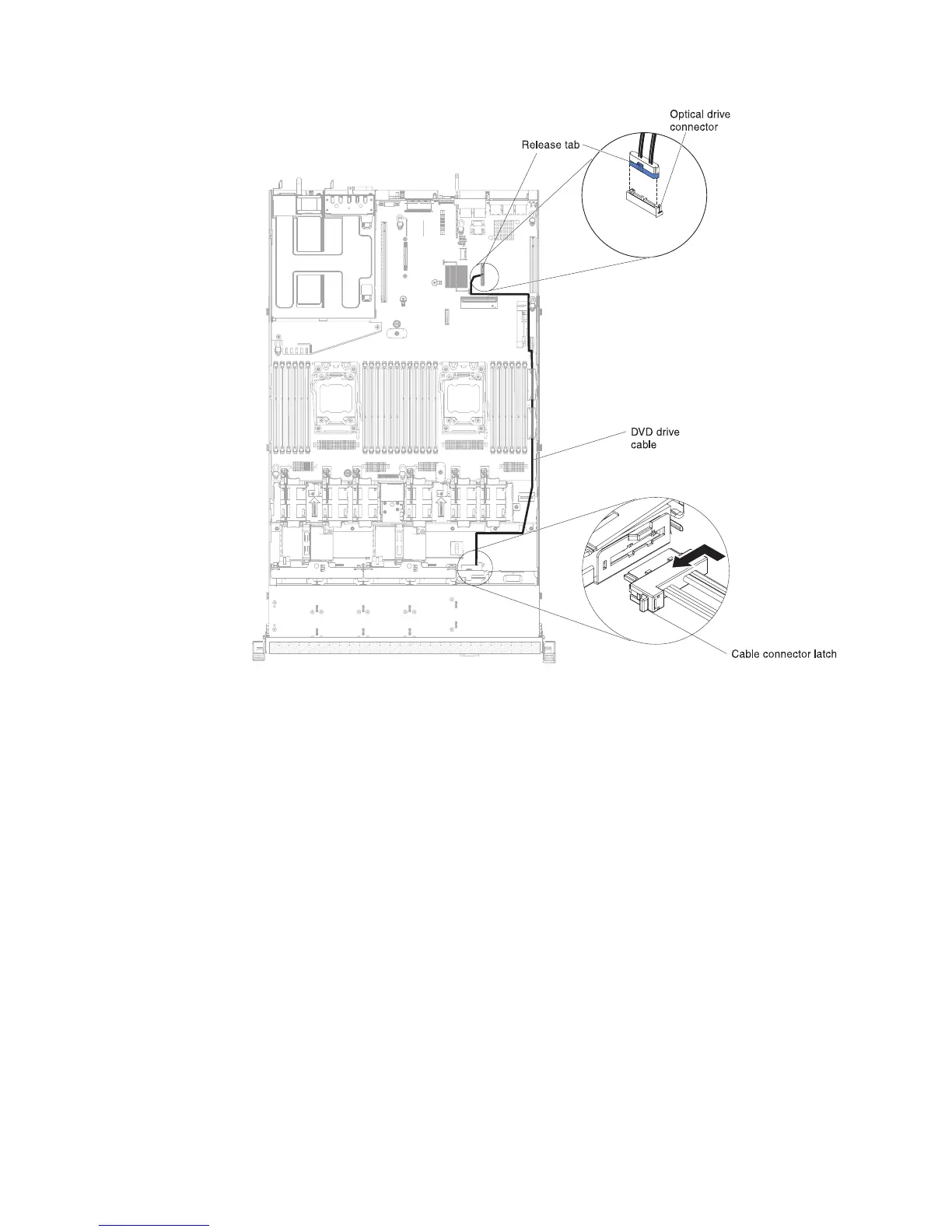

Figure 32. DVD drive cable routing
46 System x3550 M4 Type 7914: Installation and Service Guide
