The following notes describe additional information when you install the cable:
v To connect the operator information panel cable on the system board, press
evenly on the cable. Pressing on one side of the cable might cause damage to
the cable or connector.
v The operator information panel cable must pass through the chassis latch
between fan 3 and fan 4 in order not to impede the fan cage.
6. Replace the cover (see “Replacing the cover” on page 203).
7. Slide the server into the rack.
8. Reconnect the power cords and any cables that you removed.
9. Turn on the peripheral devices and the server.
Completing the installation
Use this information to complete the installation.
About this task
To complete the installation, complete the following steps:
Procedure
1. If you removed the air baffle, reinstall it (see “Replacing the air baffle” on page
93).
2. If you removed the server cover, replace it (see “Replacing the cover” on page
94).
3. Install the server in the rack cabinet (see the Rack Installation Instructions that
comes with the server for instructions).

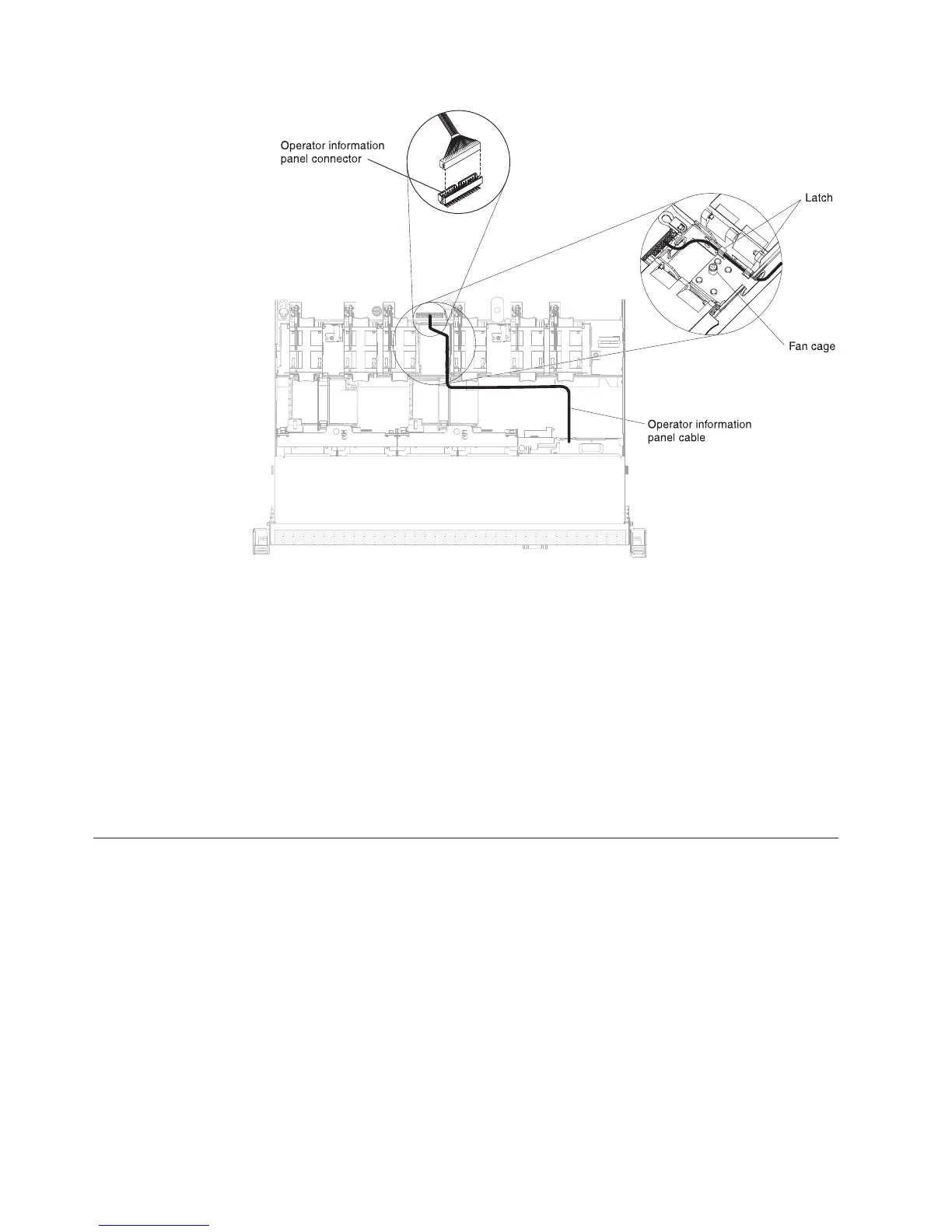

Figure 78. Operator information panel cable connection
92 System x3550 M4 Type 7914: Installation and Service Guide
