7.6.4 Automation interface (AIF-OUT)
Purpose
Interface for output signals from the connected field busmodule(e.g. INTERBUS-S,PROFIBUS-DP)
for setpoints and actual values as binary, analog or phase information.Please observe the
corresponding Operating Instructions of the connected fieldbus module.
AIF-OUT
Status w ord
Bit 0
Bit 15
Bit 0
Bit 31
B y te 7 ,8
B y te 5 ,6
A u to m a tio n
in te rfa c e
X1
B y te 3 ,4
1
0
2
C 0853
1
0
2
C 0852
AIF-O UT.D 1
16 Bit
Low W ord
16 Bit
H igh W ord
C 0851
16 Bit
Low W ord
16 Bit
H igh W ord
C 0859
FDO -0
AIF-O UT.W 1
C 0850/1
C 0858/1
FDO -15
...
AIF-O UT.W 2
C 0850/2
AIF-O UT.W 3
C 0850/3
C 0858/2
C 0858/3
STAT.B0
DCTRL-IMP
...
STAT.B15
STAT.B14
16 Bit
FDO
C 0116/1
C 0116/16
FDO -16
FDO -31
...
C 0116/17
C 0116/32
Bit 0
Bit 15
C 0156/1
STAT
C 0156/6
C 0156/7

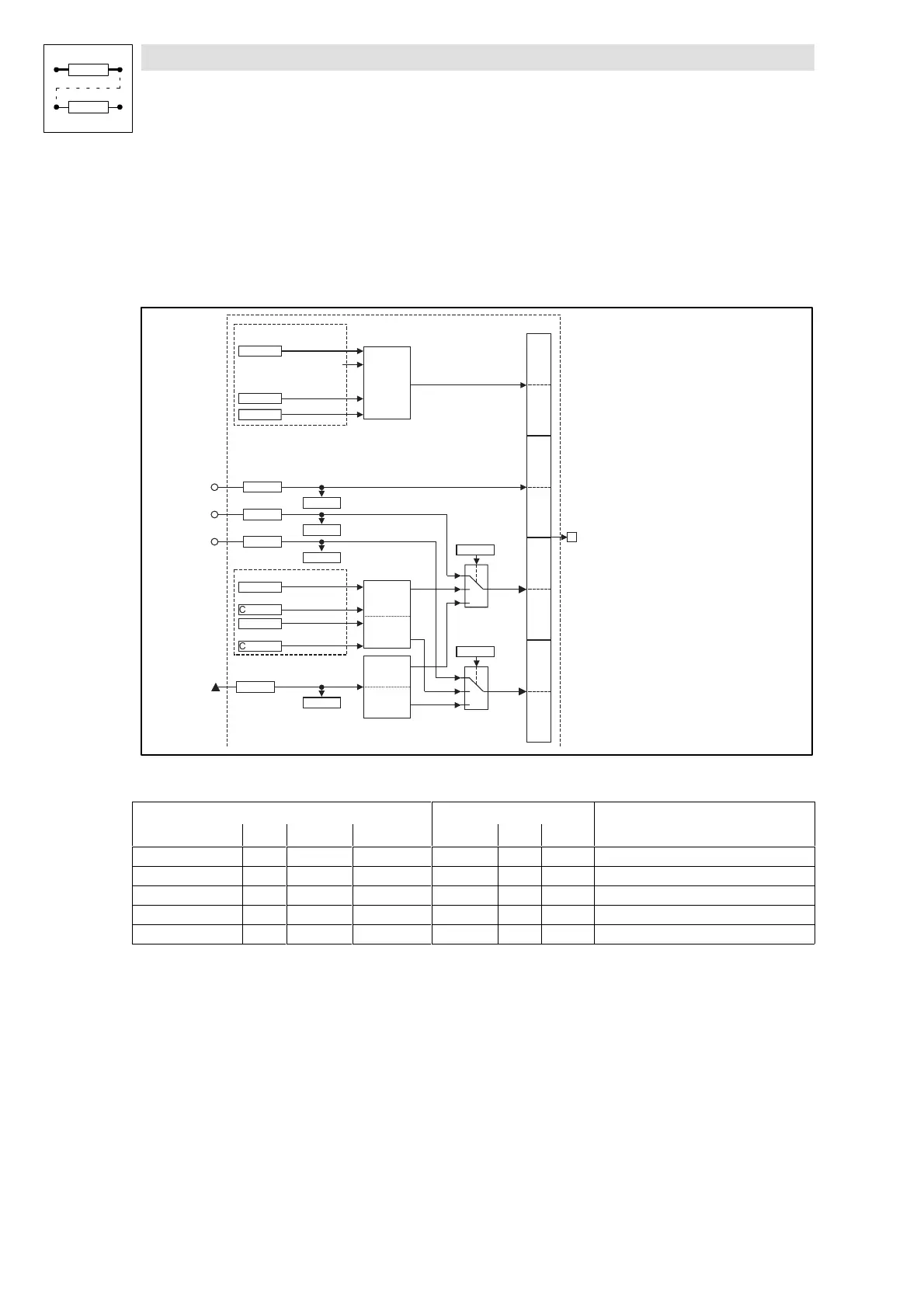

Fig. 7-10 Automation interface ( AIF-OUT )
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AIF-OUT.W1 a C0858/1 dec [%] C0850/1 1 1000 +100 % = +16384
AIF-OUT.W2 a C0858/2 dec [%] C0850/2 1 1000 +100 % = +16384
AIF-OUT.W3 a C0858/3 dec [%] C0850/3 1 1000 +100 % = +16384
AIF-OUT.D1 ph C0859 abs [inc] C0851 4 1000 1 revolution = 65536
AIF-OUT.D2 ph C1196 abs [inc] C1195 4 1000 1 revolution = 65536
