Function block library
7-98

SHB9300CRV EN 2.0
7.6.27.3 Characteristic with four co-ordinates
Set C0960 = 3.
y
CURVE1-OUT
x
CURVE1-IN
C0961
C0962
C0963
C0964
C0965 C0966 100%
-C0963
-C0961
-C0962
-C0964
-C0965-C0966
-100%
y0
y2
y1
y100
x1 x2

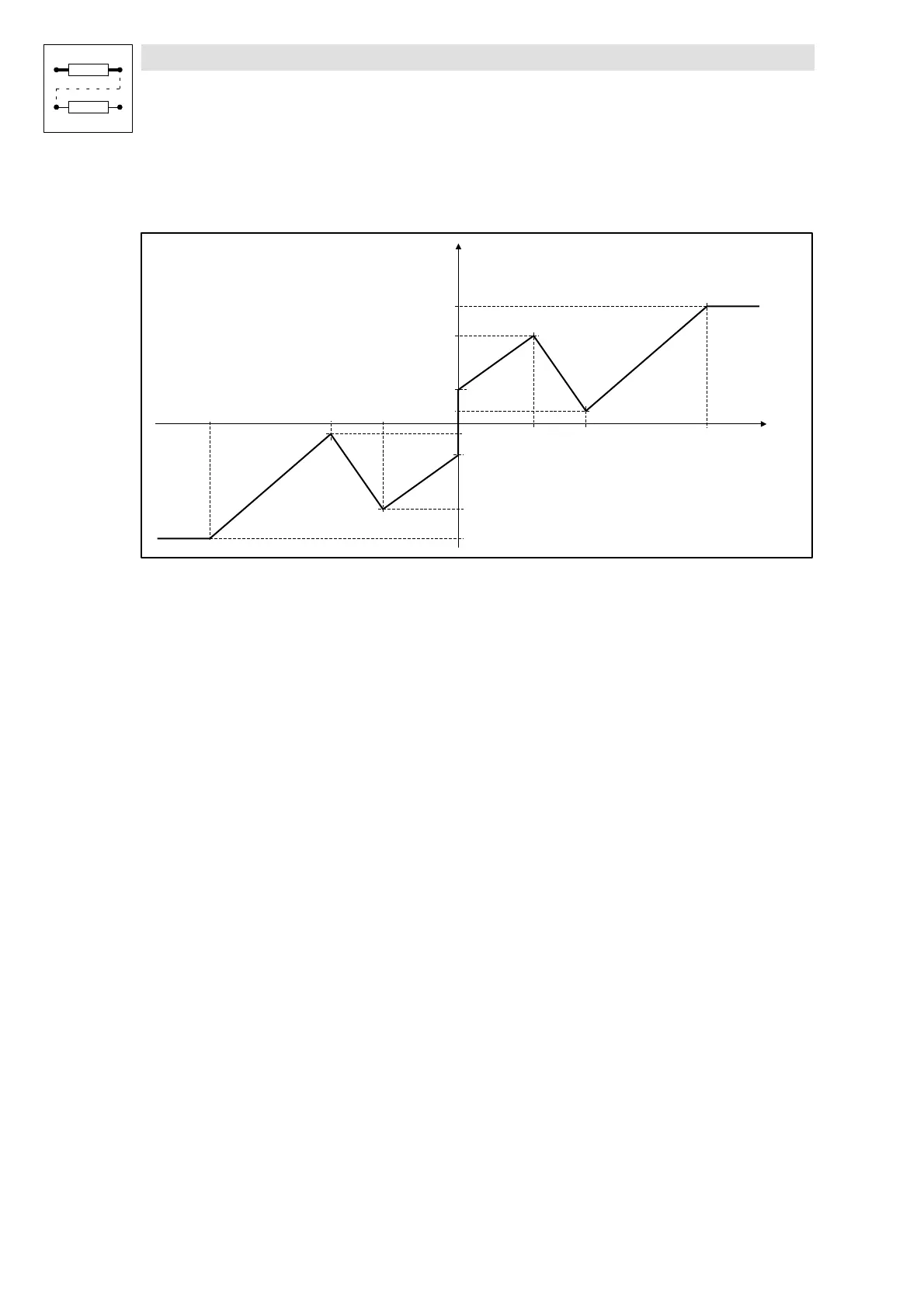

Fig. 7-69 Line diagram characteristic with four co-ordinates
