Lenze 9325 User Manual

Function block library
7-41

SHB9300CRV EN 2.0

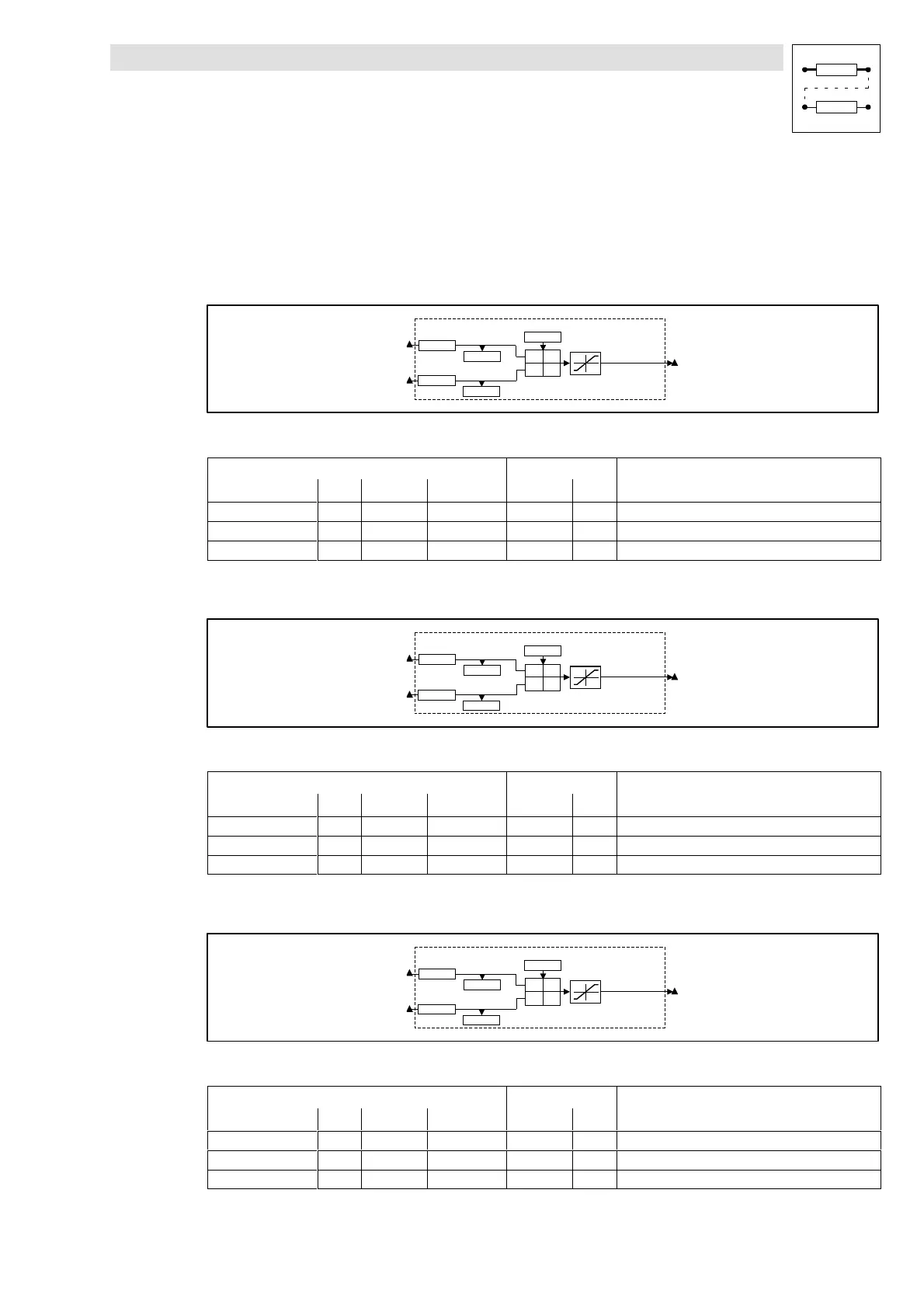

7.6.10 Arithmetic block (ARITPH)
Purpose
The FB ARITPH calculates a phase output signal from two phase input signals.
ARITPH1
+
-
*
/
C1010
x
y
ARITPH1
ARITPH1-OUT
C1012/1
± 2
30
-1
C1012/2
ARITPH1-IN1
ARITPH1-IN2
C1011/1
C1011/2
ARITPH-Modus
Fig. 7-29 Function block ARITPH1
Signal
Source Note
Name Type DIS DIS format CFG List
ARITPH1-IN1 ph C1012/1 dec [inc] C1011/1 3 -
ARITPH1-IN2 ph C1012/2 dec [inc] C1011/2 3 -
ARITPH1-OUT ph - - - -
ARITPH2
+
-
*
/
C1020
x
y
ARITPH2
ARITPH2-OUT
C1022/1
± 2
30
-1
C1022/2
ARITPH2-IN1
ARITPH2-IN2
C1021/1
C1021/2
ARITPH-Modus
Fig. 7-30 Function block ARITPH2
Signal
Source Note
Name Type DIS DIS format CFG List
ARITPH2-IN1 ph C1022/1 dec [inc] C1021/1 3 -
ARITPH2-IN2 ph C1022/2 dec [inc] C1021/2 3 -
ARITPH2-OUT ph - - - -
ARITPH3
+
-
*
/
C1025
x
y
ARITPH3
ARITPH3-OUT
C1027/1
± 2
30
-1
C1027/2
ARITPH3-IN1
ARITPH3-IN2
C1026/1
C1026/2
ARITPH-Modus
Fig. 7-31 Function block ARITPH3
Signal
Source Note
Name Type DIS DIS format CFG List
ARITPH3-IN1 ph C1027/1 dec [inc] C1026/1 3 -
ARITPH3-IN2 ph C1027/2 dec [inc] C1026/2 3 -
ARITPH3-OUT ph - - - -
