Lenze 9325 User Manual

Function block library
7-158

SHB9300CRV EN 2.0

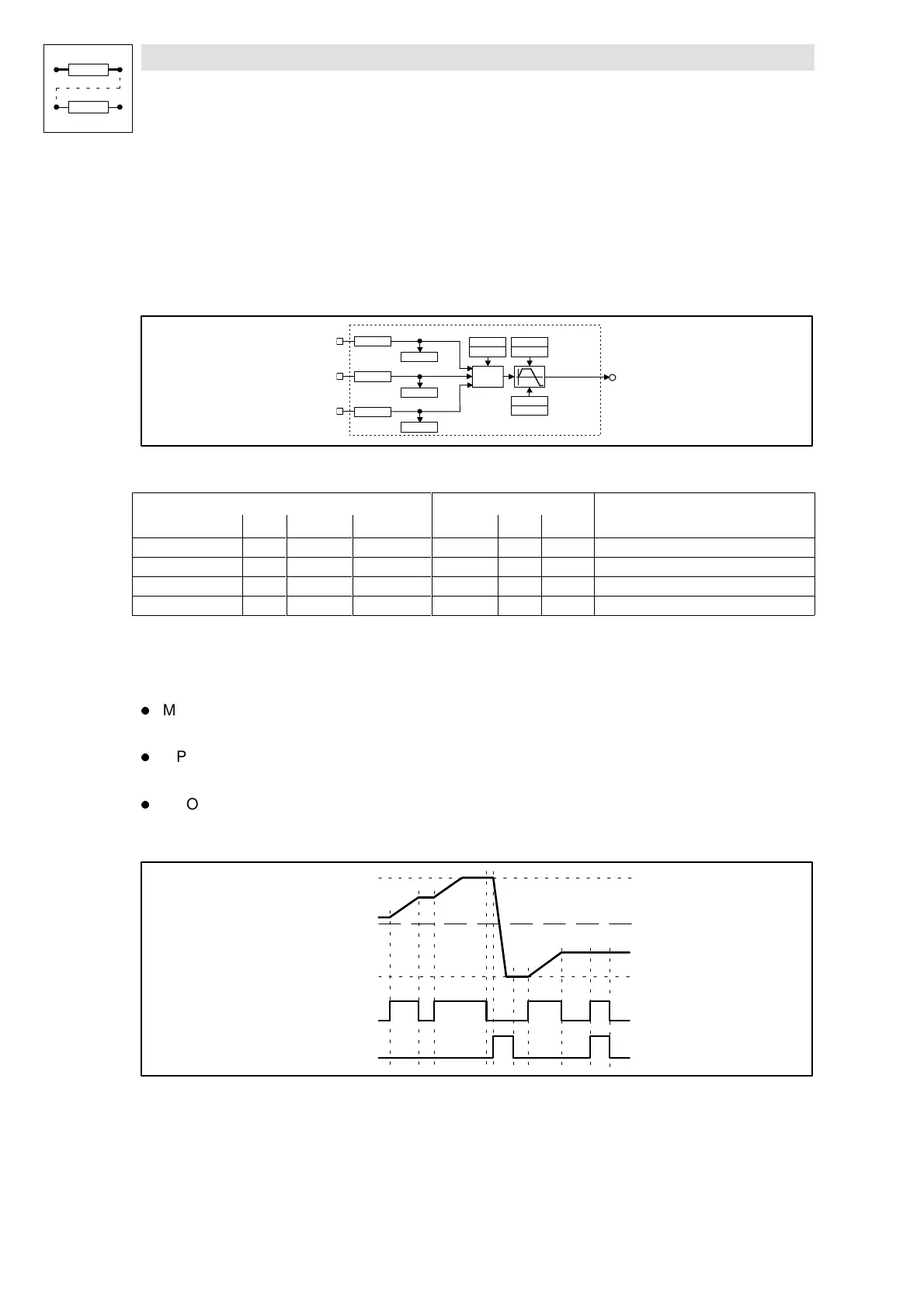

7.6.49 Motor potentiometer (MPOT)
Purpose
The FB replaces a hardware motor potentiometer.
The motor potentiometer is used as an alternative setpoint source which is triggered by two
terminals.
C0260
C0262
MPOT1
MPOT1-OUTMPOT
CRTL
C0269/1
C0269/2
C0269/3
MPOT1-DOWN
MPOT1-INACT
MPOT1-UP
C0264
C0263
C0261
C0267/1
C0268
C0267/2
C0265
Fig. 7-117 Motor potentiometer (MPOT1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
MPOT1-UP d C0269/1 bin C0267/1 2 1000 -
MPOT1-INACT d C0269/3 bin C0268 2 1000 -
MPOT1-DOWN d C0269/2 bin C0267/2 2 1000 -
MPOT1-OUT a - - - - -
Function
Control of the motor potentiometer:
l MPOT1-UP = HIGH
– The motor potentiometer approaches its upper limit.
l MPOT1-DOWN = HIGH
– The motor potentiometer approaches its lower limit.
l MPOT1-UP = LOW and MPOT1-DOWN = LOW or
MPOT1-UP = HIGH and MPOT1-DOWN = HIGH:
– The motor potentiometer does not change its output signal.
Tir
Tir
Tir
Tif
MPOT1-UP
MPOT1-DOWN
C0260
C0261
0
+
-
MPOT1-OUT
Fig. 7-118 Control signals of the motor potentiometer
Another digital input (MPOT1-INACT) exists apart from the two digital inputs MPOT1-UP and
MPOT1-DOWN. The motor potentiometer function can be activated or deactivated with the input
MPOT1-INACT. Logic 1 at this input activates the motor potentiometer function. The input
MPOT1-INACT has priority over the inputs MPOT1-UP and MPOT1-DOWN.
