Function block library
7-183

SHB9300CRV EN 2.0

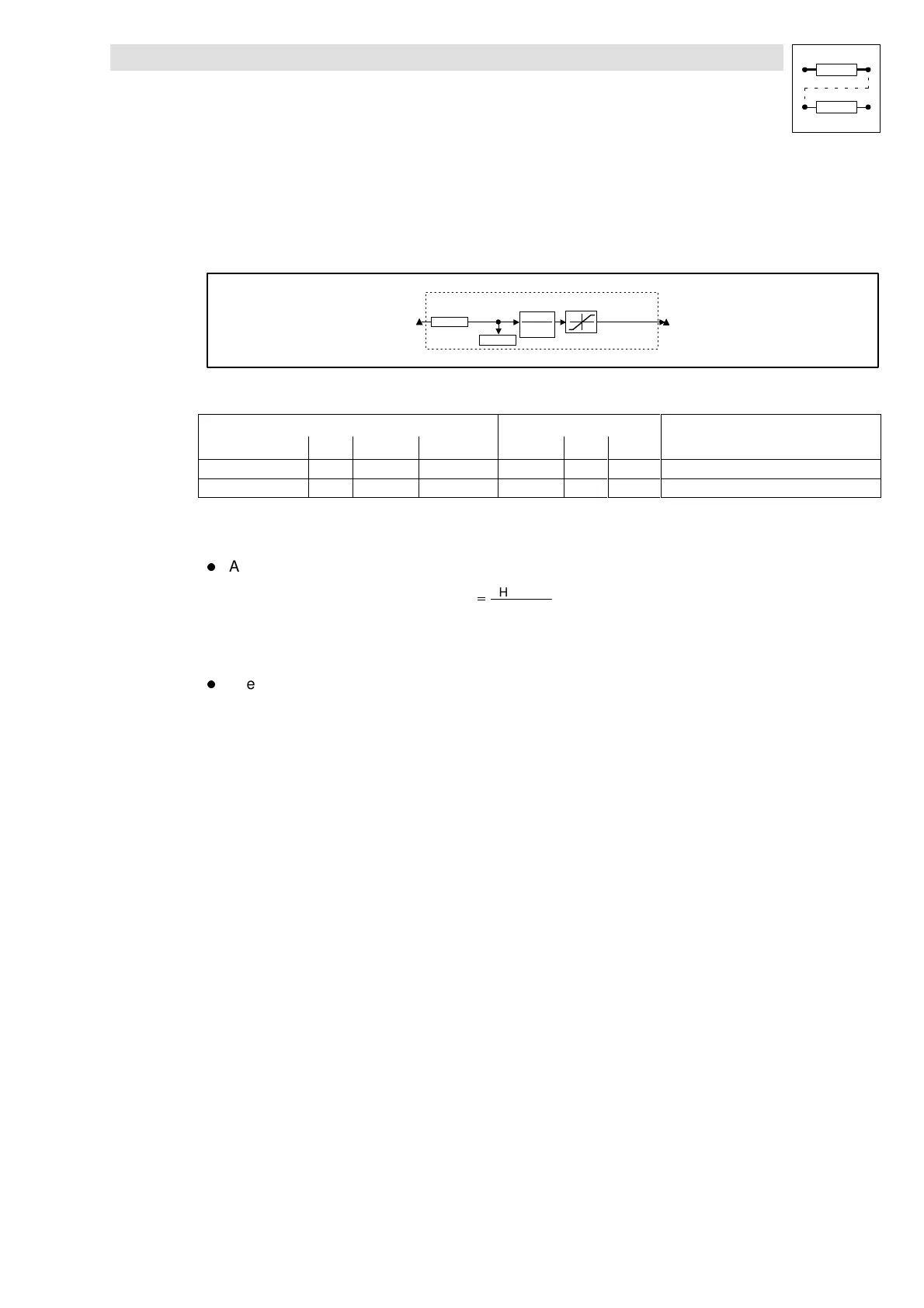

7.6.59 Signal adaptation for phase signals (PHDIV)
Purpose
Division or multiplication of phase signals as a power of two.
C0997
PHDIV1
PHDIV1-OUT
PHDIV1-IN
C0996
C0995
1
2
±
32000
Revolution
Fig. 7-147 Signal adaptation for phase signals (PHDIV1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
PHDIV1-IN ph C0997 dec [inc] C0996 3 1000
PHDIV1-OUT ph - - - - - 65536 inc = one encoder revolution
Function
l Arithmetic function:
PHDIV1-OUT

PHDIV1-IN
2
C0995
– positive values in C0995 result in a division
– negative values in C0995 result in a multiplication
l The output value is limited to ±32000 encoder revolutions.
– If the limit is exceeded, the output is kept at the limit value.
