7.6.30 Controller control (DCTRLC)
Purpose
Set certain controller states (e. g. trip, trip reset, quick stop or controller inhibit).
C 135.B 3
AIF-CTRL.B3
CAN-CTRL.B3
≥1
C 0870/2
DCTRL-CINH1
C 0878/1
C 0870/1
C 0871
DCTRL-TRIP-SET
C 135.B 8
AIF-CTRL.B8
CAN-CTRL.B8
≥1
C 135.B 9
AIF-CTRL.B9
CAN-CTRL.B9
≥1
C 135.B 10
AIF-CTRL.B10
CAN-CTRL.B10
≥1
C 135.B 11
AIF-CTRL.B11
CAN-CTRL.B11
≥1
C 0876
DCTRL-TRIP-RESET
DCTRL
QSP
DISABLE
TRIP-SET
TRIP-RESET
CINH
DCTRL-CINH2
C 0878/2
C 0878/3
C 0878/4
X5/28
DCTRL-IMP
DCTRL-CINH
DCTRL-W ARN
DCTRL-M ESS
>
DCTRL-CW /CCW
DCTRL-NACT=0
DCTRL-TRIP
DCTRL-RDY
DCTRL-STAT*1
DCTRL-STAT*2
DCTRL-STAT*4
DCTRL-STAT*8
DCTRL-QSP
≥1
DCTRL-FAIL
DCTRL-INIT
C 0135
C 0136/1
16

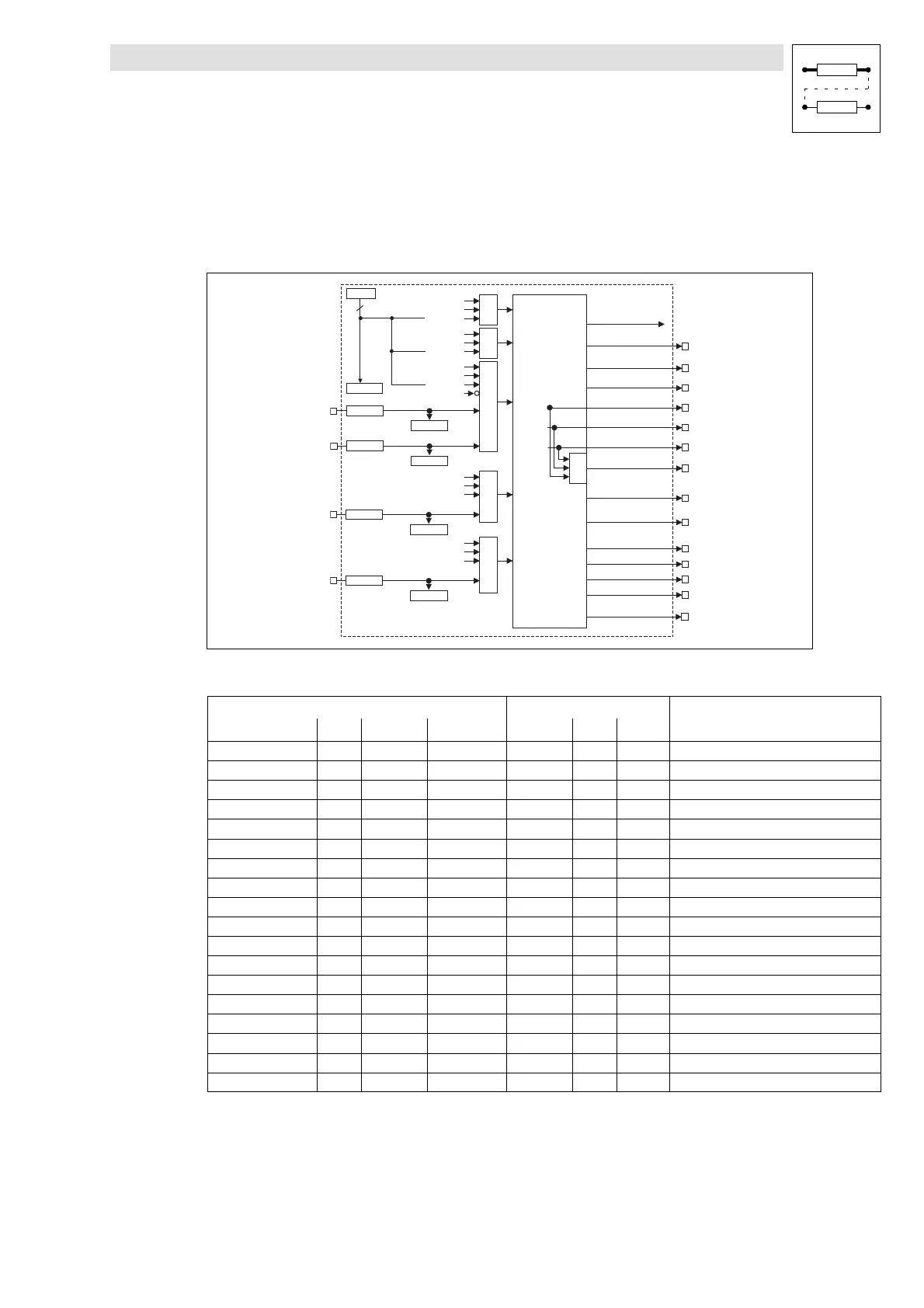

Fig. 7-72 Controller control (DCTRL)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
DCTRL-CINH1 d C0878/1 bin C0870/1 2 1000 HIGH = Inhibit controller
DCTRL-CINH2 d C0878/2 bin C0870/2 2 1000 HIGH = Inhibit controller
DCTRL-TRIP-SET d C0878/3 bin C0871 2 54 HIGH = Error message EEr
DCTRL-TRIPRESET d C0878/4 bin C0876 2 55 LOW-HIGH transition = Trip reset
DCTRL-RDY d - - - - - HIGH = Ready for operation
DCTRL-CINH d - - - - - HIGH = Controller reset
DCTRL-IMP d - - - - - HIGH = High-ohmic power end stages
DCTRL-TRIP d - - - - - HIGH = Error active
DCTRL-WARN d - - - - - HIGH = Warning active
DCTRL-MESS d - - - - - HIGH = Message active
DCTRL-FAIL d - - - - - -
DCTRL-CW/CCW d - - - - - LOW = CW rotation, HIGH = CCWrotation
DCTRL-NACT=0 d - - - - - HIGH = Motor speed < C0019
DCTRL-STAT*1 d - - - - - General status (binary coded)
DCTRL-STAT*2 d - - - - - General status (binary coded)
DCTRL-STAT*4 d - - - - - General status (binary coded)
DCTRL-STAT*8 d - - - - - General status (binary coded)
DCTRL-INIT d - - - - - -
