7.6.34 Digital frequency processing (DFSET)
Purpose
Conditions the digital frequency for the controller. Input of the stretch factor, gearbox factor and the
speed or phase trimming.
*
a
b
b
a
*
a
b
b
a
+
+
1
0
+
+
C 0537
C 0536/2
C 0536/1
C 0033
C 0533
C 0530
C 0252
C 0536/3
C 0538/2
C 0539
DFSET
DFSET-NOUT
+
-
DFSET-A-TRIM
DFSET-N-TRIM
D F S E T -R A T -D IV
DFSET-RESET
DFSET-IN
DFSET-PSET
DFSET-VP-DIV
DFSET-PO UT
DFSET-SET
C 0538/3
+
+
C 0253
C 0531
C 0535
C 0532
2
1
2
1
E4
E5
X5
X5
X9/6,7
MCTRL-PHI-ACT
C 0538/1
DFSET-0-PULSE
DFSET-ACK
C 0525
C 0522
C 0524
C 0521
C 0520
C 0527
C 0526
C 0523
C 0534
*
C 0529
C 0528/1
C 0528/2
CTRL
DFSET-PSET2
C 1258
DFSET-N-TRIM2
C 1255
+
+
C 0429

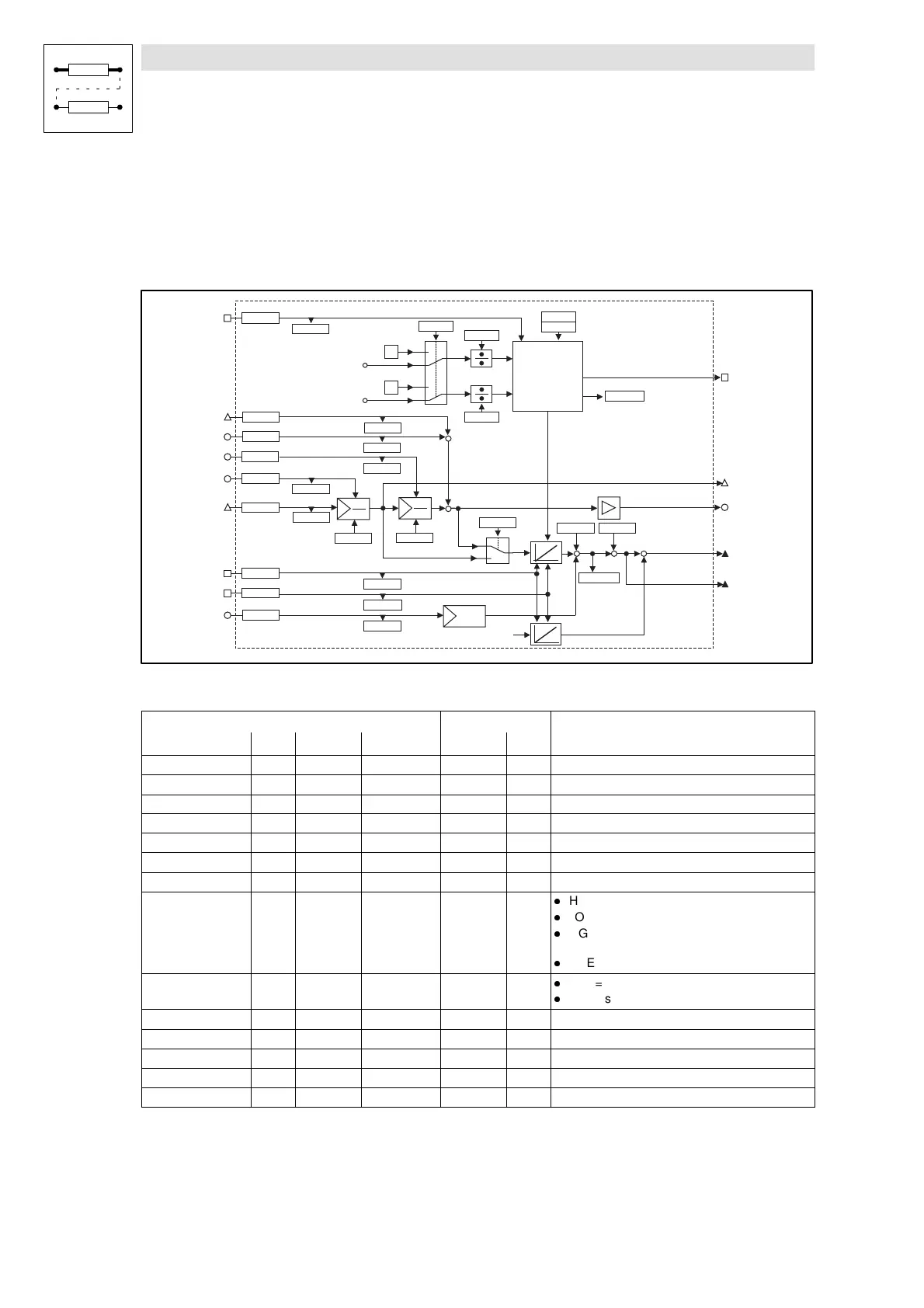

Fig. 7-86 Digital frequency processing (DFSET)
Signal
Source Note
Name Type DIS DIS format CFG List
DFSET-IN phd C0539 dec [rpm] C0520 4 Speed/Phase setpoint
DFSET-N-TRIM a C0537 dec [%] C0524 1 Speed trimming in [%] of C0011
DFSET-N-TRIM2 phd C1258 dec [rpm] C1255 4 Speed trimming in [rpm] of C0011
DFSET-A-TRIM a C0536/3 dec [inc] C0523 1 Phase trimming 100% = 16384 inc
DFSET-VP-DIV a C0536/1 dec C0521 1 Numerator stretch factor 100 % = 16384 inc
DFSET-RAT-DIV a C0536//2 dec C0522 1 Numerator gearbox factor 100 % = 16384 inc
DFSET-0-PULSE d C0538/1 bin C0525 2 HIGH = Enabling of zero pulse synchronizing
DFSET-SET d C0538/3 bin C0527 2
l
HIGH = Set phase integrators to equal values
l
LOW-HIGH edge sets DFSET-PSET = 0
l
HIGH-LOW edge sets DFSET-PSET = momentary
value of MCTRL-PHI-SET
l
DFSET-SET has a higher priority than DFSET-RESET
DFSET-RESET d C0538/2 bin C0526 2
l
HIGH = sets position difference = 0
l
HIGH = sets DFSET-PSET and DFSET-PSET2 = 0
DFSET-NOUT a - - - - in [%] of nmax (C0011)
DFSET-POUT phd - - - - Speed/Phase setpoint
DFSET-PSET ph - - - - Contouring error for phase controller
DFSET-PSET2 ph - - - - Phase setpoint 65536 inc = 1 revolution
DFSET-ACK d - - - - HIGH = Synchronizing is performed
