Function block library
7-161

SHB9300CRV EN 2.0

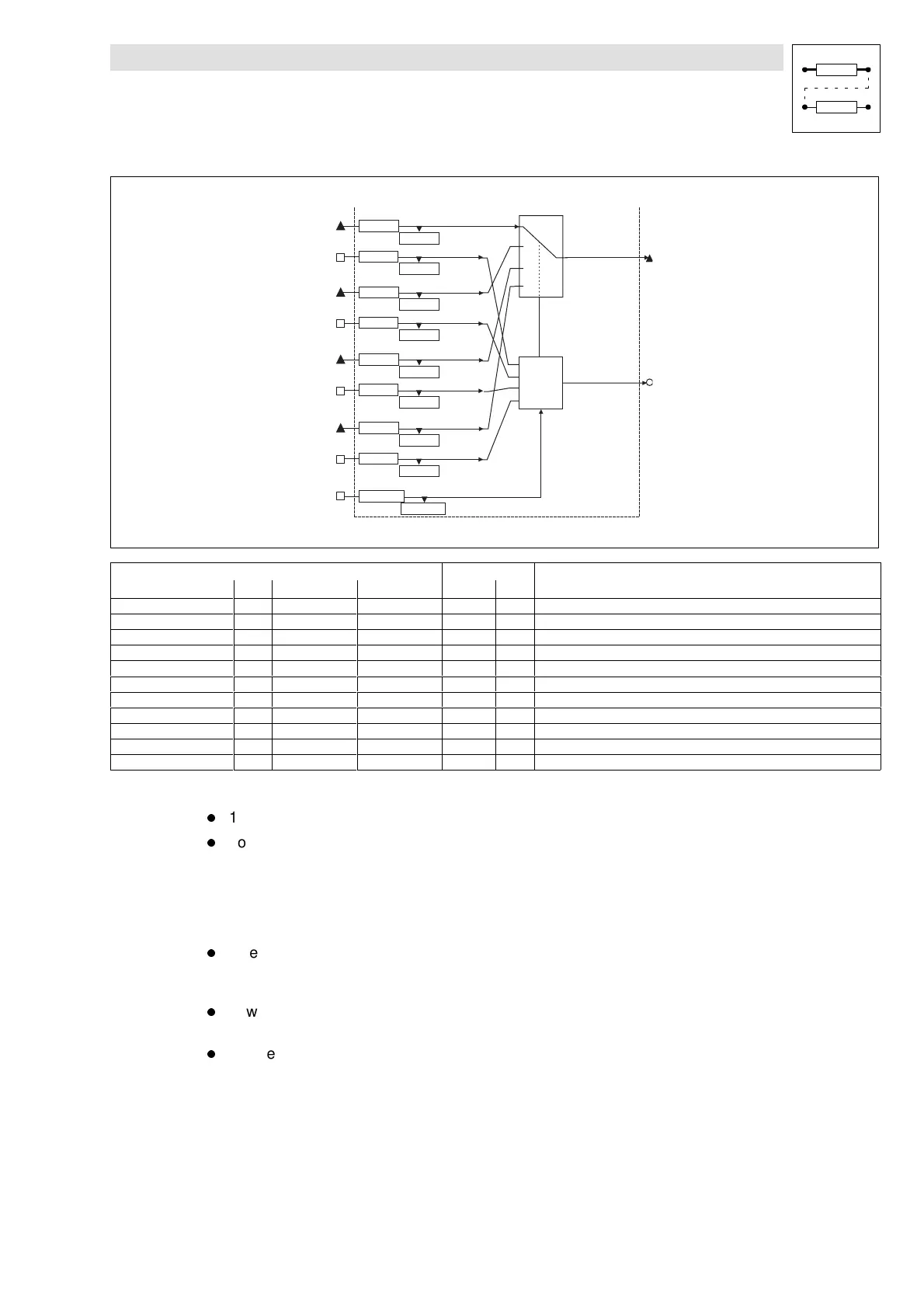

M SEL2
M SEL2-O UT
M SEL2-M 1PO S
M SEL2-M VAL
C 1396/1
C 1397/1
M SEL2-EN-M 1
C 1394/6
C 1395/6
C 1396/2
C 1397/2
M SEL2-EN-M 2
C 1394/7
C 1395/7
C 1396/3
C 1397/3
M SEL2-EN-M 3
C 1394/8
C 1395/8
C 1396/4
C 1397/4
M SEL2-EN-M 4
C 1394/9
C 1395/9
M SEL2-LO CK
C 1394/10
C 1395/10
M SEL2-M 2PO S
M SEL2-M 3PO S
M SEL2-M 4PO S
CTRL
Signal Source
Note
Name Type DIS DIS format CFG List
N
o
t
e
MSEL2-EN-M1 d 1395/6 bin 1394/6 2 Activation master value 1
MSEL2-EN-M2 d 1395/7 bin 1394/7 2 Activation master value 2
MSEL2-EN-M3 d 1395/8 bin 1394/8 2 Activation master value 3
MSEL2-EN-M4 d 1395/9 bin 1394/9 2 Activation master value 4
MSEL2-LOCK d 1395/10 bin 1394/10 2 Locking
MSEL2-M1POS ph 1397/1 dec[inc] 1396/1 4 Master phase input 1
MSEL2-M2POS ph 1397/2 dec[inc] 1396/2 4 Master phase input 2
MSEL2-M3POS ph 1397/3 dec[inc] 1396/3 4 Master phase input 3
MSEL2-M4POS ph 1397/4 dec[inc] 1396/4 4 Master phase input 4
MSEL2-OUT ph 13711 - - - Master phase output
MSEL2-MVAL a 13711 - - - Selected master phase input
Function
l 1 out of 4 selection of the master value source
l Locking of a selection
The description is valid for both function blocks. Please observe this for the following description of
the MSEL1.
7.6.50.1 1 out of 4 selection of the master value source
l One master value source can be connected per input MSEL1-DFIN(1...4). The digital input
assigned to MSEL1-EN-M(1...4) must be addressed with a L-H transition. If an input is set, this
setting remains active until another master value source is selected.
l If two or more inputs are selected at the same time, the input with the lowest selection number
will be activated.
l The selected input value is directly connected to the output MSEL1-OUT.
If no input has been selected (inputs MSEL1-EN-M(1...4) = LOW), 0 will be output
7.6.50.2 Locking of a selection
AH levelat theinput MSEL1-LOCKavoids a changeoverto anothersource.Theinput channeloutput
last remains locked until the input level at MSEL1-LOCK is reset to L.
