SCSI MODULE
Logicube Forensic Falcon™ User’s Manual 145

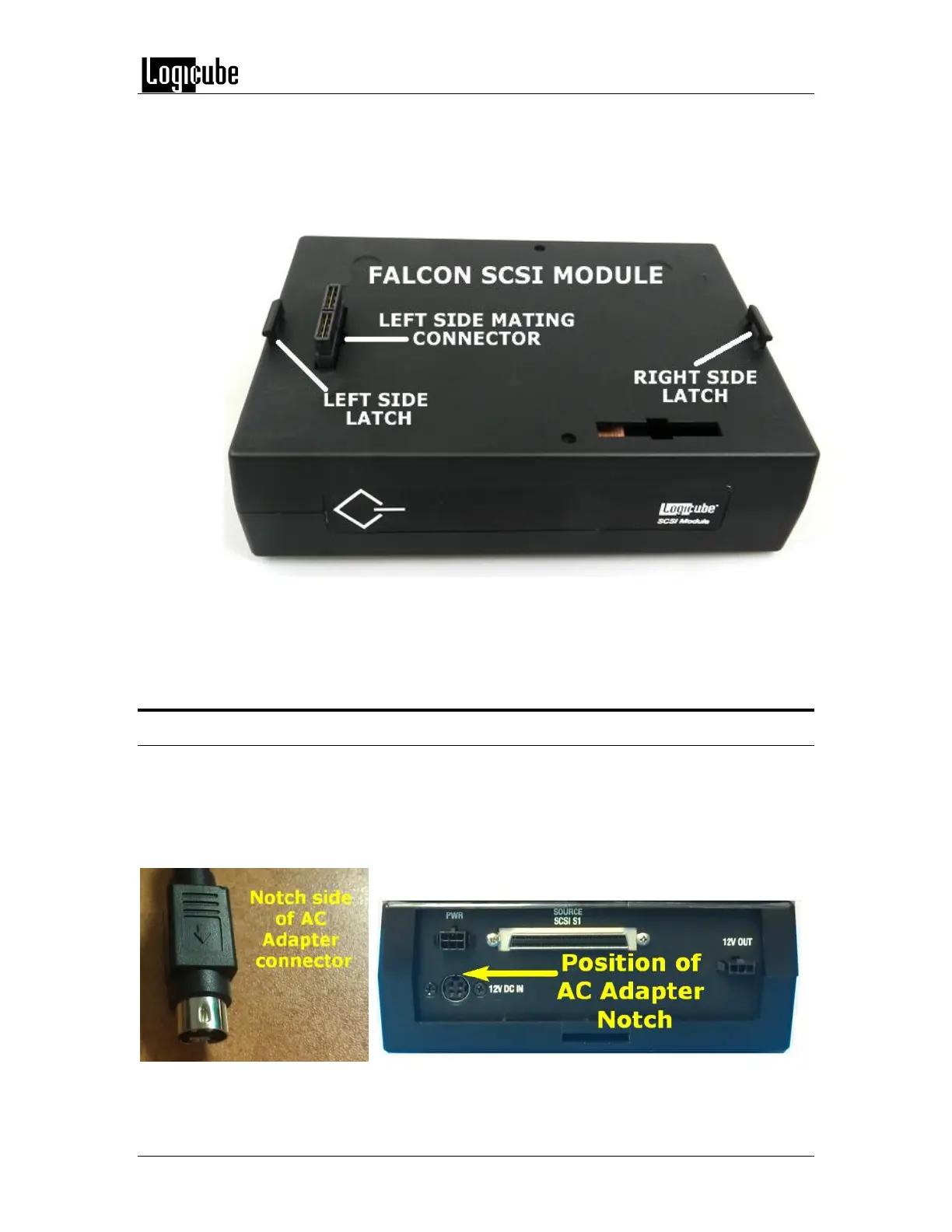

3. Carefully align the Falcon over the SCSI module. With the left side slightly lower
(about a 15 degree angle) connect the left side latch of the SCSI module to the left
side of the Falcon and align the left side mating connector to the open expansion
slot on the Falcon. Next, slowly lower the right side and connect the right side latch
to the Falcon.
4. While holding the Falcon with SCSI module together, carefully turn the entire unit
(Falcon and SCSI module) upside down. Insert the two 2.5” screws on each front and
back side and tighten the screws so the Falcon unit and SCSI module are securely
connected.
13.2 Turning the Falcon with SCSI module on and off
The Falcon and SCSI module each come with a 12V, 12.5A (output DC) power supply that
connects to each device.
Attach one of the included power supplies to the left side of the SCSI module. The power supply
has a ‘notch’ to guide the connection. The notch should be guided to face the top side of the
power port.
