Crane operation
10.4 Operation of the rated capacity limiter
10 - 42 3 302 633 en Operating Instructions GMK5250L
27.09.2017

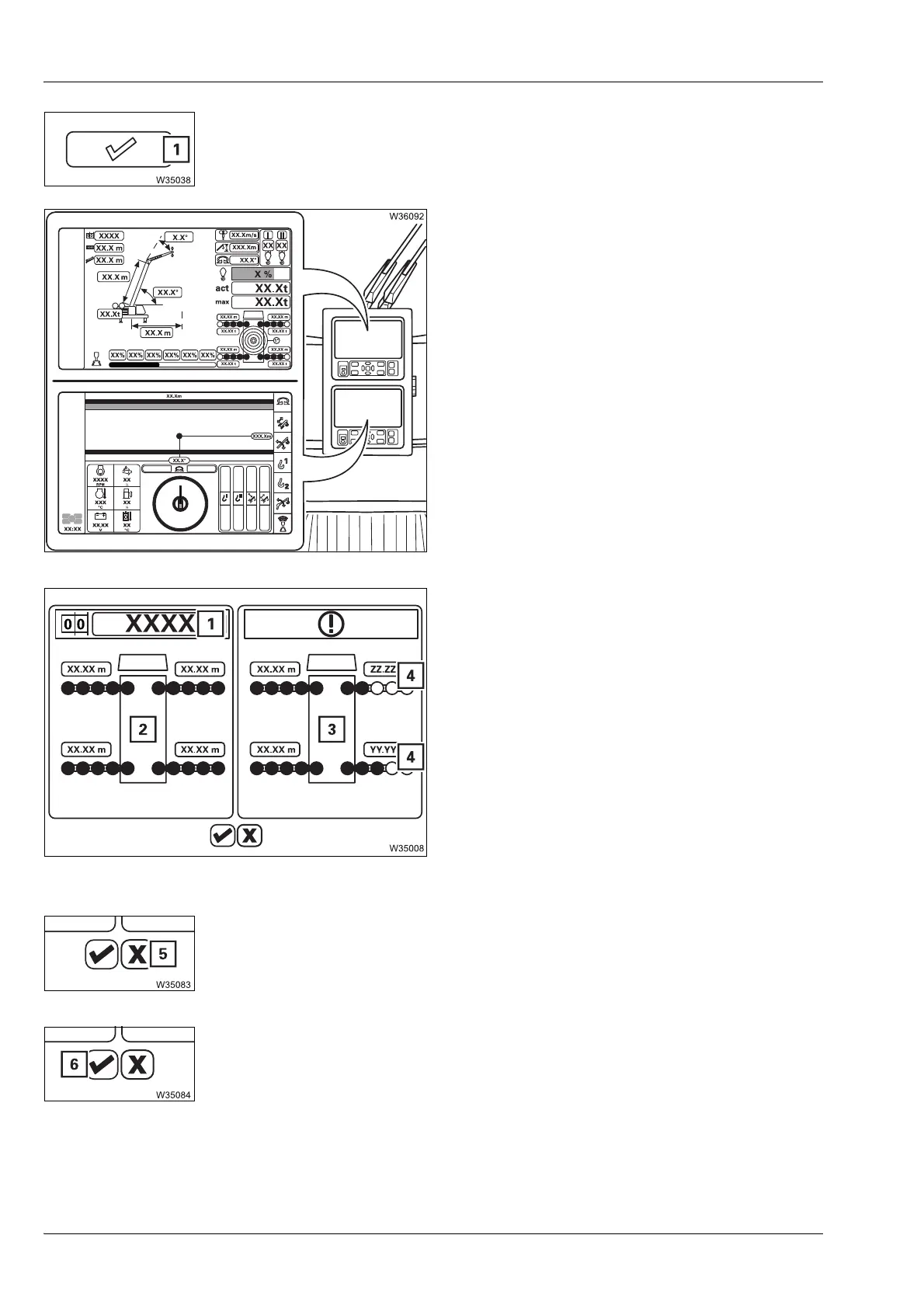

• Select and confirm the symbol (1).
If the rigging mode is permissible
The rigging mode is accepted together with
the display lifting capacity table.
The
RCL display shows the Monitoring menu.
The
CCS display shows the Start menu.
The crane movements are released if there is
no error;
à Checks before operating the crane,
p. 10 - 45.
If a deviation in the outrigger span is detected
A query menu opens.
The display (2) shows the outrigger span
corresponding to the RCL code (1).
The display (3) shows the acquired outrigger
span – deviating outrigger widths (4) are red.
• Check the currently rigged outrigger span.
– If an incorrect outrigger span is rigged
• Select and confirm the symbol (5) – the menu closes and the rigging
mode is not adopted.
• Rig the required outrigger span.
– If the necessary outrigger span is rigged
• Select and confirm the symbol (6).
The rigging mode is accepted.
• Have the outrigger width monitoring checked after finishing
operations.
