Rigging work
11.7 Outriggers – Overview – MAXbase slewing range type
Operating Instructions GMK5250L 3 302 633 en 11 - 33
27.09.2017

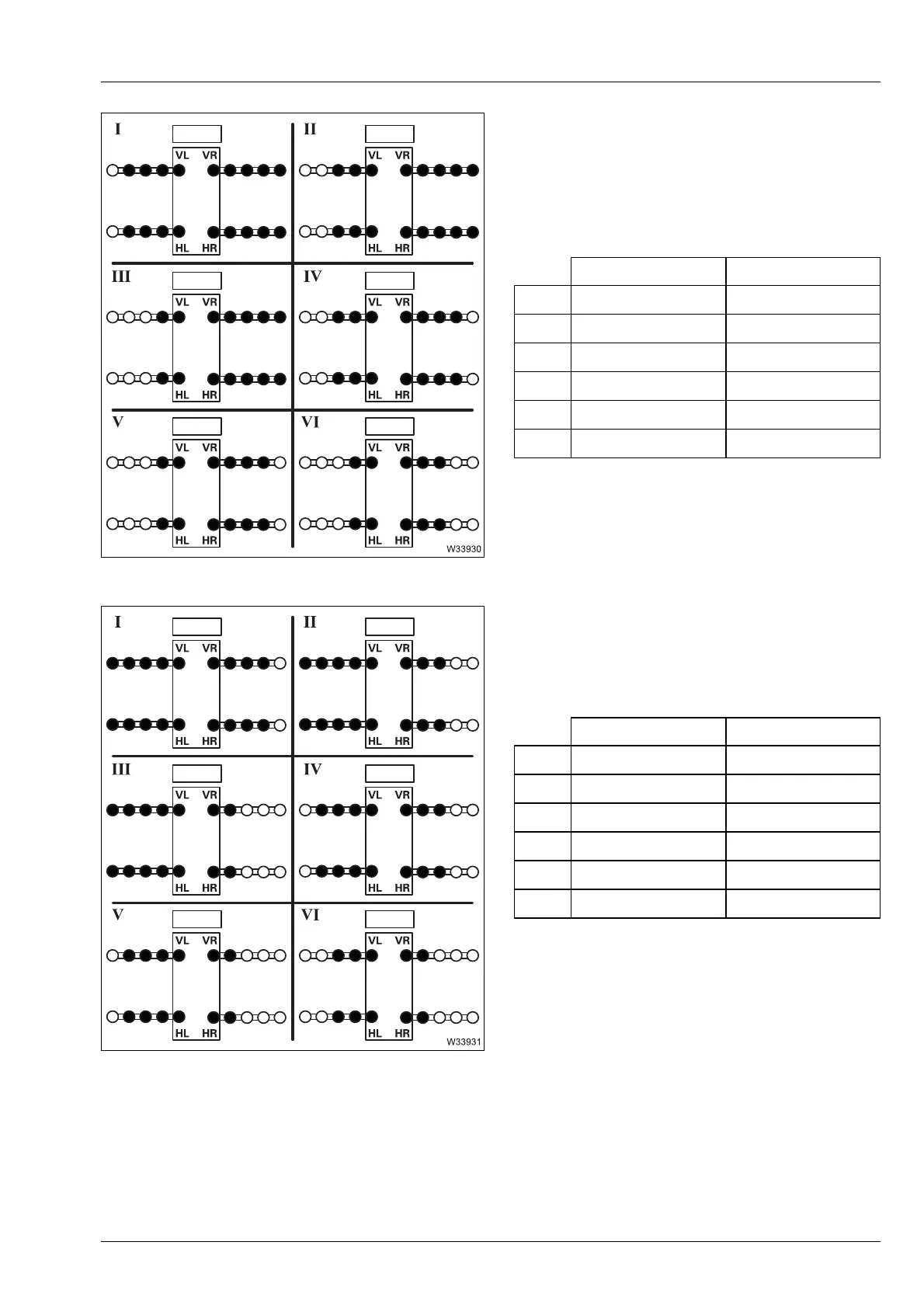

Right / Left
– Right greater than left
The outrigger width is the same at the left and
the same at the right. The table shows the
permissible combinations.
– Left greater than right
The outrigger width is the same at the left and
the same at the right. The table shows the
permissible combinations.
There are no separate lifting capacity tables
for this type. The lifting capacities for the
Right
greater than left
type are enabled in a corre-
spondingly mirrored slewing range;
à Lifting
capacities and slewing ranges for outrigger spans
without separate lifting capacity tables
, p. 10 - 28.
s
FR / RR FL / RL
I
3.900 m (12.8 ft) 3.427 m (11.2 ft)
II
3.900 m (12.8 ft) 2.955 m (9.7 ft)
III
3.900 m (12.8 ft) 2.155 m (7.1 ft)
IV
3.427 m (11.2 ft) 2.955 m (9.7 ft)
V
3.427 m (11.2 ft) 2.155 m (7.1 ft)
VI
2.955 m (9.7 ft) 2.155 m (7.1 ft)
FR / RR FL / RL
I
3.427 m (11.2 ft) 3.900 m (12.8 ft)
II
2.955 m (9.7 ft) 3.900 m (12.8 ft)
III
2.155 m (7.1 ft) 3.900 m (12.8 ft)
IV
2.955 m (9.7 ft) 3.427 m (11.2 ft)
V
2.155 m (7.1 ft) 3.427 m (11.2 ft)
VI
2.155 m (7.1 ft) 2.955 m (9.7 ft)
