7.6.6 Vaporizer Tests (A9)

Here you can check if the vaporizer valves are working correctly.

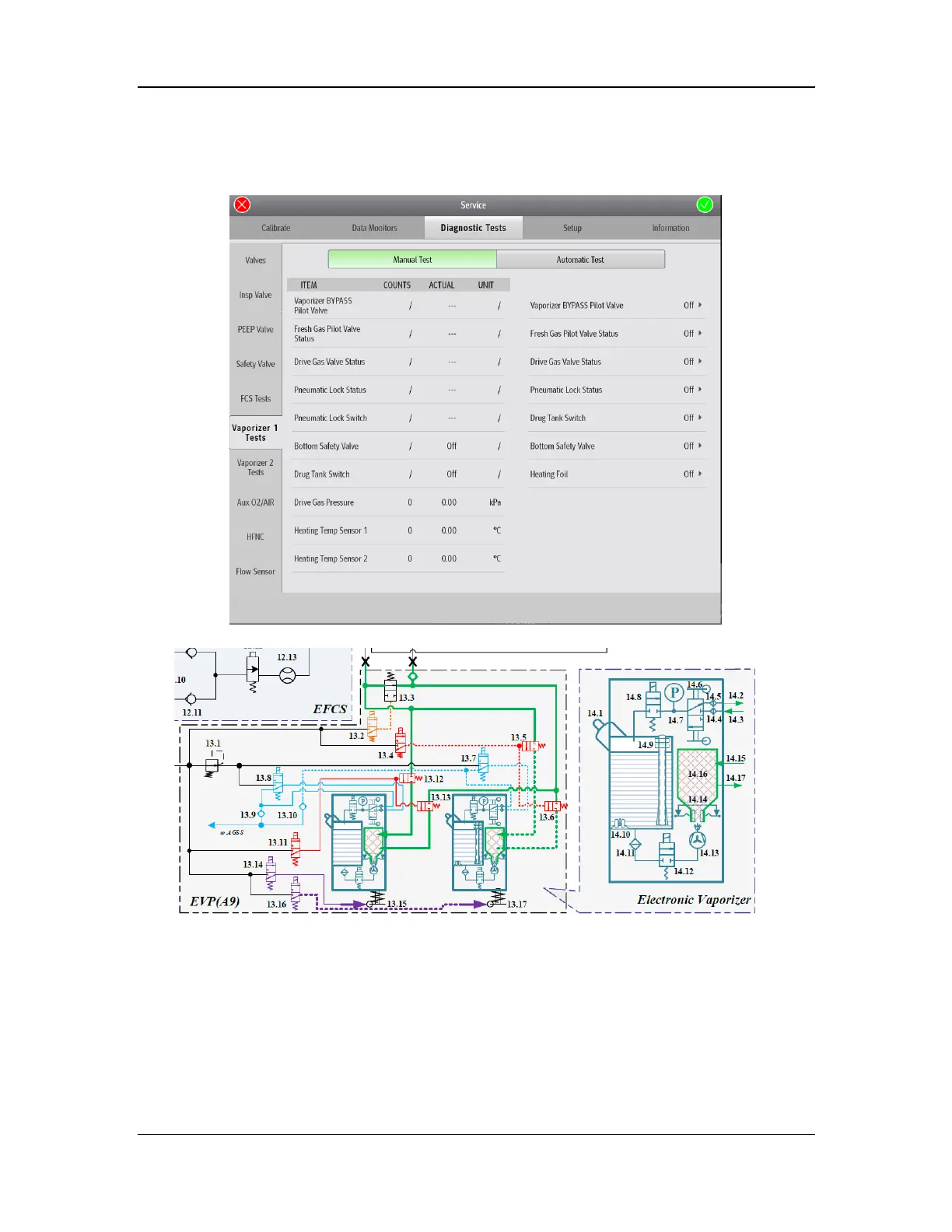

Select Setup > Service > Diagnostic Tests > Vaporizer 1 Test or Vaporizer 2 Test.
