Mindray A9 Service Manual

8-23

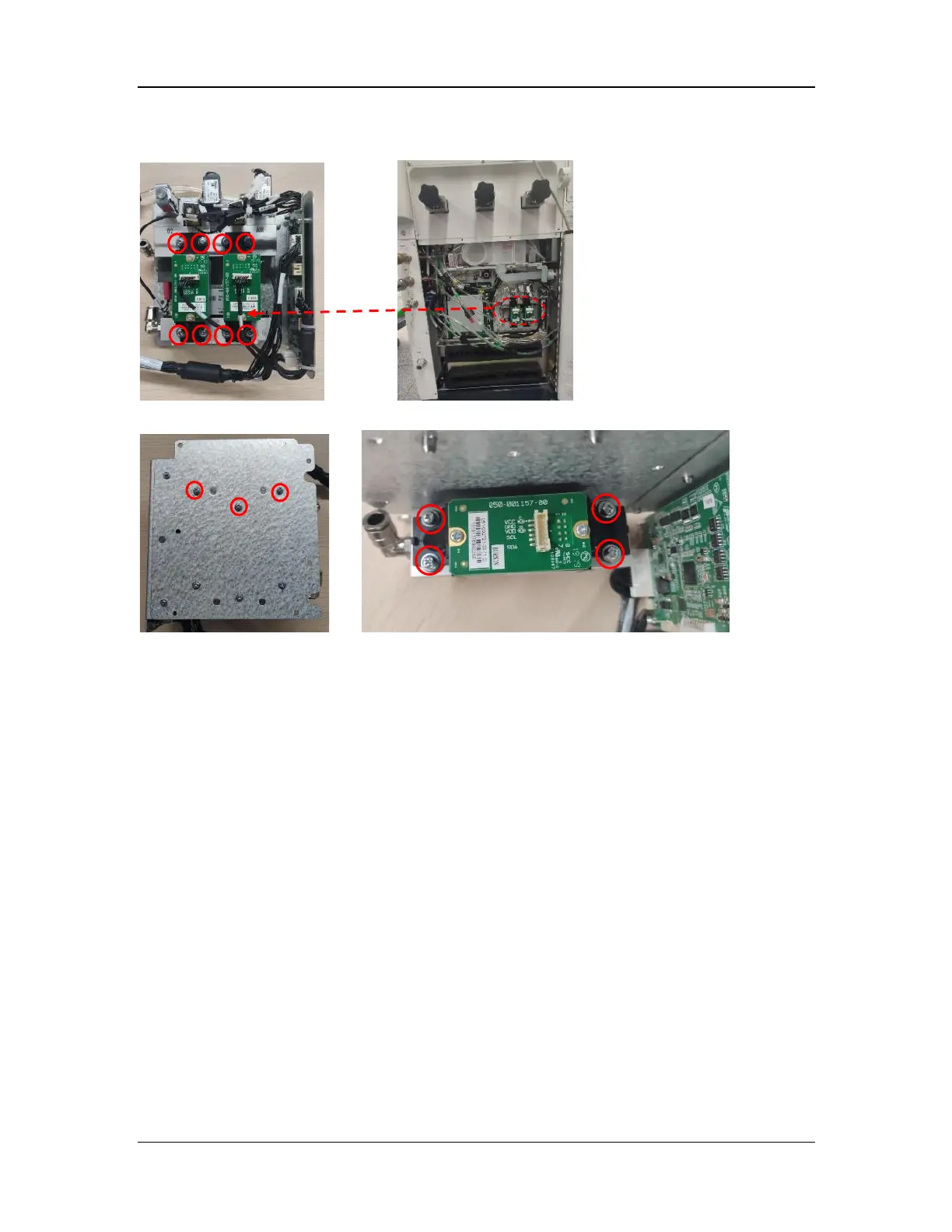

Figure A
Figure B Figure C
8.26 Disassemble the N2O, Air, and O2 Cylinder Yoke
Assemblies
8.26.1 Prepare for Disassembly
8.26.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 Phillips screwdriver
 220 mm torque wrench
 M6 hexagon screw spanner
8.26.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Bleed down the gas pressure inside the anesthesia machine to avoid personal injury or
equipment damage.
 Disconnect all pipeline and cylinder gas supplies.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.26.1.3 Pre-disassembly
1. Refer to 8.1.1Open the Service Door to open the service door.
