System Preparation 3-11
3.5 Connecting a Probe
Press <Freeze> to freeze an image or turn off the power of the system
before connecting / disconnecting the probe. Otherwise, system or
probe failure may occur.
When connecting or disconnecting a probe, place it in a proper
position, to prevent the probe from falling off or becoming damaged.
Hang the probe cable to the hanger located under the control panel to
avoid excessively bending and damage.
Only use the probes provided by Mindray. Aftermarket probes may
result in damage or cause a fire.
If a probe port is not used for a long period of time, please use the dustproof cover to
protect the probe port from dust; otherwise bad contact may result.
3.5.1 Connecting a Probe
The probes, cables and connectors should be in proper operating
order and free from surface defects, cracks and peeling.
Otherwise, electrical shock may result.

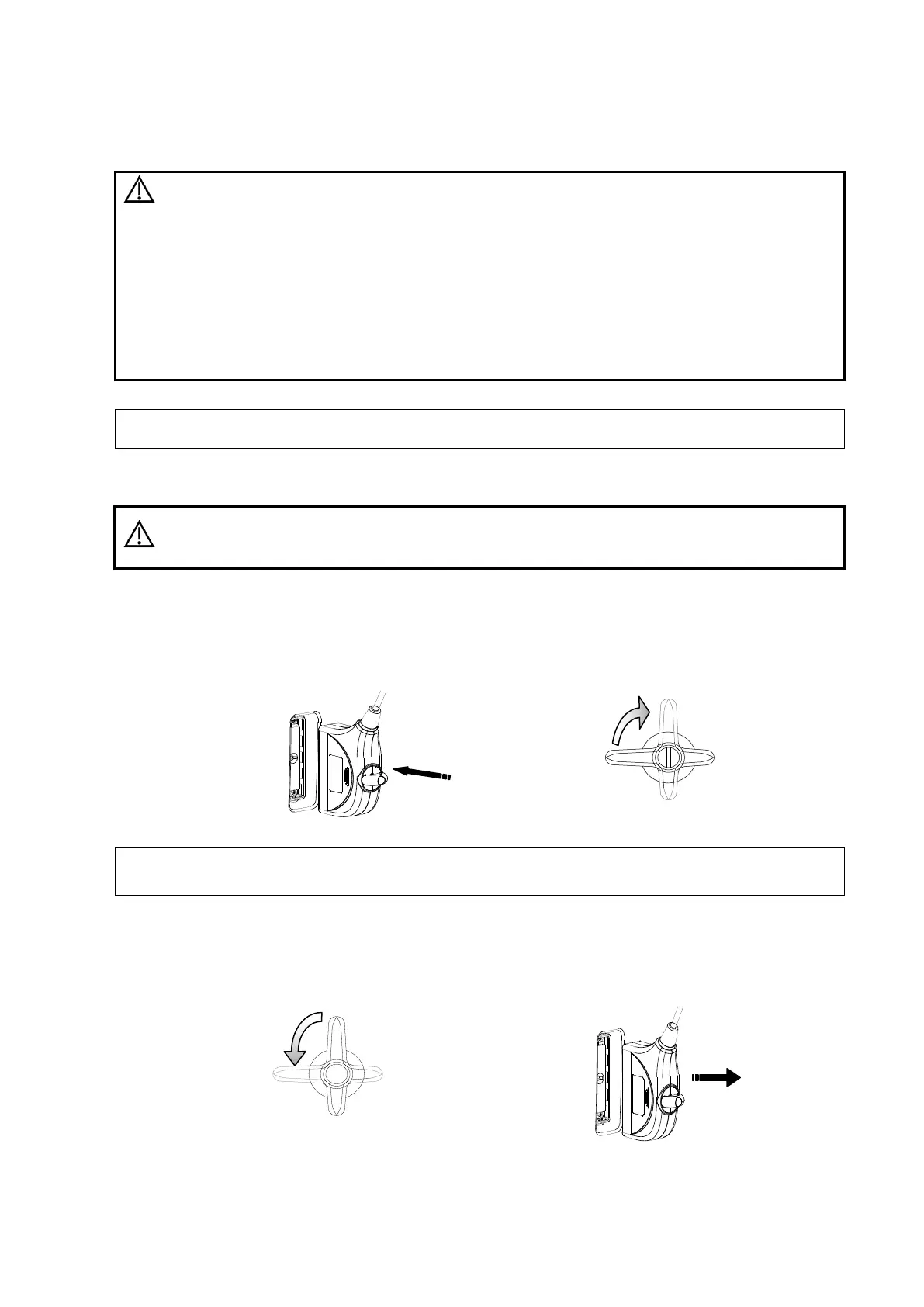

1. Keep the cable end of the transducer to the right side of the system, and insert the connector
into the port of the system, and then press in fully. (Shown as the left figure)
2. Turn the lock handle 90° clockwise to lock it securely. (Shown as the right figure)
3. Place the probe properly to avoid being treaded or wrapping with other devices. DO NOT allow
the probe head to hang free.
Before inserting the connector into the probe port, inspect the connector pin. If the pin is
bent, do not use the probe until it has been inspected / repaired / replaced.
3.5.2 Disconnecting a probe
1. Turn the locking lever 90° counterclockwise to the horizontal position. (Shown in the left figure)
2. Pull the transducer connector straight out vertically (Shown in the figure below).
