Operation panel (FR-DU07)
4.1.3 Change the parameter setting value
4.1.4 Setting dial push
Push the setting dial ( ) to display the set frequency currently set.
Changing example Change the Pr. 1 Maximum frequency .
are displayed ... Why?
appears. ...... Write disable error
appears. ...... Write error during operation
appears. ...... Calibration error
appears. ..... Mode designation error
For details refer to page 236.
REMARKS
⋅ The number of digits displayed on the operation panel (FR-DU07) is four. Only the upper four digits of values can be displayed
and set. If the values to be displayed have five digits or more including decimal places, the fifth or later numerals can not be
displayed nor set.
(Example) When Pr.1
When 60Hz is set, 60.00 is displayed.
When 120Hz is set, 120.0 is displayed. The second decimal places can not be displayed nor set.

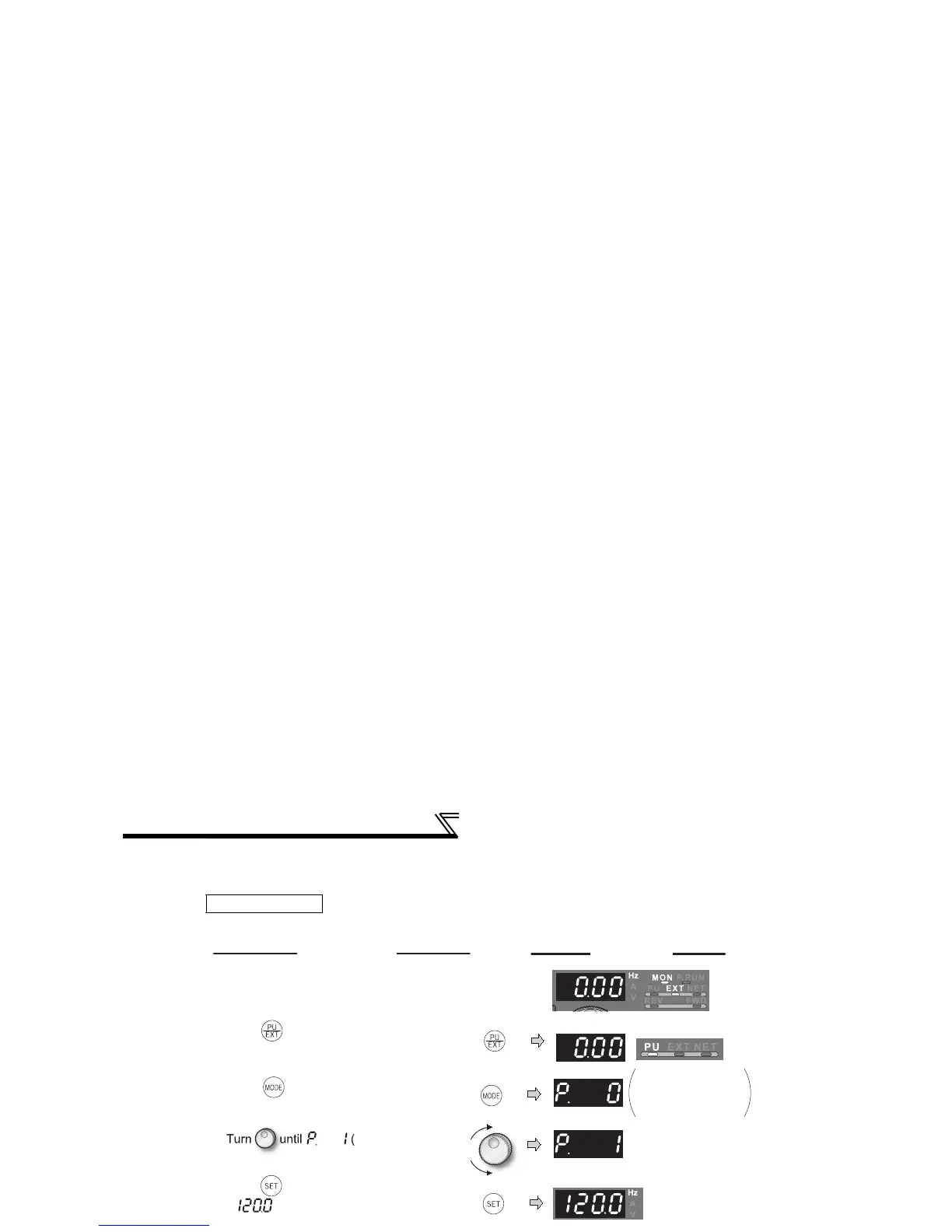

1.Screen at powering on
The monitor display appears.
Display
Operation
3.Press to choose the parameter
setting mode.
4. Pr. 1) appears.
Flicker ··· Parameter setting complete!!
7.Press to set.
5.Press to read the currently set value.
" "(initial value) appears.
6.
Turn to change it to the set
value " ".
PU indication is lit.
2.Press to choose the PU operation
mode.
· Press to show the setting again.
· Press twice to show the next parameter.
· By turning , you can read another parameter.
The parameter
number read
previously appears.
· Press twice to return the monitor to frequency monitor.
to
