Troubleshooting and maintenance instructions Replace the fuses
SD-/SQ series 7 - 3
7.4 Replace the fuses
An error message is issued if a fuse on the interface card for the pneumatically operated gripper hand,
or on the control board, is defective. The error message contains information on which fuse has to be
replaced.
7.4.1 Fuse and error messages
7.4.2 Fuse for pneumatic gripper hand
If you see error message "H0082" replace fuse F1 (rated current: 1.6 A) on card RZ375 for the controller
of the pneumatic gripper hand.
Error code Description Unit Board/Module Fuse
H0082
Fuse for pneumatic gripper hand
defective
CR1DA/DU1A
RZ375 F1 (rated current: 1.6 A)
CR2DA/DU2A
H0083
Fuse of power supply or pneumatic grip-
per hand defective
CR1DA/DU1A TZ801A F3 (rated current: 1.6 A)
CR2DA/DU2A TZ352B F5 (rated current: 1.6 A)
Tab. 7-1:
Fuses
R001495C

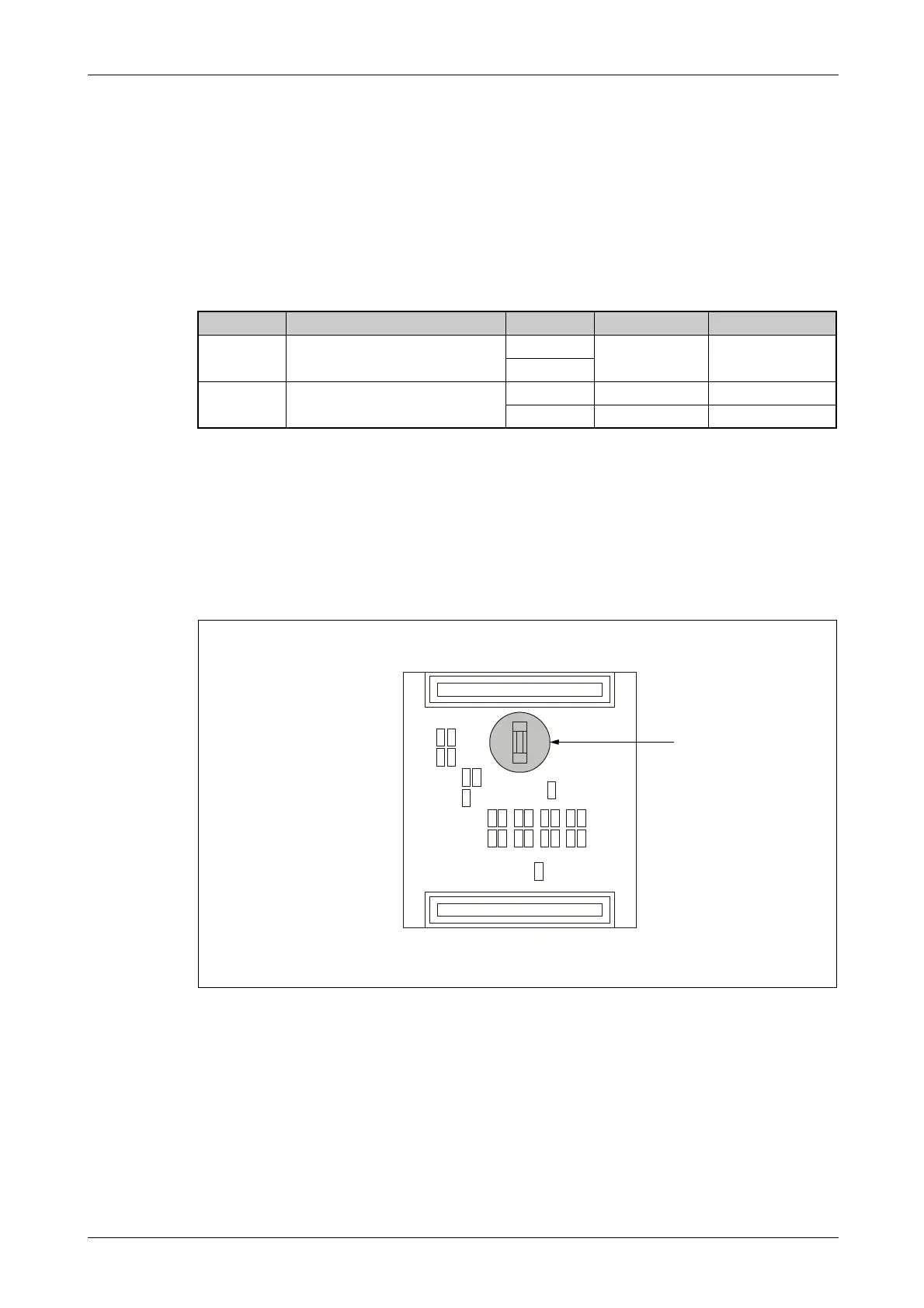

Fig. 7-2:
Fuse for pneumatic gripper hand
