Transport robot arm Installation
3 - 8
3.2.2 RV-3SD/3SDJ and RV-3SQ/3SQJ
Two persons are always required for transport. When transporting, always carry the robot arm at
points
of the base and
of the upper arm. Never carry the robot at the sides or at its covers
because these may become loose and can destroy the robot arm.
E
ATTENTION:
● Two persons are always required to transport the robot arm. The transport locks must not
be removed before transport.
● Always carry the robot arm at holding points and . Never carry the robot arm at the
covers because this may result in damages.
NOTE
Keep the transport locks and their fixing screws in a safe place for any later transport.
R001297E

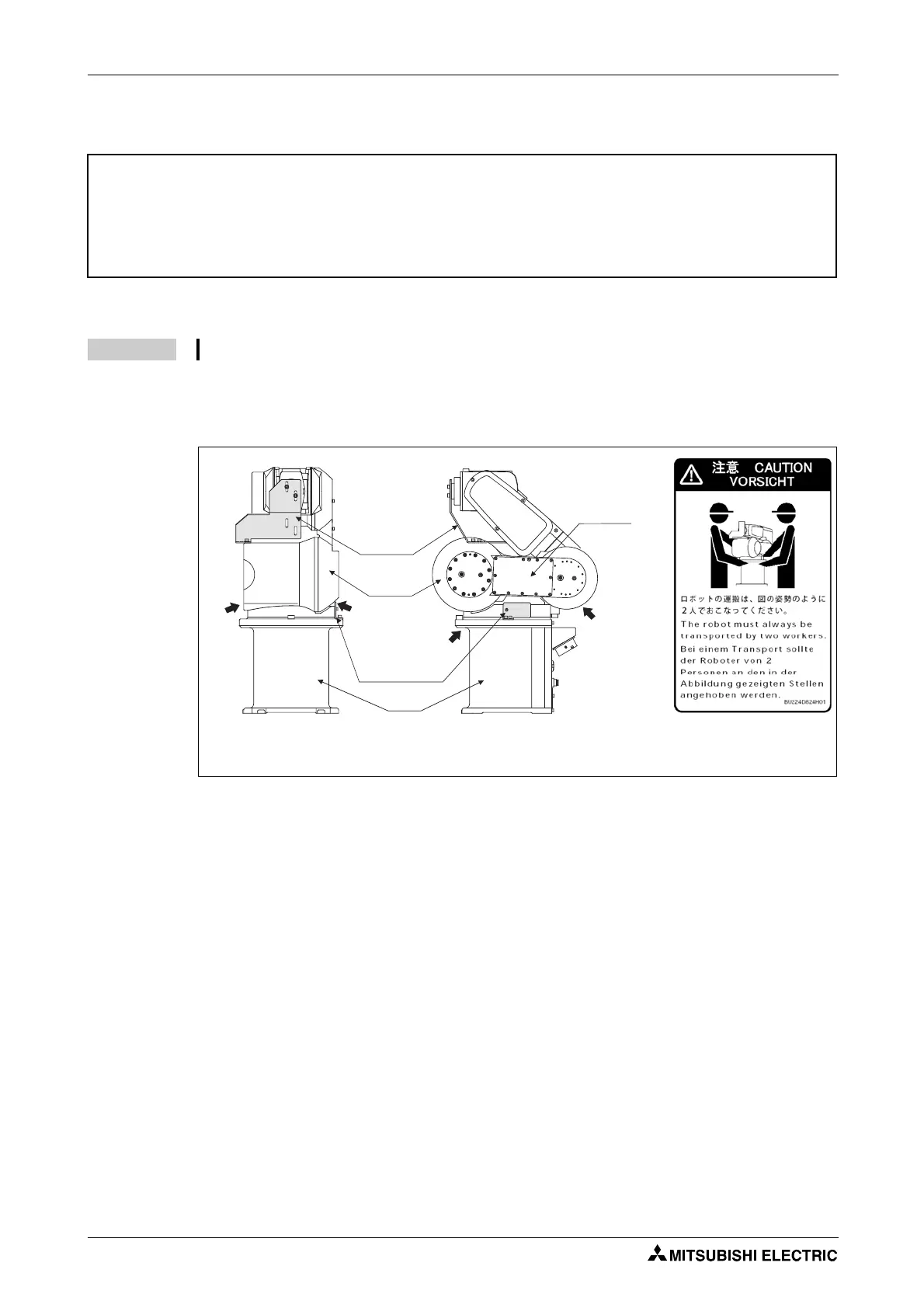

Fig. 3-7: Transport 5-axis robot arm RV-3SDJ or RV-3SQJ
Transport lock J1
Upper arm
Base
Front view
Shoulder
Transport lock
Side view
