Operation of Teaching Box R32TB Menu tree
SD-/SQ series 6 - 1
6 Operation of Teaching Box R32TB
This section describes the operation of the Teaching Box and the functions of the individual menus .
6.1 Menu tree
R001539E

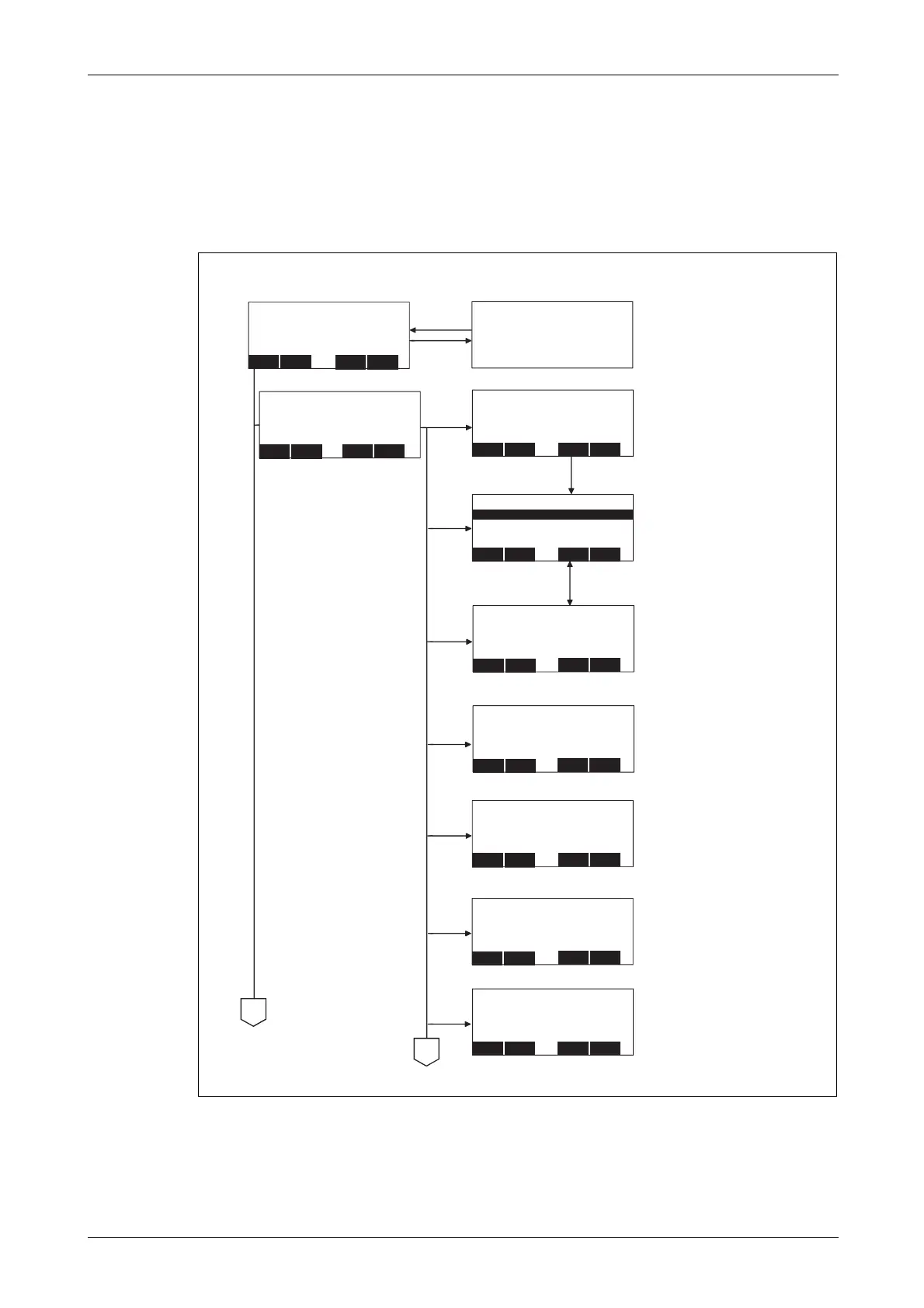

Fig. 6-1:
Menu tree (1)
<MENU>
1.FILE/EDIT 2.RUN
3.PARAM. 4.ORIGIN/BRK
5.SET/INIT. 6.ENHANCED
CLOSE
123
<FILE/EDIT> 1/20 Rem 136320
1 08-04-24 17:20:32 22490
2 08-04-24 14:56:08 694
A1 08-04-24 13:05:54 2208
B1 08-04-24 13:05:54 1851
COPY
123
POSI.
EDIT
NEW
<NEW PROGRAM>
PROGRAM NAME
( )
CLOSE
123
<PROGRAM> 1 50%
1 MOV P1
2 MOV P2
3 MOV P3
4 MOV P4
TEACH
123
DELETE
EDIT
INSERT
⇒
<POS.> JNT 100% P1
X:+128.56 A:+180.00
Y: +0.00 B: +90.00
Z:+845.23 C:–180.00
L1: L2:
FL1: 7 FL2: 0
Next123TEACH
MOVE
Prev
⇒
<PROGRAM COPY>
SRC.NAME ( 1 )
DSR.NAME ( )
CLOSE
123
<PROGRAM RENAME>
SRC.NAME ( 1 )
DST.NAME ( )
CLOSE
123
MELFA CRnD-7xx Ver. P2T
RV-6SDL
COPYRIGHT (C) 2008 MITSUBISHI ELEC
TRIC CORPORATION ALL RIGHTS RESE
RVED
<PROGRAM DELETE>
NAME ( 1 )
CLOSE
123
<PROTECT>
NAME ( 1 ) protect
COMMAND : OFF
DATE : OFF
CLOSE
123
DATA
CMD.
⇒
a1
[EXE]
[CLOSE ]
[NEW ]
[EDIT ]
[POSI. ]
[COPY ]
[RENAME ]
[PROTECT ]
[DELETE ]
[CHANGE ]
A
Main menu Start screen
1. File menu
Menu to input the file name
Menu for
program editing
Copy program
Rename program
Delete program
Protect program
Menu for
position editing
Menu item 6 “Enhanced” is avail-
able in the following software ver-
sions:
TB: from version 1.3
SD series: from version P8
SQ series: from version N8
To Next Page
