Mitsubishi 4G9 User Manual

4G9 ENGINE (E-W) -
Rocker Arms and Camshafts
11A-8-1
2a
PWEE9502-C
E
July 1997Mitsubishi Motors Corporation Added

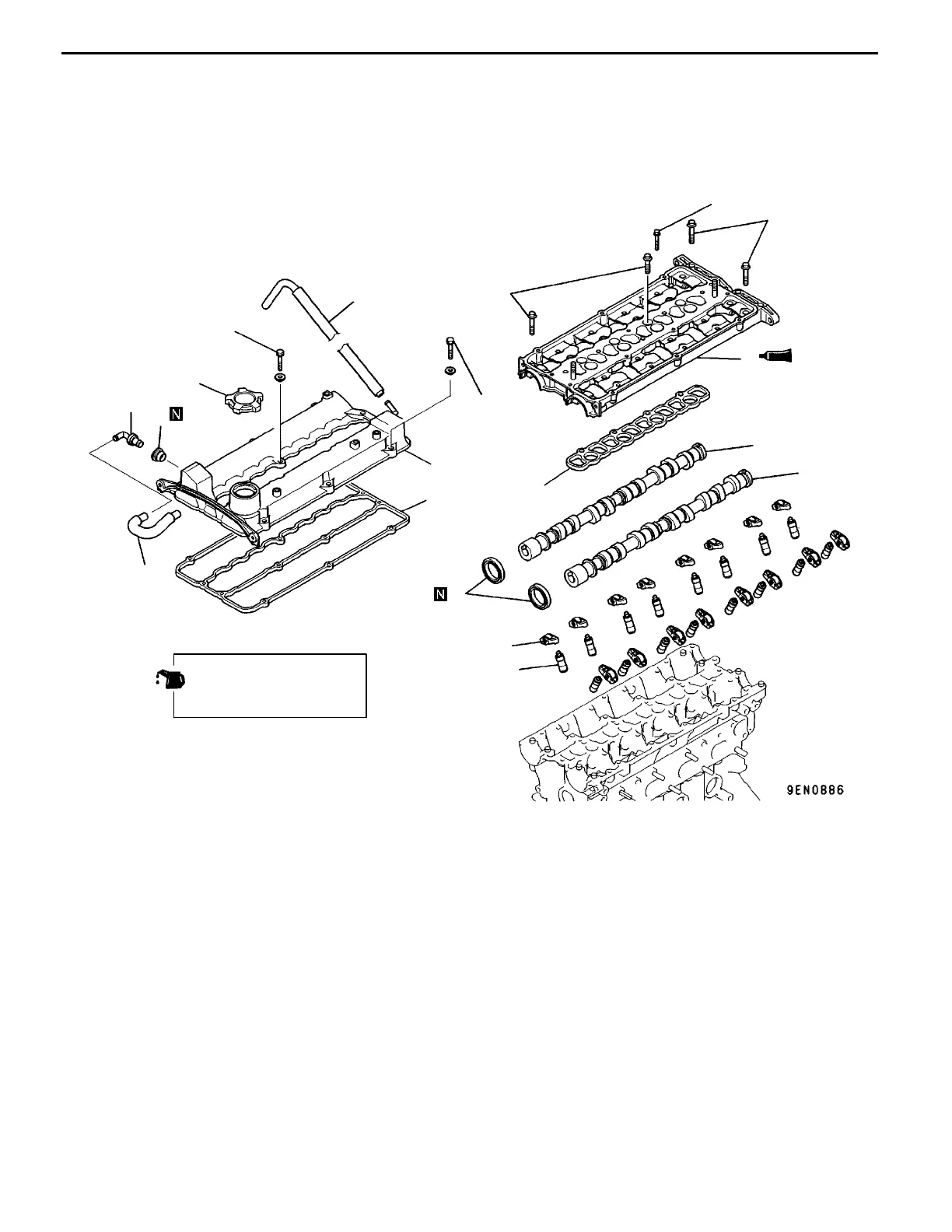

REMOVAL AND INSTALLATION <DOHC-GDI>
3.5 Nm
23 Nm
11 Nm
Apply engine oil to all
moving parts before
installation.
2
3
1
4
5
9
13
10
8
11
12
14
6
7
23 Nm
3.5 Nm
Removal steps
1. Breather hose
2. P.C.V hose
3. P.C.V valve
4. P.C.V valve gasket
5. Oil filler cap
6. Rocker cover
7. Rocker cover gasket
"
L
A
8. Oil seal
"
K
A
9. Beam camshaft cap
10. Gasket
"
J
A
11. Intake camshaft
"
J
A
12. Exhaust camshaft
13. Rocker arm
14. Lash adjuster
