Mitsubishi 4G9 User Manual

4G9 ENGINE (E-W) -
Rocker Cover and Camshafts (MIVEC)
11A-8a-1
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation
Added

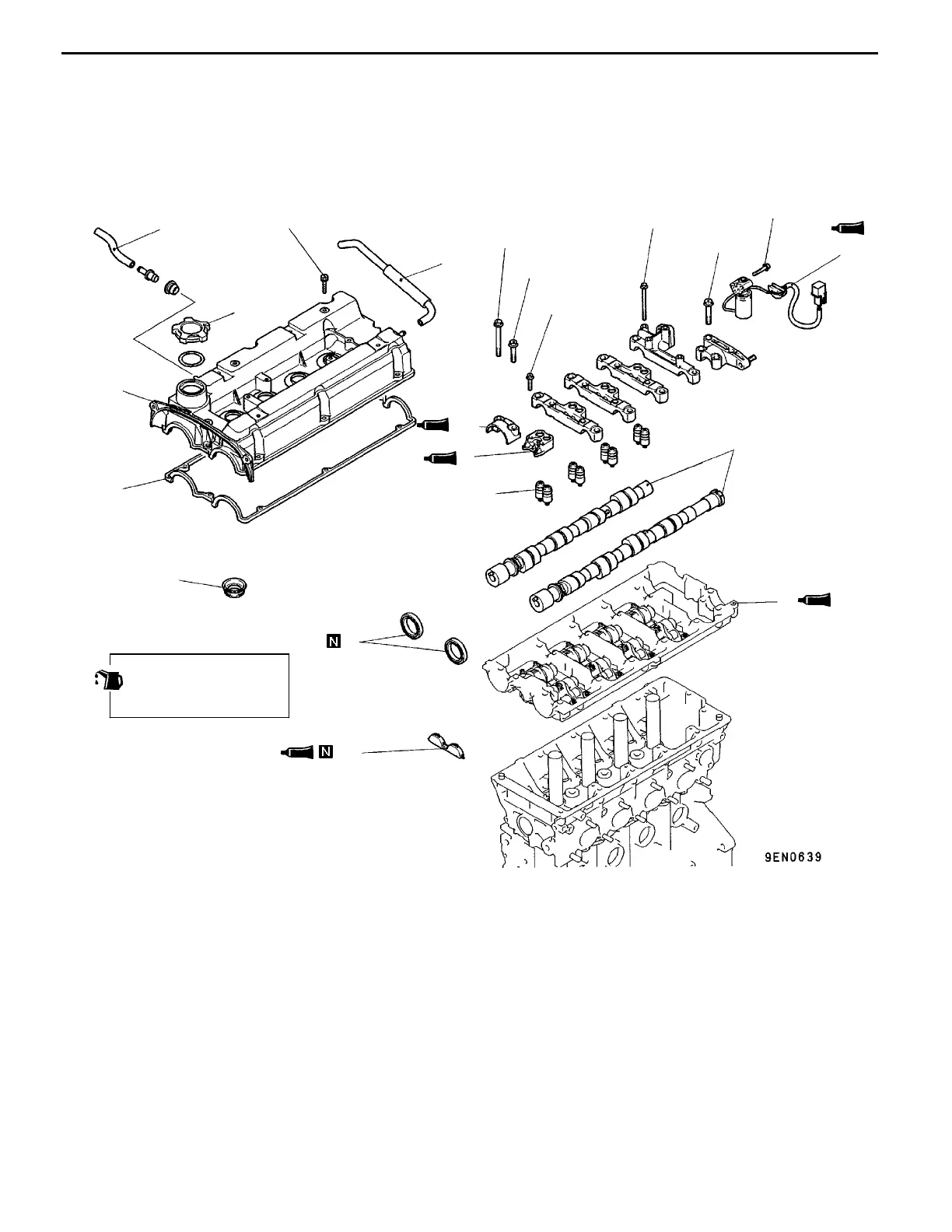

8a. ROCKER COVER AND CAMSHAFTS (MIVEC)
REMOVAL AND INSTALLATION
3.5 Nm
9Nm
Apply engine oil to
all moving parts be-
fore installation.
2
3
1
4
5
9
13
10
8
11
12
6
7
14
11 Nm
23 Nm
23 Nm
23 Nm
11 Nm
Removal steps
1. Breather hose
2. PCV hose
3. Oil filler cap
"
G
A
4. Rocker cover
5. Rocker cover gasket
6. Oil seal
"
F
A
7. Oil seal
"
E
A
8. Oil control valve
9. Arm spring holder
"
D
A
10. Camshaft bearing cap
"
D
A
11. Arm spring
"
C
A
12. Camshaft
"
B
A
13. Camshaft holder
"
A
A
14. Semi-circular packing
