4G9 ENGINE (E-W) -
Rocker Arms and Camshafts
11A-8-7
PWEE9502
E
May 1995Mitsubishi Motors Corporation

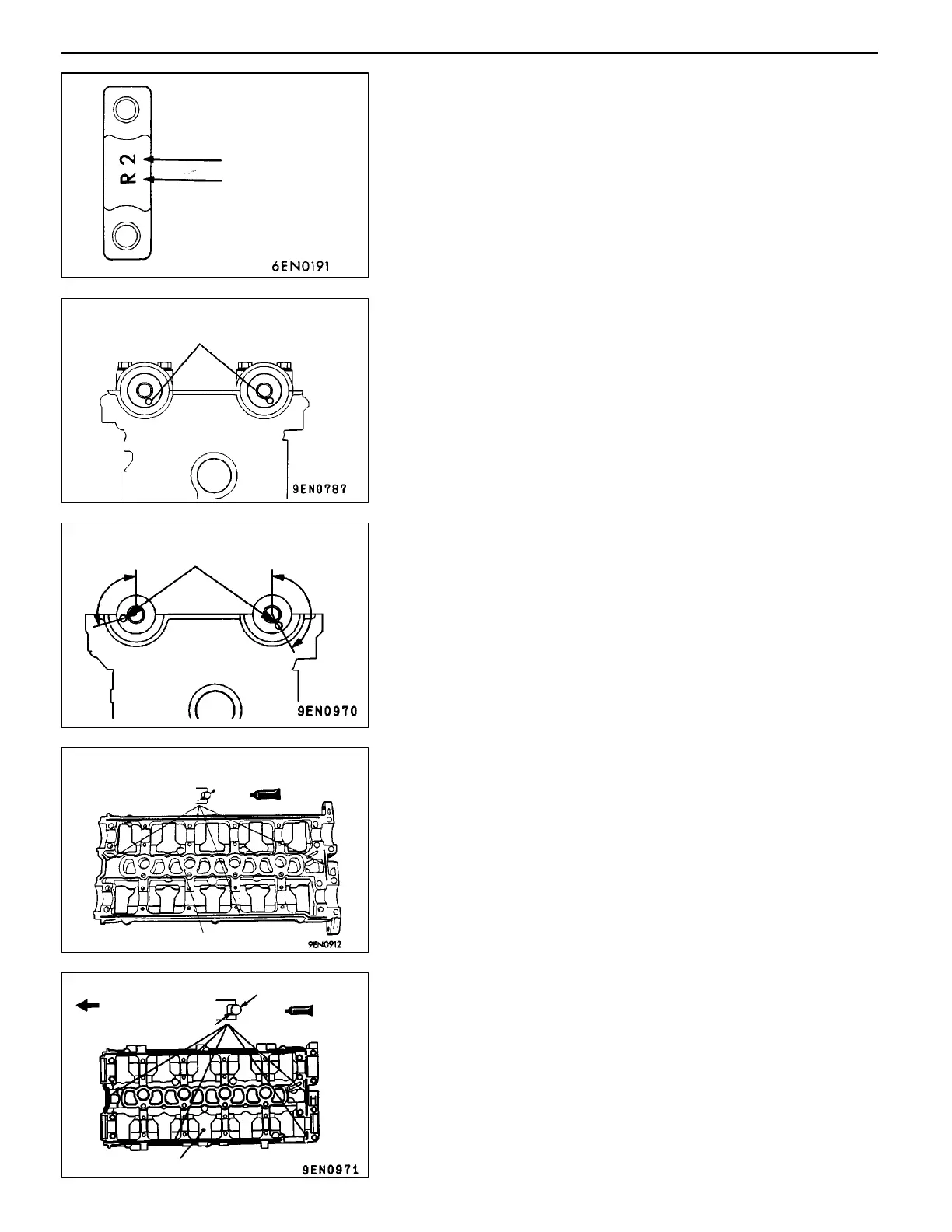

(3) The bearing caps No. 2 through No. 5 are of the same
shape. Before they are installed, check the cap number
and the intake and exhaust identification marks.
Identification mark (stamped on front and No. 2
through No. 5 bearing caps)
L: Intake side
R: Exhaust side
(4) Make sure that the rocker arms are installed in the
specified locations.
"
I
A
BEAM CAMSHAFT CAP INSTALLATION
(1) Locate the camshaft dowel pin as illustrated.
(2) Turn the crankshaft anticlockwise a quarter turn (90
_
).
(3) Apply a 3 mm thick continuous bead of sealant to the
bottom surface of the beam camshaft cap along the
groove.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
PWEE9502-G
E
May 2000Mitsubishi Motors Corporation Revised
Cap No.
IN or EX side
identification
Dowel pin
<DOHC-GDI for CARISMA (Up to 2000 model),
SPACE STAR (1999 model), SPACE RUNNER>
Dowel pin
<DOHC-GDI for CARISMA (From 2001 model),
SPACE STAR (From 2001 model), GALANT,
PAJERO io>
Approx.
150
_
Approx.
106
_
Beam camshaft cap
3mm
<DOHC-GDI for CARISMA (Up to 2000 model),
SPACE STAR (1999 model), SPACE RUNNER>
Timing belt side
<DOHC- GDI for CARISMA (From 2001 model), SPACE STAR
(From 2001 model), GALANT, PAJERO io>
Beam camshaft cap
3mm
