4G9 ENGINE (E–W) – Rocker Arms and Camshafts
11A-8-3a
PWEE9502
E
May 1995Mitsubishi Motors Corporation

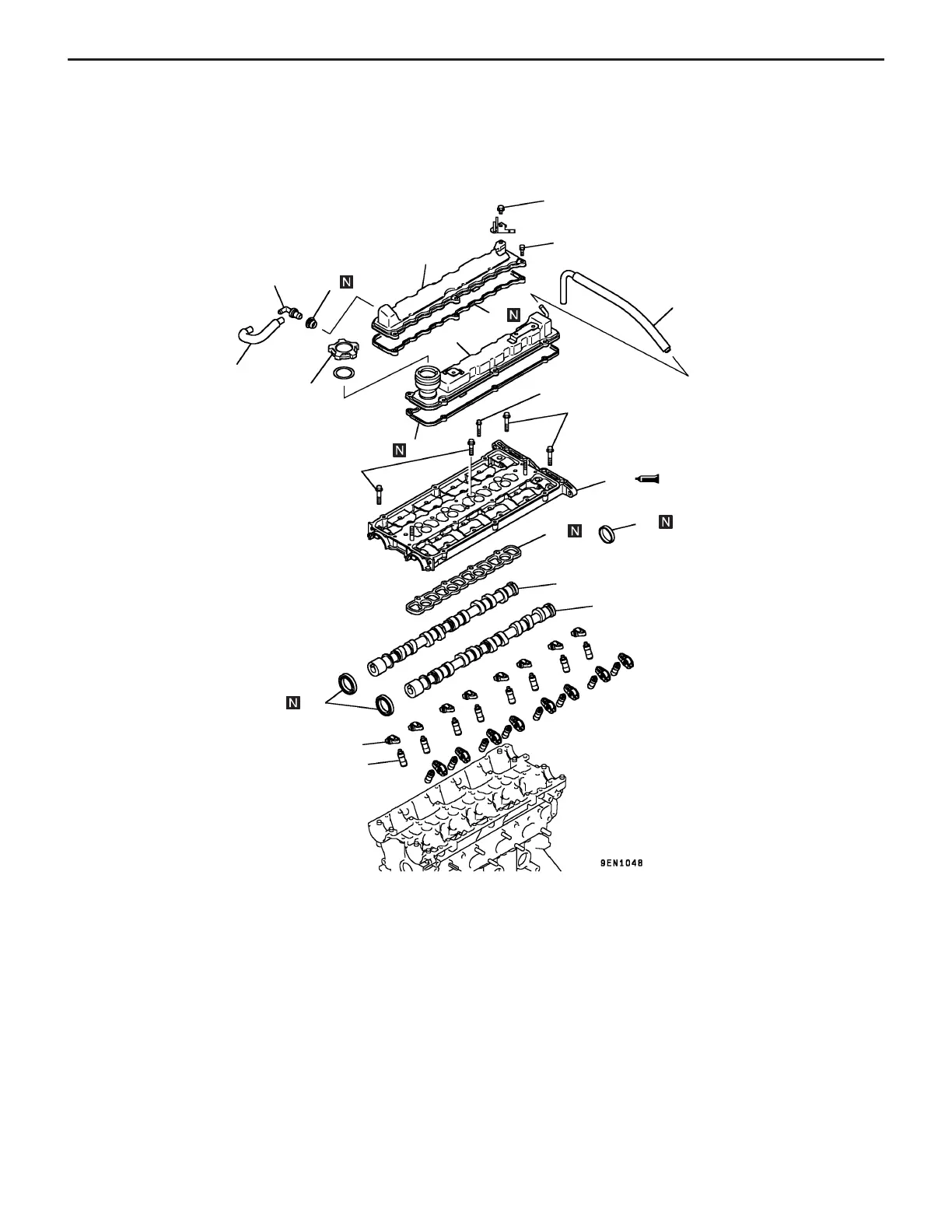

REMOVAL AND INSTALLATION <DOHC–GDI for CARISMA, SPACE STAR and
GALANT (From 2001 model)>
21 Nm
21 Nm
11 Nm
2
1
3
5
15
10
8
12
14
6
10 Nm
7
9
3.5 Nm
11
13
16
17
4
Removal steps
1. P.C.V. hose
2. P.C.V. valve
3. P.C.V. valve gasket
4. Breather hose
5. Oil filler cap
6. Rocker cover, intake
7. Rocker cover gasket, intake
8. Rocker cover, exhaust
9. Rocker cover gasket, exhaust
10. Oil seal
11. Circular packing
"IA 12. Beam camshaft cap
13. Beam camshaft cap gasket
14. Intake camshaft
15. Exhaust camshaft
16. Rocker arm
AA""FA 17. Lash adjuster
PWEE9502-L
E
Apr. 2003Mitsubishi Motors Corporation Revised
