4G9 ENGINE (E–W) – Fuel and Emission Control System
11A-5-2
PWEE9502-B
E
Nov. 1996Mitsubishi Motors Corporation Revised

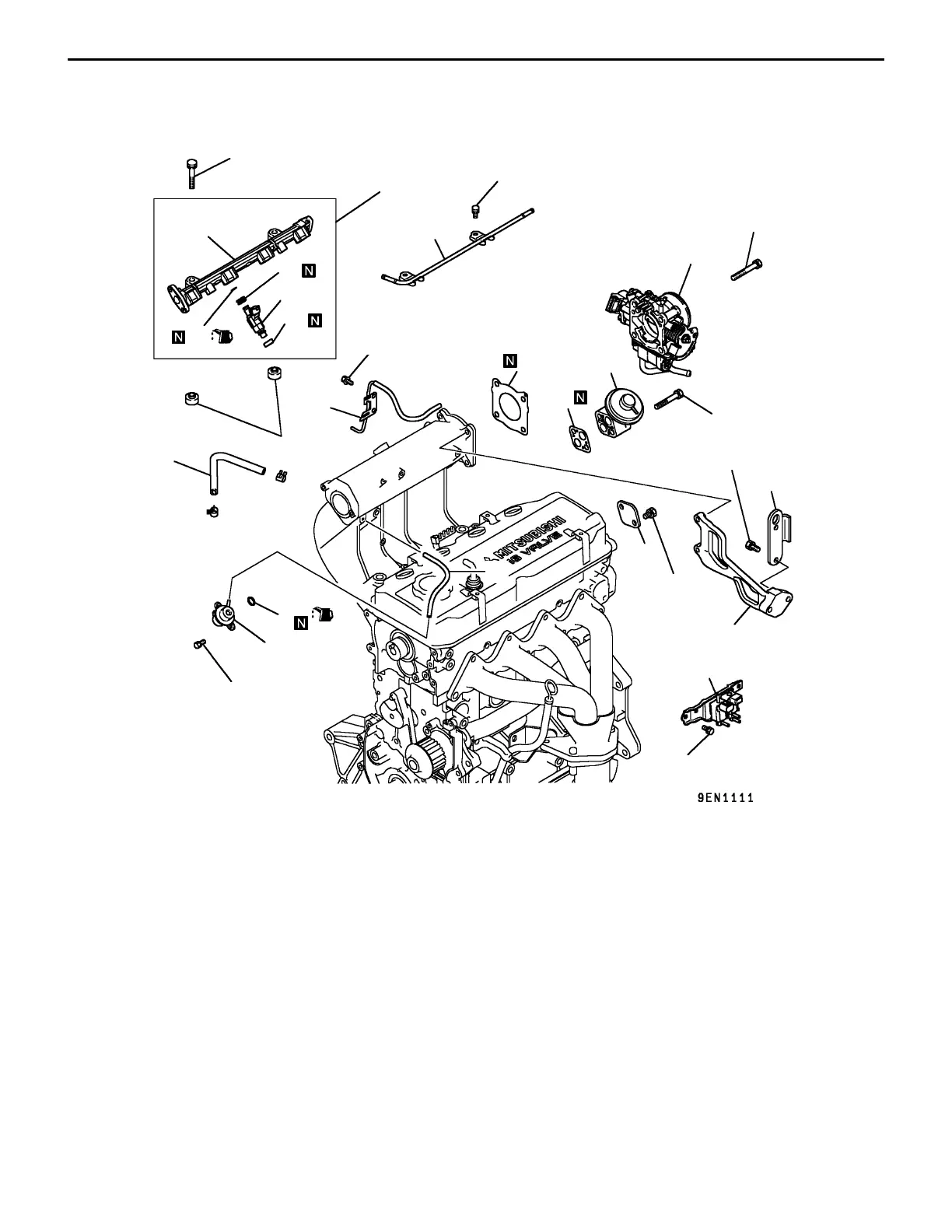

REMOVAL AND INSTALLATION <SOHC–MPI for other than PAJERO io>
12 Nm
19 Nm
Engine with solenoid valve Flange
Engine with solenoid valve Washer
Engine without solenoid valve
9 Nm
9 Nm
16
15
13
12
14
1
11
7
8
9
3
17
6
9 Nm
18
21 Nm
2
12 Nm
21
24 Nm
4
5
11 Nm
9 Nm
10Nm
19
10
20
Removal steps
1. Vacuum hose and pipe assembly
2. Throttle body
"CA 3. Gasket
4. Engine hanger (4G94)
5. Throttle body stay (4G94)
6. Vacuum hose
7. Fuel hose
"BA 8. Fuel pressure regulator
9. O-ring
10. Delivery pipe and injector
11. Insulator
12. Insulator
"AA 13. Injector
14. O-ring
15. Grommet
16. Delivery pipe
17. Fuel return pipe
18. Solenoid valve assembly
(Engine with solenoid valve)
19. EGR valve
(Engine with EGR valve)
20. Cover
(Engine without EGR valve)
21. Gasket
