4G9 ENGINE (E–W) – Water Pump and Water Hose
11A-7-2
PWEE9502
E
May 1995Mitsubishi Motors Corporation

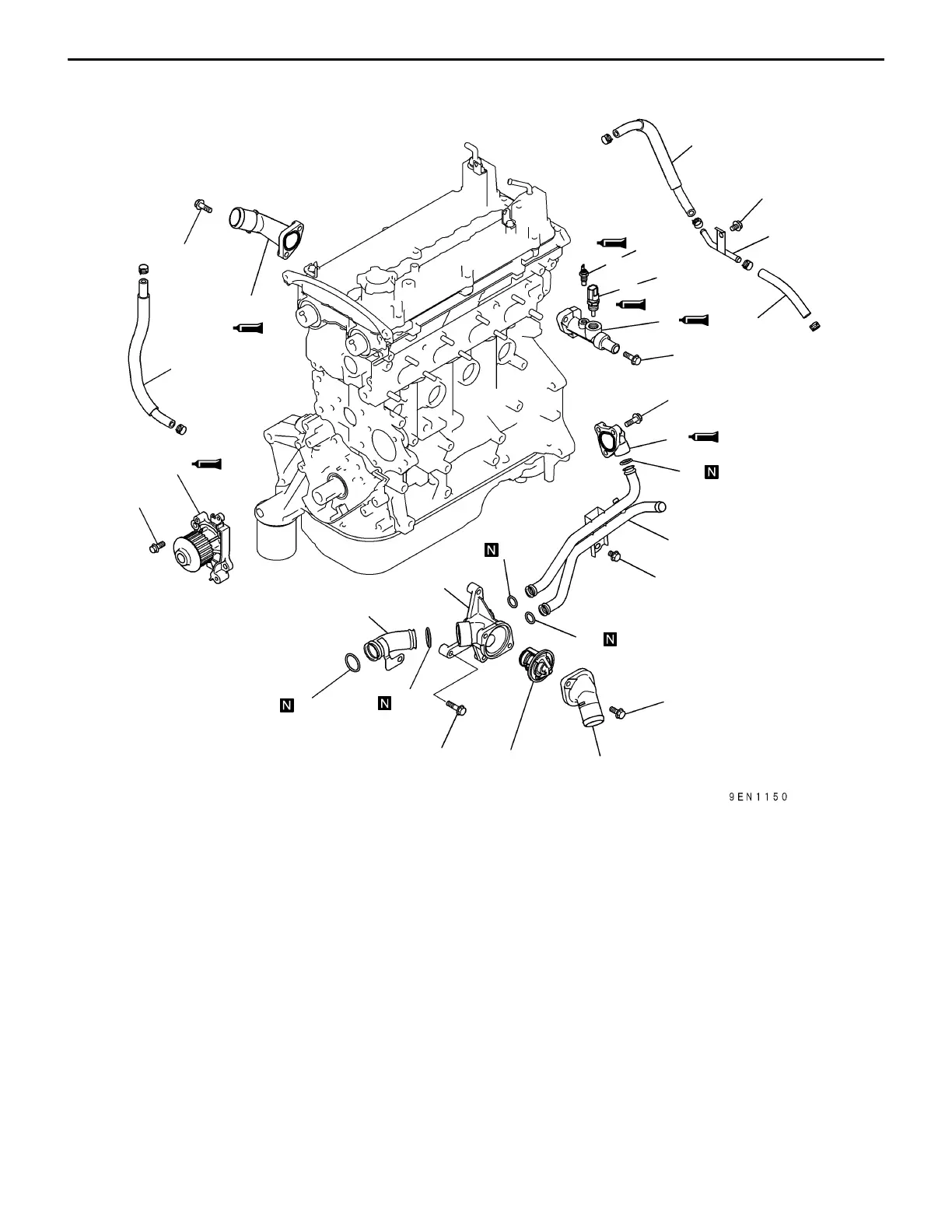

REMOVAL AND INSTALLATION <SOHC – REAR WHEEL DRIVE>
29 Nm
10 Nm
24 Nm
24 Nm
24 Nm
14 Nm
16
10
13
4
6
5
7
3
17
1
8
2
15
14
16
10
9
12
24 Nm
11
14 Nm
13
13
24 Nm
24 Nm
Removal steps
1. Water hose
2. Water hose
3. Water hose
4. Water pipe
"GA 5. Engine coolant temperature sensor
"FA 6. Engine coolant temperature gauge
unit
"IA 7. Water fitting
"EA 8. Water outlet fitting
9. Water inlet fitting
"DA 10. Thermostat
"HA 11. Water by-pass fitting
"BA 12. Water pipe
"BA 13. O-ring
"CA 14. Thermostat case
"BA 15. Water pipe
"BA 16. O-ring
"AA 17. Water pump
