4G9 ENGINE (E-W) -
Rocker Arms and Rocker Shaft Caps (MIVEC)
11A-8b-2
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation Added
INSTALLATION SERVICE POINT
"
A
A
ROCKER ARM ASSEMBLY INSTALLATION

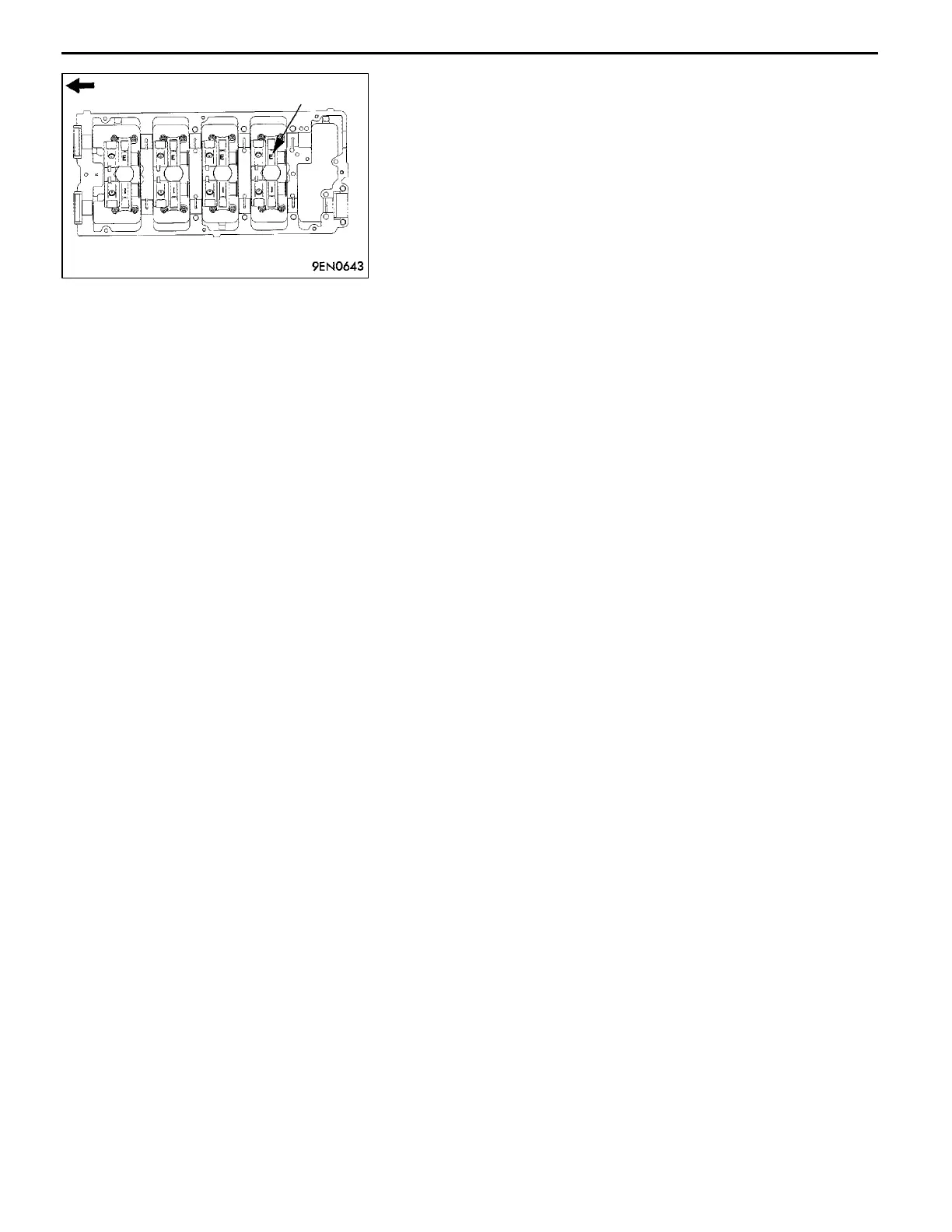

(1) Install the rocker arm assemblies while checking the
identification marks at the positions shown to ensure that
the intake and exhaust sides are not reversed.
Identification marks:
E: Intake
I: Exhaust
Timing belt side
Identification mark
