4G9 ENGINE (E–W) – Intake and Exhaust Manifold
11A-6-1
PWEE9502-B
E
Nov. 1996Mitsubishi Motors Corporation
Revised

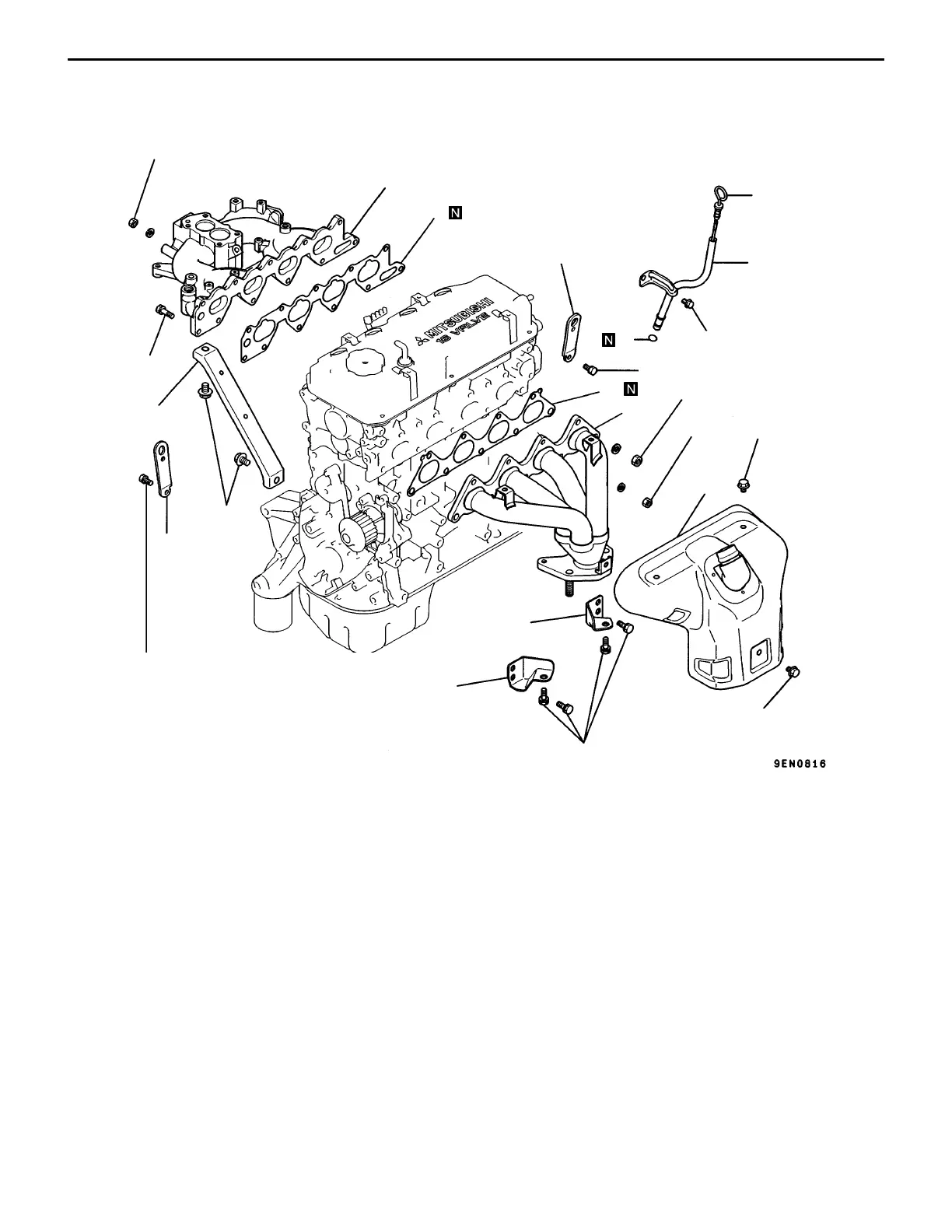

6. INTAKE AND EXHAUST MANIFOLD
REMOVAL AND INSTALLATION <SOHC–CARBURETOR>
20 Nm
20 Nm
31 Nm
29 Nm
18 Nm
19 Nm
14 Nm
7
6
5
8
9
10
11
13
4
1
3
2
13 Nm
13 Nm
12
Bolt with head mark “4”
Bolt with head mark “7”
12 Nm
19 Nm
Bolt with head mark “4”
Bolt with head mark “7”
12 Nm
19 Nm
Removal steps
1. Engine hanger
"BA 2. Intake manifold stay
3. Intake manifold
4. Intake manifold gasket
5. Oil level gauge
6. Oil level gauge guide
7. O-ring
8. Exhaust manifold cover
9. Engine hanger
"AA 10. Exhaust manifold bracket A
"AA 11. Exhaust manifold bracket B
12. Exhaust manifold
13. Exhaust manifold gasket
