4G9 ENGINE (E-W) -
Injector and Fuel Pump Assembly (GDI)
11A-6c-1b

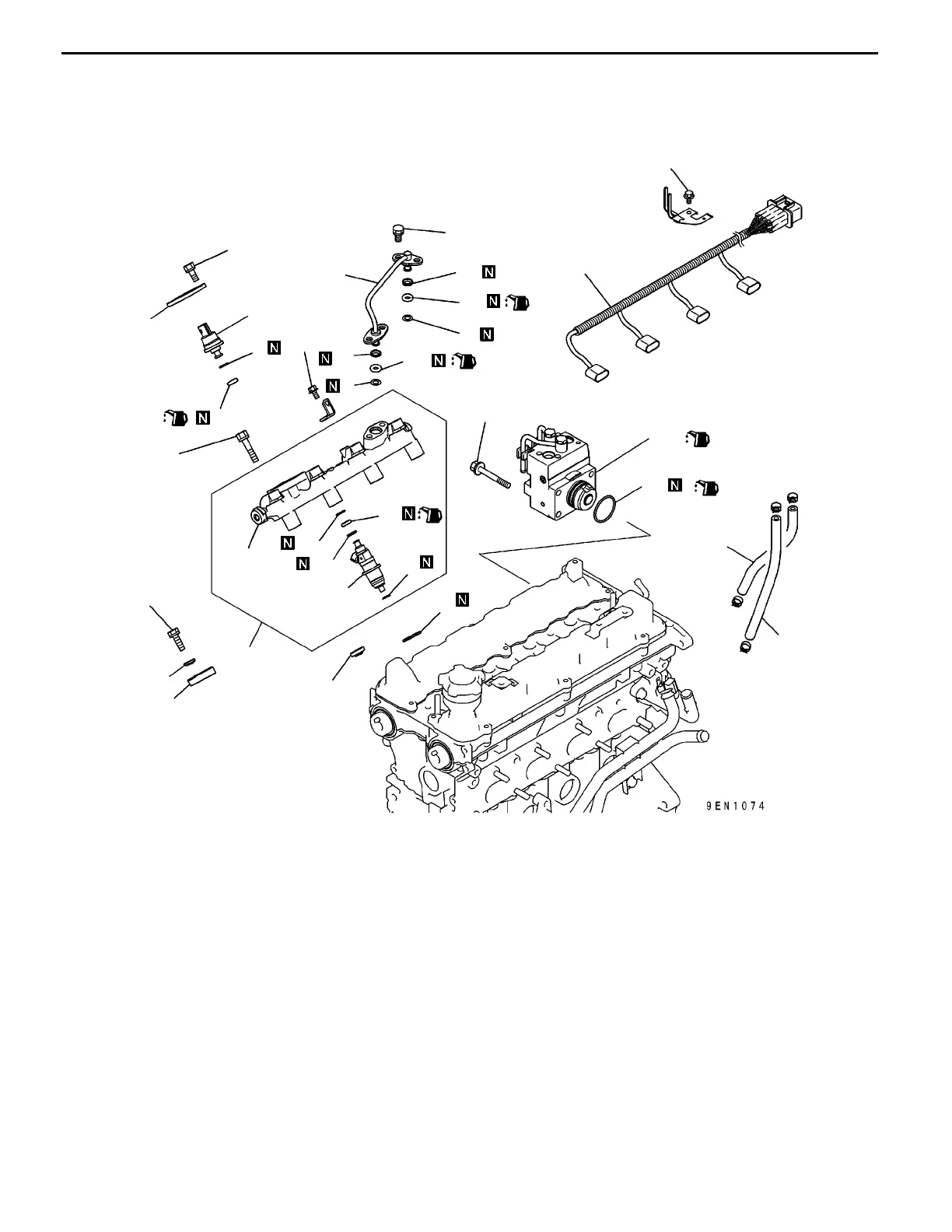

REMOVAL AND INSTALLATION <For PAJERO io - 4G94>
14
13
10
12
1
9
11
4
3
2
15
5
18
19
23
22
11 Nm
22 Nm
7
24
21
20
23 Nm
11 Nm
11
9
11 Nm
11 Nm
17 Nm
16
17
6
10
8
Removal steps
1. Fuel hose
2. Fuel hose
3. Injector harness
4. Flange
"
I
A
5. Fuel pressure sensor
"
I
A
6. Backup ring
"
I
A
7. O-ring
"
H
A
8. Fuel pipe
"
H
A
9. Backup ring
"
H
A
10. O-ring
"
H
A
11. Backup ring
"
J
A
12. Fuel pump
"
J
A
13. O-ring
14. Washer
15. Injector holder
"
B
A
16. Delivery pipe and injector
17. Insulator
18. Injector gasket
"
A
A
19. Corrugated washer
"
A
A
20. Backup ring
"
A
A
21. O-ring
"
A
A
22. Backup ring
23. Injector
24. Delivery pipe
PWEE9502-H
E
July 2000Mitsubishi Motors Corporation Revised
