Mitsubishi 4G9 User Manual

4G9 ENGINE (E–W) – Front Case and Oil pump
11A-10-3
PWEE9502
E
May 1995Mitsubishi Motors Corporation

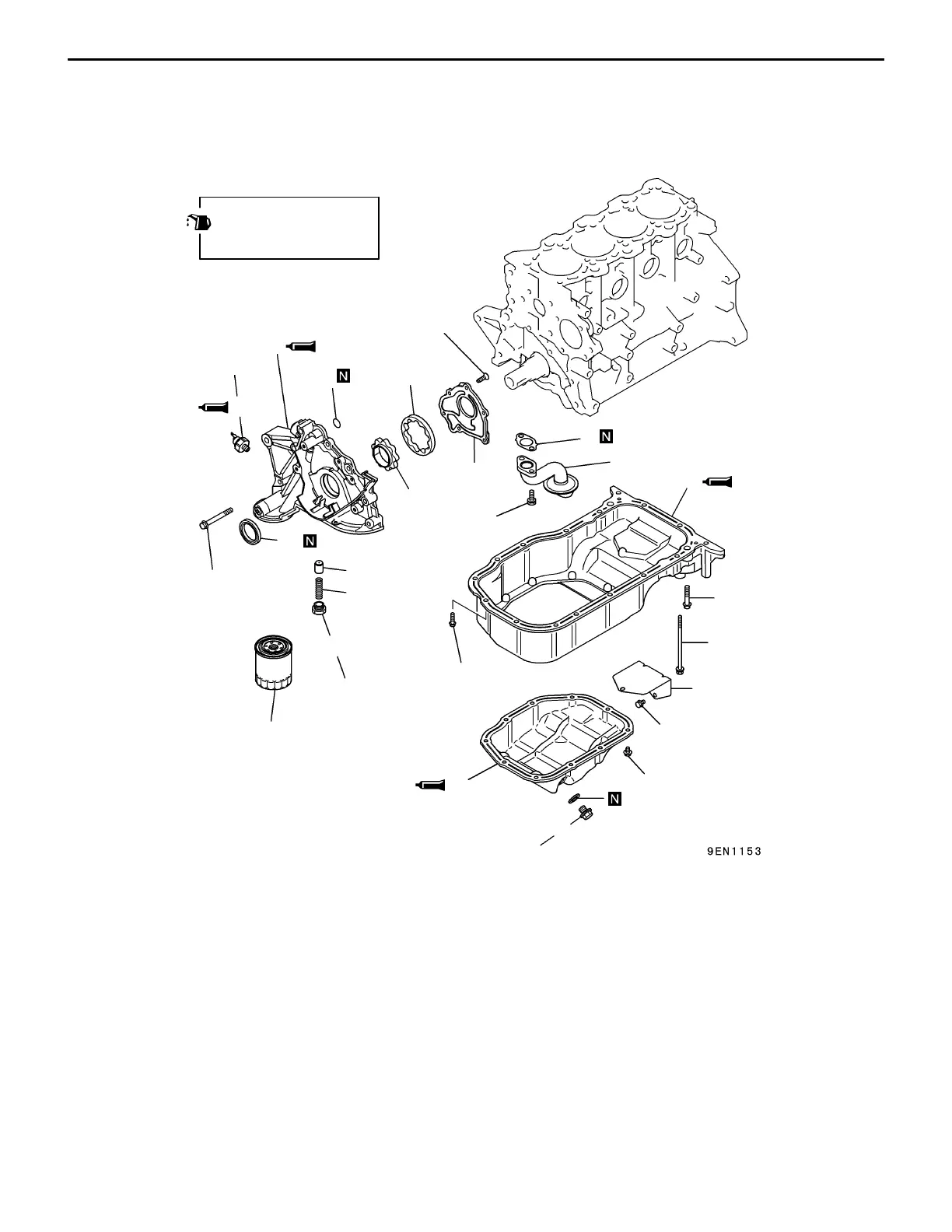

REMOVAL AND INSTALLATION <DOHC–GDI for PAJERO io>
10 Nm
19 Nm
14 Nm
44 Nm
39 Nm
11 Nm
Apply engine oil to all
moving parts before
installation.
12
1
9
10
11
2
3
6
5
4
8
15
16
17
14
13
18
9 Nm
24 Nm
7 Nm
10 Nm
9 Nm
7
Removal steps
"FA 1. Oil pressure switch
"EA 2. Oil filter
3. Drain plug
4. Drain plug gasket
5. Cover
AB""DA 6. Upper oil pan
"DA 7. Lower oil pan
8. Oil screen
9. Oil screen gasket
10. Relief plug
11. Relief spring
12. Relief plunger
"CA 13. Oil seal
"BA 14. Oil pump case
15. O-ring
16. Oil pump case cover
AC""AA 17. Outer rotor
AC""AA 18. Inner rotor
PWEE9502-K
E
Jun. 2002Mitsubishi Motors Corporation Revised
