4G9 ENGINE (E-W) -
Rocker Arms and Camshafts
11A-8-5
REMOVAL SERVICE POINT
A
A
"
LASH ADJUSTER REMOVAL
Caution
D
If the lash adjuster is re-used, clean the lash
adjuster. (Refer to 11A-8-10.)
INSTALLATION SERVICE POINTS
"
A
A

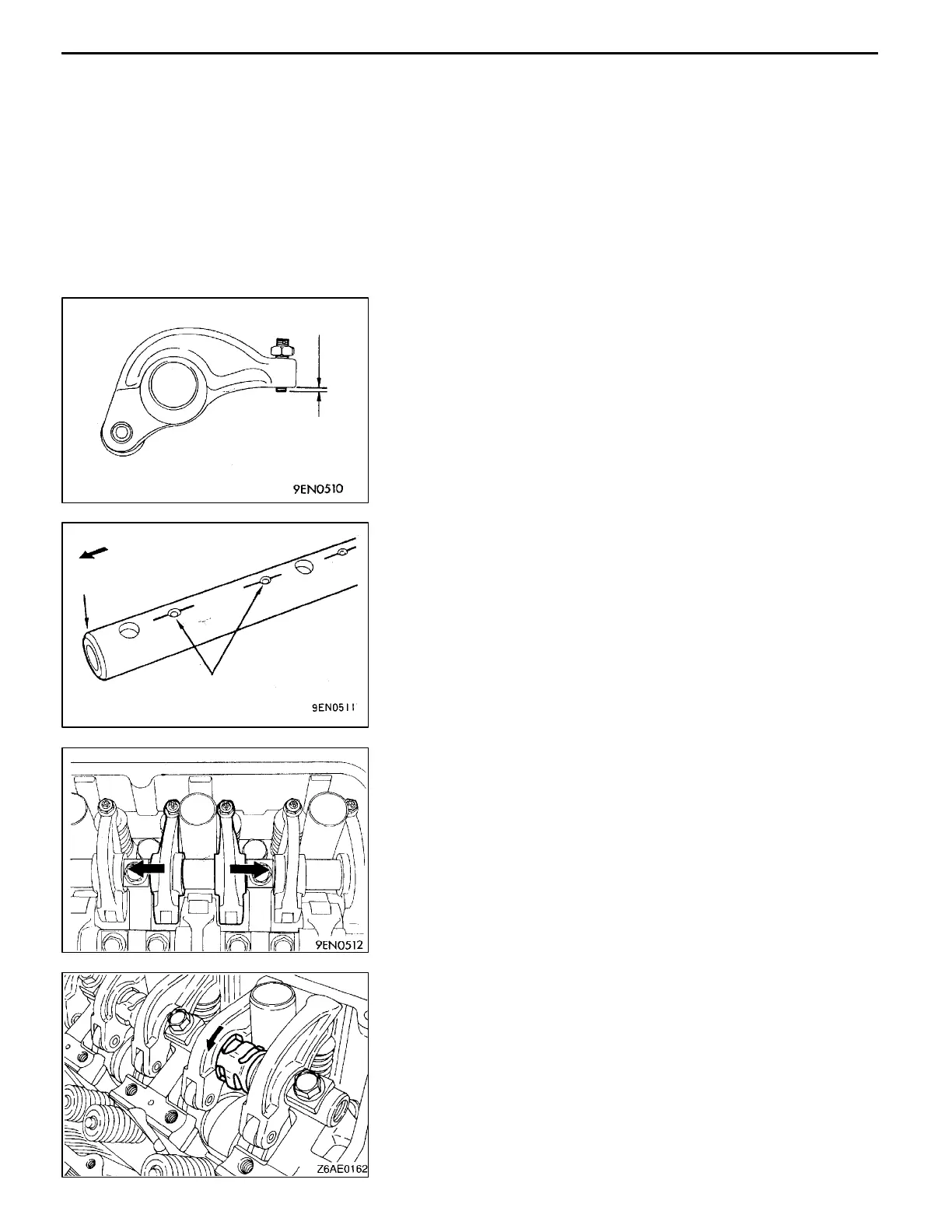

ADJUSTING SCREW INSTALLATION
(1) Install provisionally the screw to the rocker arm. Insert
it so that the end of the screw is flush with the edge
of the rocker arm or projects slightly (1 mm or less).
"
B
A
ROCKER ARM SHAFT INSTALLATION
(1) Place the end with the larger chamfered side toward t he
timing belt side.
NOTE
The rocker arm shaft for intake valves has eight oil holes.
(2) Install the shaft with the oil holes toward the cylinder
head.
"
C
A
ROCKER ARMS AND ROCKER ARM SHAFT
INSTALLATION
(1) Move the rocker arms in the directions shown in the
illustration before tightening the rocker arm shaft bolts.
NOTE
Move the rocker arms until they touch the rocker arm
shaft mounting bosses on the cylinder head.
"
D
A
ROCKER ARM SPRING INSTALLATION
(1) Insert the rocker arm spring at an angle to the spark
plug guide and then install it so that it is at a right angle
to the guide.
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Revised
1 mm or less
Timing belt side
Chamfered side
Oil holes
