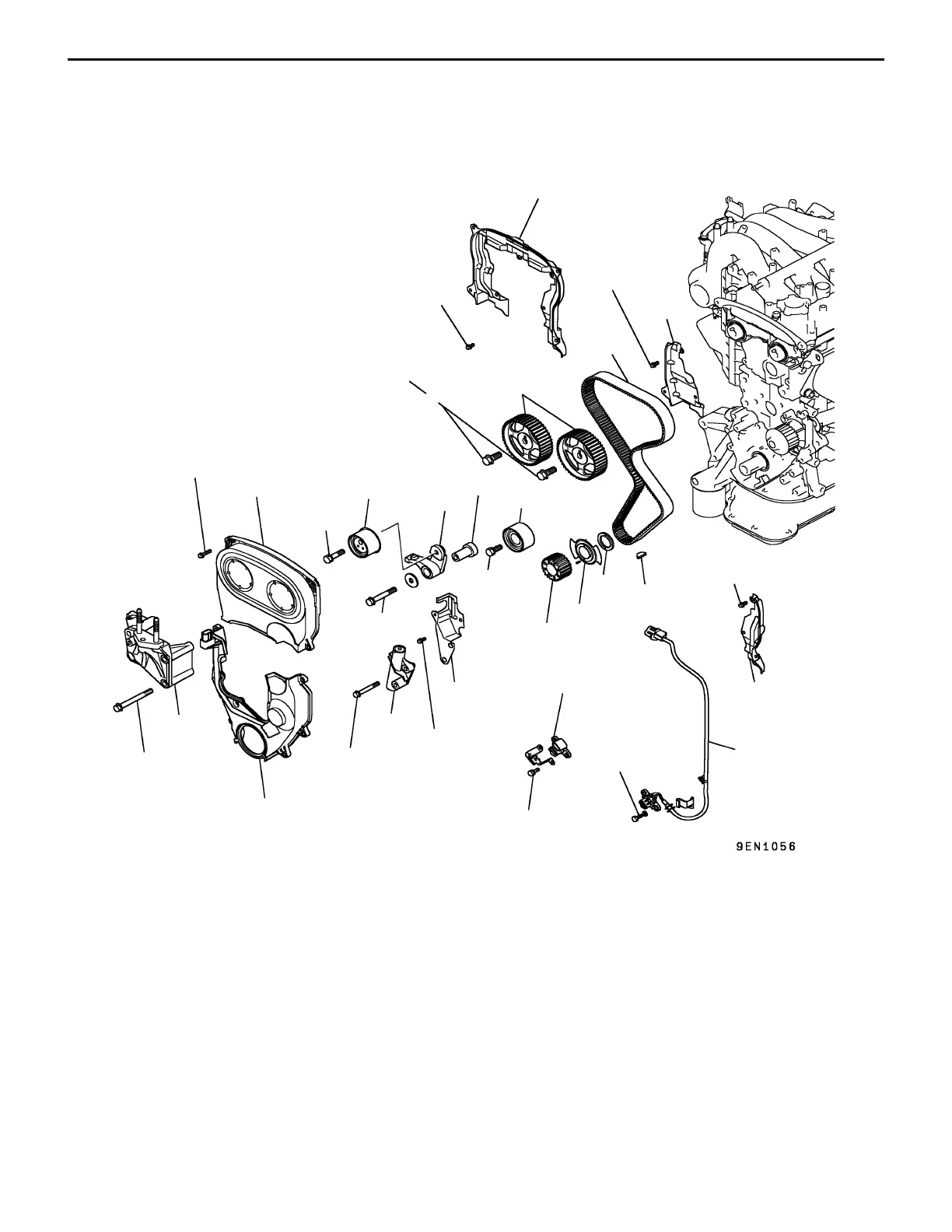

4G9 ENGINE (E–W) Timing Belt
11A-4-2c
REMOVAL AND INSTALLATION
<DOHC–GDI for CARISMA, SPACE STAR, SPACE RUNNER>
21
11 Nm
88 Nm
11 Nm
35 Nm
11 Nm
49 Nm
11
10
1
4
5
3
2
6
7
8
9
11 Nm
19
18
48 Nm
13
15
14
16
48 Nm
13 Nm
20
9.8 Nm
17
11 Nm
12
9.8 Nm
12
Removal steps
1. Timing belt front upper cover
2. Timing belt front lower cover
3. Engine support bracket, right
AA""FA 4. Timing belt
5. Tensioner pulley
6. Tensioner arm
7. Shaft
"EA 8. Auto tensioner
9. Timing belt rear cover
10. Idler pulley
11. Crankshaft angle sensor
(Up to 1999 model)
12. Crankshaft angle sensor
(From 2000 model)
"GA 13. Crankshaft sprocket
"GA 14. Crankshaft spacer
"GA 15. Crankshaft sensing blade
16. Crankshaft key
AB""AA 17. Camshaft sprocket bolt
18. Camshaft sprocket
19. Timing belt rear cover
(Up to 2000 model)
20. Timing belt rear cover
(Up to 2000 model)
21. Timing belt rear upper cover
(From 2001 model)
PWEE9502-I
E
Mar. 2001Mitsubishi Motors Corporation Revised
