4G9 ENGINE (E-W) -
Rocker Arms and Rocker Shaft Caps (MIVEC)
11A-8b-1
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation
Added

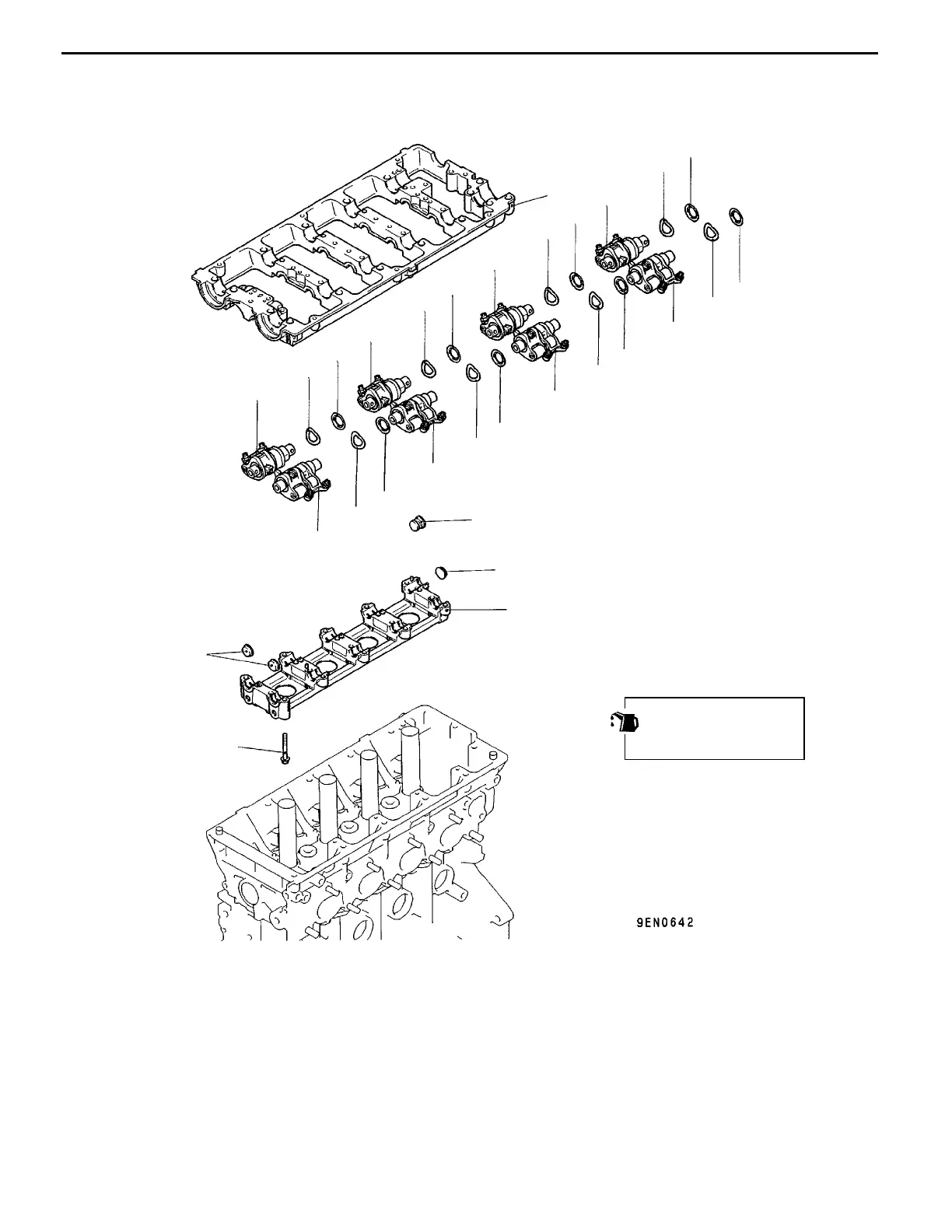

8b. ROCKER ARMS AND ROCKER SHAFT CAPS (MIVEC)
REMOVAL AND INSTALLATION
11 Nm
Apply engine oil to
all moving parts be-
fore installation.
2
3
1
2
10
9
8
7
9
8
7
9
8
7
9
8
7
4
5
6
4
5
6
4
5
6
4
5
6
Removal steps
1. Rocker shaft cap
2. Seal cap “A”
3. Seal cap “B”
4. Spring guide
5. Wave washer
"
A
A
6. Intake rocker arm assembly “A”
7. Spring guide
8. Wave washer
"
A
A
9. Exhaust rocker arm assembly “A”
10. Camshaft holder
