4G9 ENGINE (E–W) Intake and Exhaust Manifold
11A-6-4
PWEE9502-B
E
Nov. 1996Mitsubishi Motors Corporation
Added

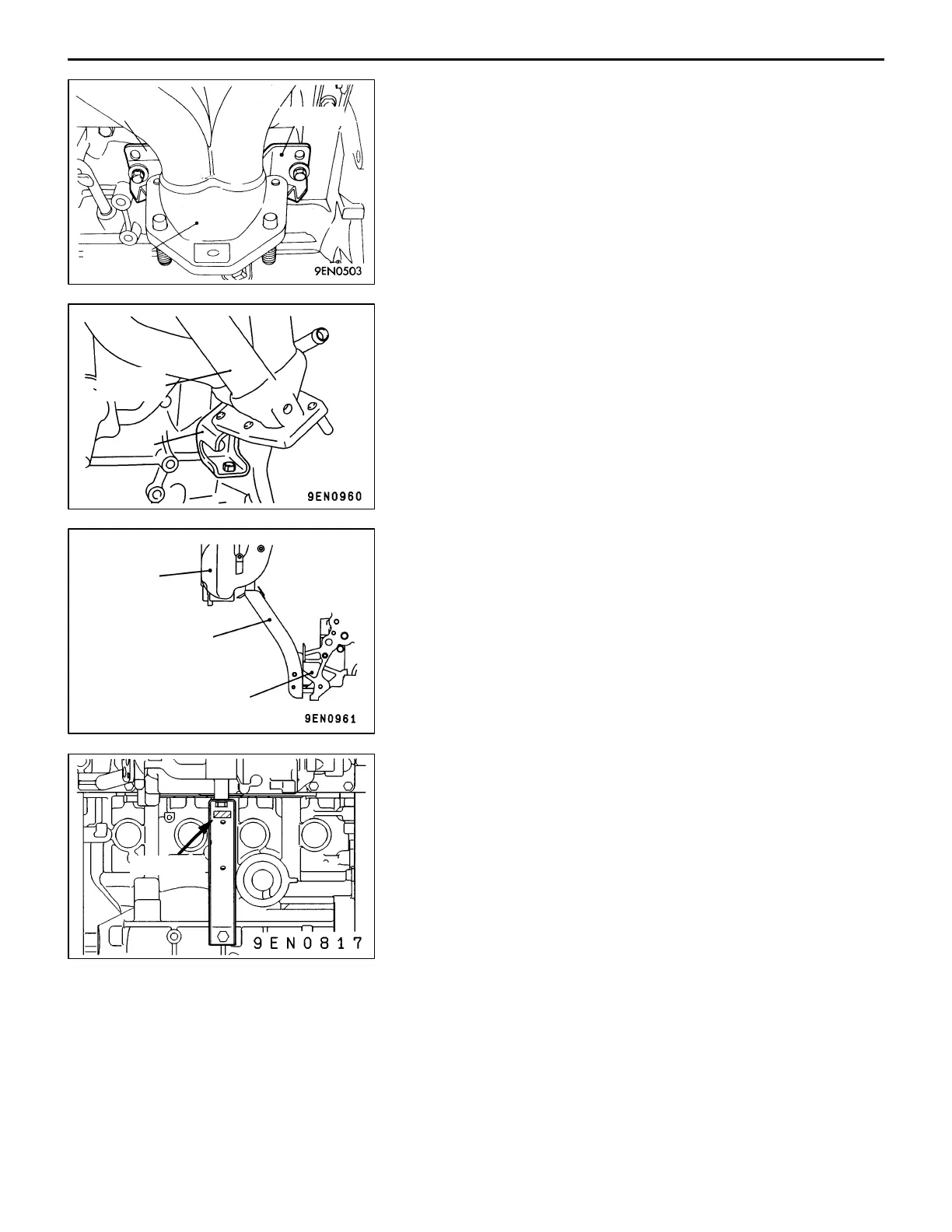

INSTALLATION SERVICE POINT
"AA EXHAUST MANIFOLD BRACKET INSTALLATION
<FRONT WHEEL DRIVE>
(1) Install temporarily the exhaust manifold brackets A and
B as shown in the illustration.
(2) Check that both brackets are in close contact with the
bosses, and then tighten fully the bracket mounting bolts.
<REAR WHEEL DRIVE>
(1) Temporarily install the exhaust manifold bracket as shown
in the illustration.
(2) Verify that the bracket is brought into close contact with
the boss on the exhaust manifold, then tighten the bolts
to the specified torque.
"BA INTAKE MANIFOLD STAY INSTALLATION
<FRONT WHEEL DRIVE>
(1) Check to ensure that the intake manifold stay is in close
contact with the intake manifold and the cylider block
before tightening the respective mounting bolts to the
specified torque.
<REAR WHEEL DRIVE>
(1) Install the intake manifold stay with its “UP” mark directed
toward the intake manifold.
PWEE9502-I
E
Mar. 2001Mitsubishi Motors Corporation Revised
Bracket A
Bracket B
Exhaust
manifold
Bracket
Exhaust
manifold
Cylinder block
Intake
manifold
stay
Intake
manifold
“UP” mark
