4G9 ENGINE (E-W) -
Piston and Connecting Rod
11A-11-2
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation
Revised

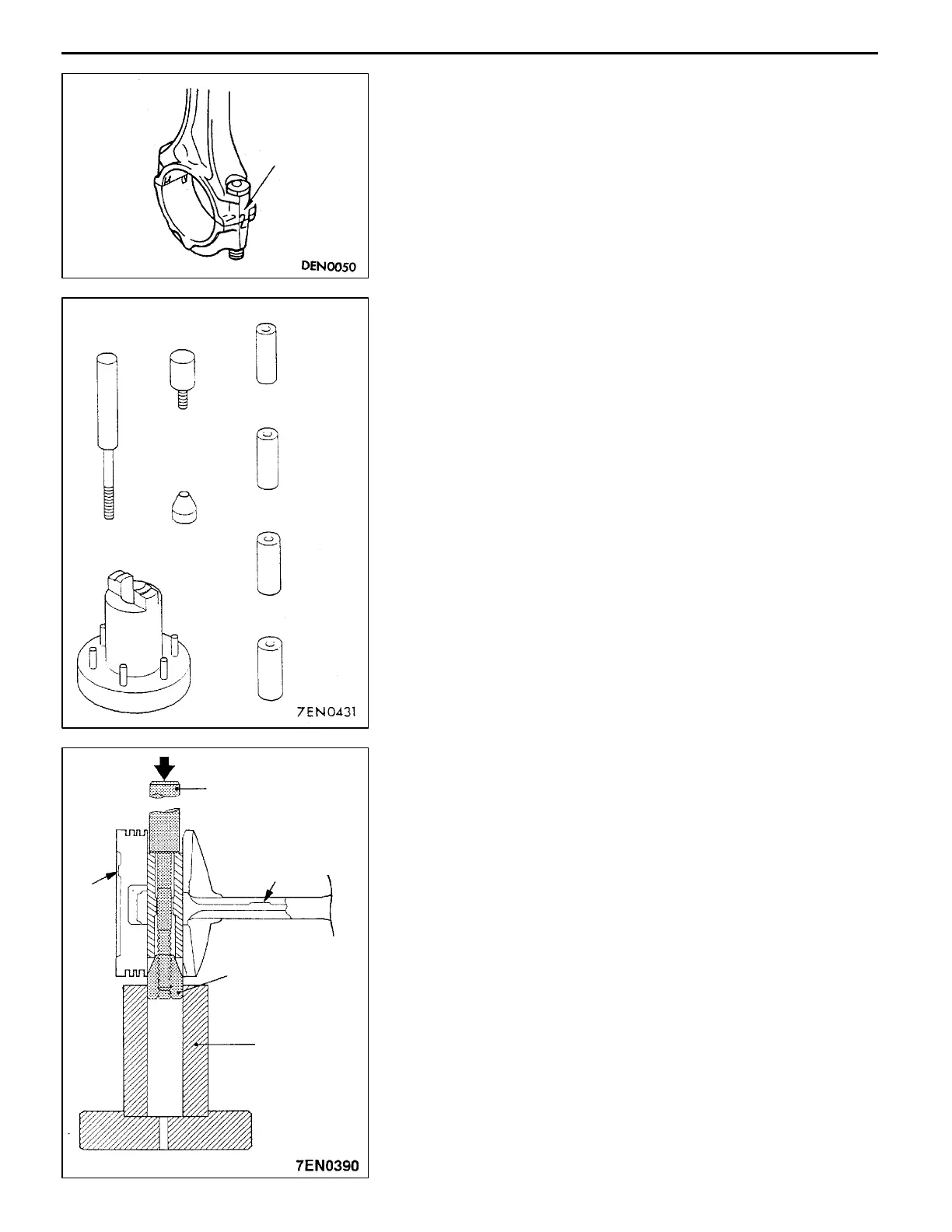

REMOVAL SERVICE POINTS
A
A
"
CONNECTING ROD CAP REMOVAL
(1) Mark the cylinder number on the side of the connecting
rod big end for correct reassembly.
A
B
"
PISTON PIN REMOVAL
Piston pin setting tool (MD998780) consists of t he parts shown
in the illustration at left.
To remove the piston pin, Guide D (MB991659) is also used
in combination with t h e Piston pin setting tool.
(1) Insert the Push Rod (special tool) into the piston from
the side on which the front mark is stamped in the piston
head, and attach the guide D to the push rod end.
(2) Place th e piston and connecting rod assembly on th e
Piston Pin Setting Base (special tool) with the front mark
facing upward.
(3) Using a press, remove the piston pin.
NOTE
Keep the disassembled pistons, piston pins and
connecting rods in order according to the cylinder number.
Cylinder number
Piston pin setting tool: MD998780
Push rod
Guide A:
17.9 mm
Guide B
Guide A:
18.9 mm
Guide C
Guide A:
20.9 mm
Base
Guide A:
21.9 mm
Push rod
Front
mark
Front mark
Guide D
Base
