ADJUSTMENT OF OTHER PARTS
REFERENCE MATERIAL
8-9
REAR WHEEL ALIGNMENT
M4080010000066
1. The rear suspension, wheels and tyres should be serviced
to normal condition prior to measurement of wheel
alignment.
2. Measure the wheel alignment with the vehicle parked on a
level surface.
.
TOE-IN
Standard value: 3 ± 2 mm (0.12 ± 0.07 inch)
It toe-in is not within the standard value, adjust by following pro-
cedures.
1. Be sure to adjust the camber before making toe adjustment.
2. Carry out adjustment by turning the toe adjusting bolt (assist
link mounting bolt which is located on the inner side of the
body).
Left wheel: Turning clockwise (+) toe-in
Right wheel: Turning clockwise (−) toe-in
NOTE: The scale has gradations of approximately 3.3 mm
(0.13inch) (single side toe angle equivalent to 19’).
.
CAMBER
Standard value:
− 1° 00’ ± 30’ (difference between right and left
wheel: less than 30’)
.
If camber and/or toe-in is not within the standard value, adjust
by following procedures.
1. Carry out camber adjustment by turning the camber
adjusting bolt (lower arm to rear crossmember mounting
bolt).
Left wheel: Turning clockwise (+) camber
Right wheel: Turning clockwise (−) camber
NOTE: The scale has gradations of approximately 14’
2. After adjusting the camber, the toe should be adjusted.

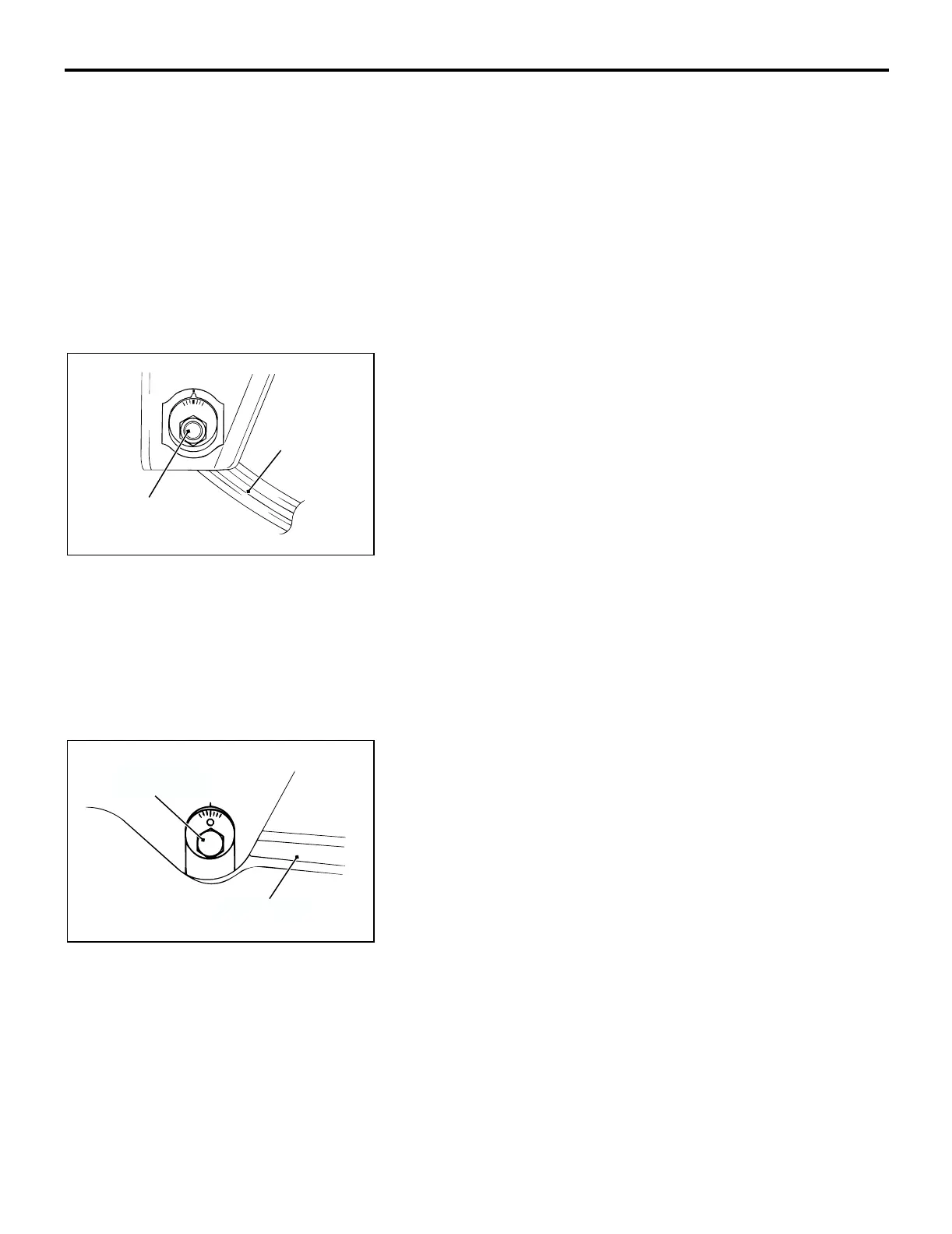

AC211953
TOE ADJUSTING
BOLT
ASSIST LINK
AB
AC211954
AC
CAMBER ADJUSTING
BOLT
LOWER ARM
