FENDER SHIELD
WELDED PANEL REPLACEMENT
3-4

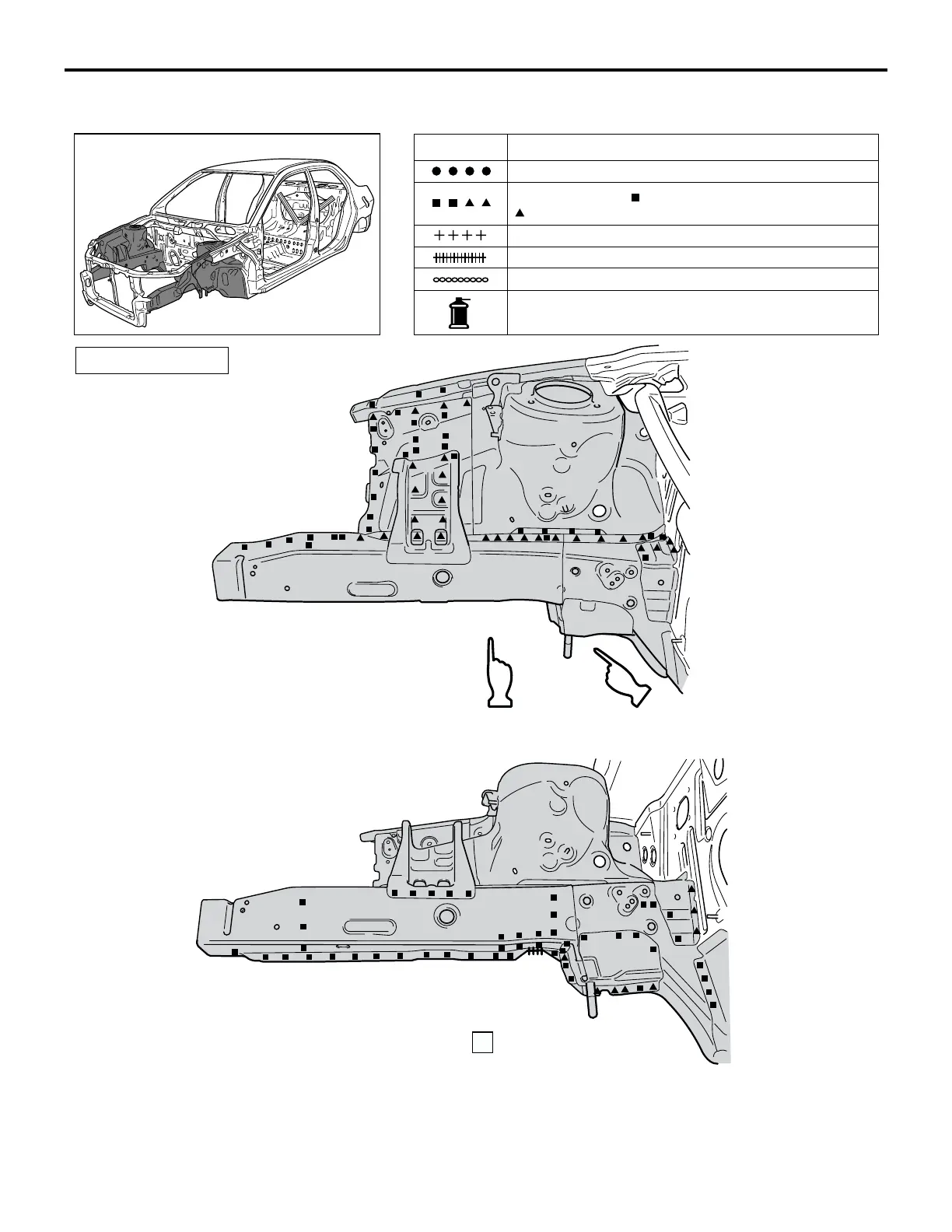

FENDER SHIELD
M4030004000095
NOTE: .
•
Refer to the Headlamp Support Section on P.3-2
for the welding point with headlamp support.
•
Refer to the Front Pillar Section on P.3-10 for the
welding points with the upper frame extension
outer.
AB201904
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding ( : indicates two panels to be welded
: indicates three panels to be welded)
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
AB
AB202218
A
E
A
AB
REPAIR WELDS
