Mitsubishi LANCER EVOLUTION 2003 Body Repair Manual

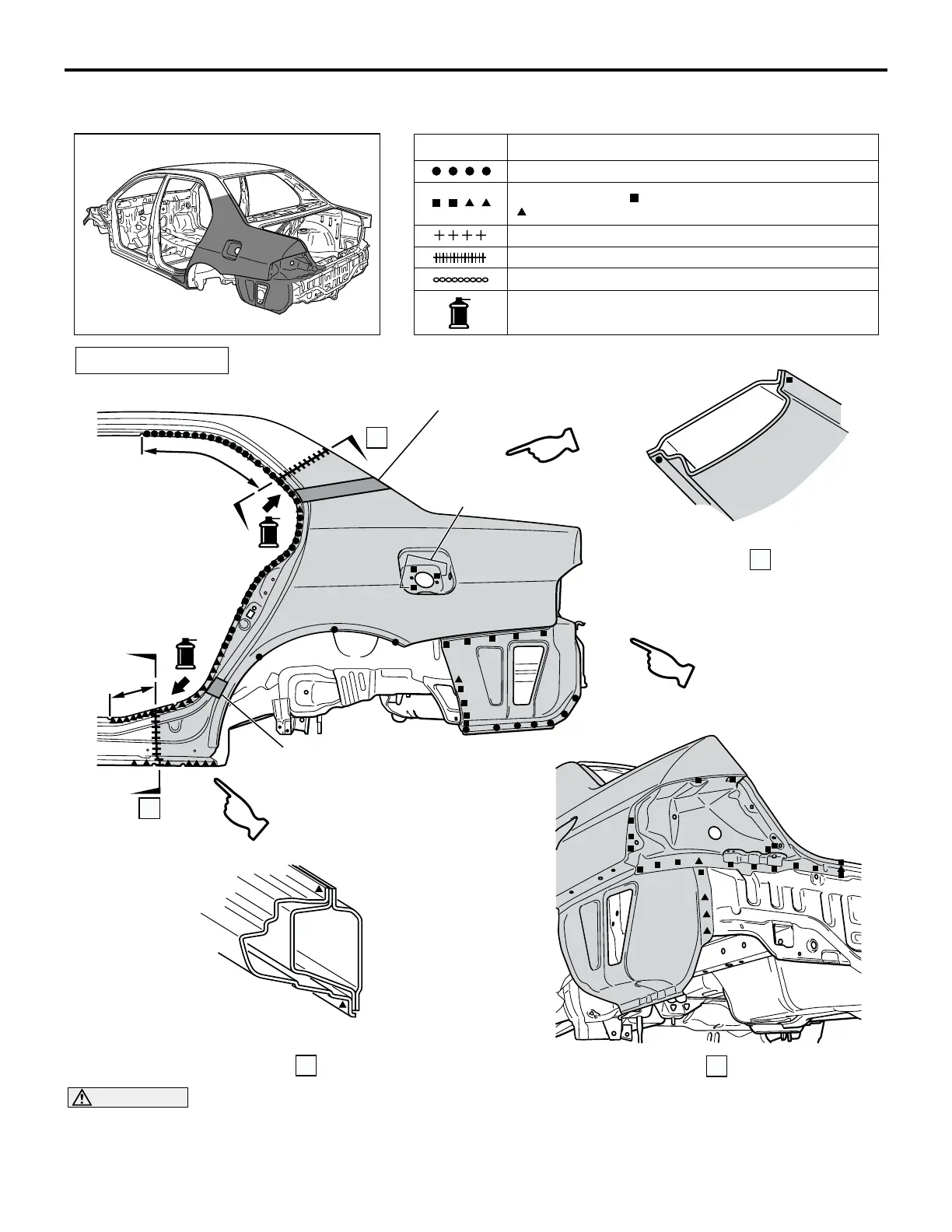

QUARTER OUTER
WELDED PANEL REPLACEMENT
3-24
QUARTER OUTER
M4030008000097
CAUTION
When repairing the area using foam materials do
not use firing tools since the foaming materials
may burn.
AB201912
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding ( : indicates two panels to be welded
: indicates three panels to be welded)
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
AB
AB202223
AB
B
C
A
A
B
C
E
D
150 ± 50 mm
(6.3 ± 1.97 in)
500 ± 50 mm
(19.7 ± 1.97 in)
FOAM ACOUSTIC
MATERIAL
FOAM ACOUSTIC
MATERIAL
3 POINTS
LEFT SIDE
REPAIR WELDS
