Mitsubishi LANCER EVOLUTION 2003 Body Repair Manual

REAR FLOOR
WELDED PANEL REPLACEMENT
3-30
REAR FLOOR
M4030010000094
NOTE: Refer to the Rear End Panel Section on P.3-
29 for the welding points with the rear end cross-
member.
AB201915
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding ( : indicates two panels to be welded
: indicates three panels to be welded)
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
AB
AB202228
AB

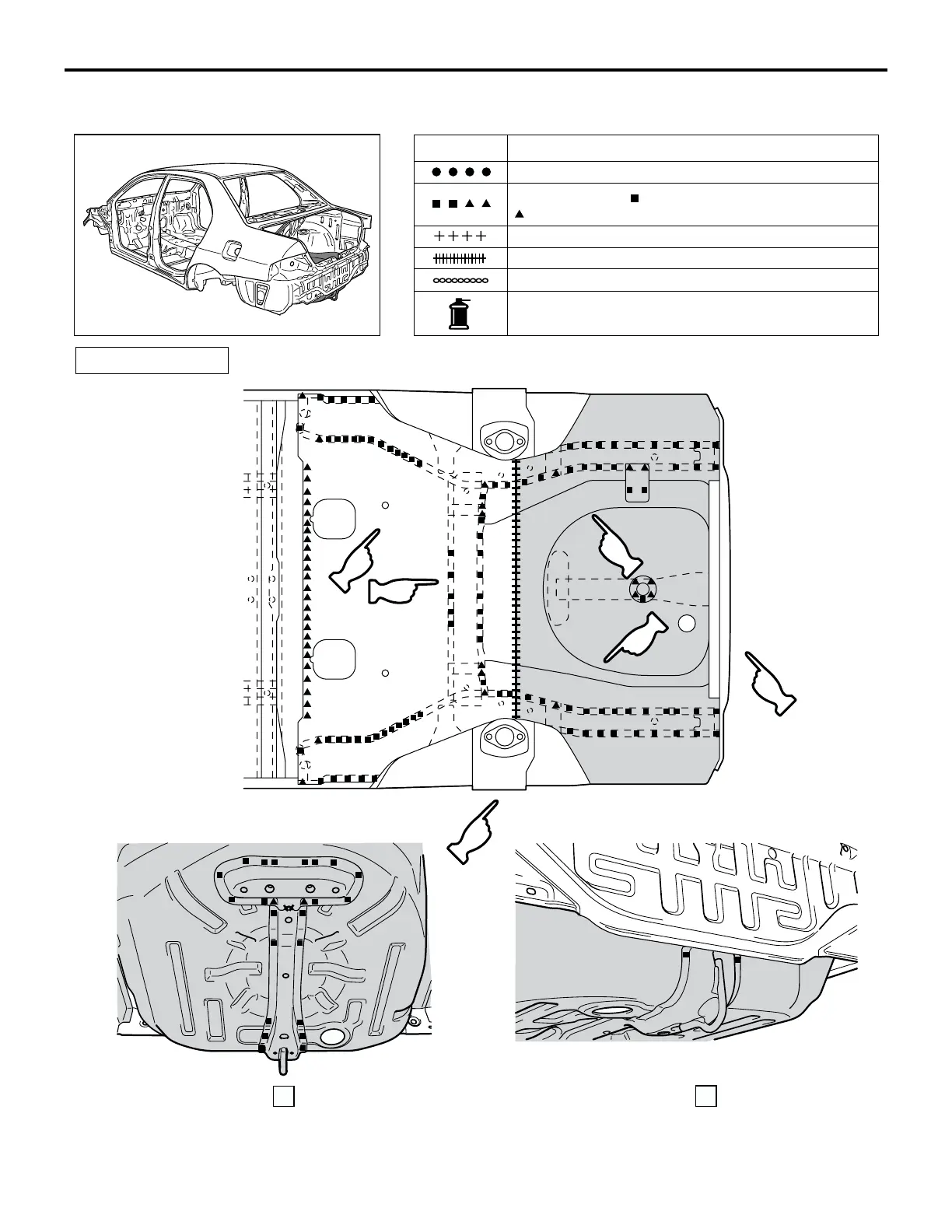

REPAIR WELDS
F
B
D
E
C
A
B
A
