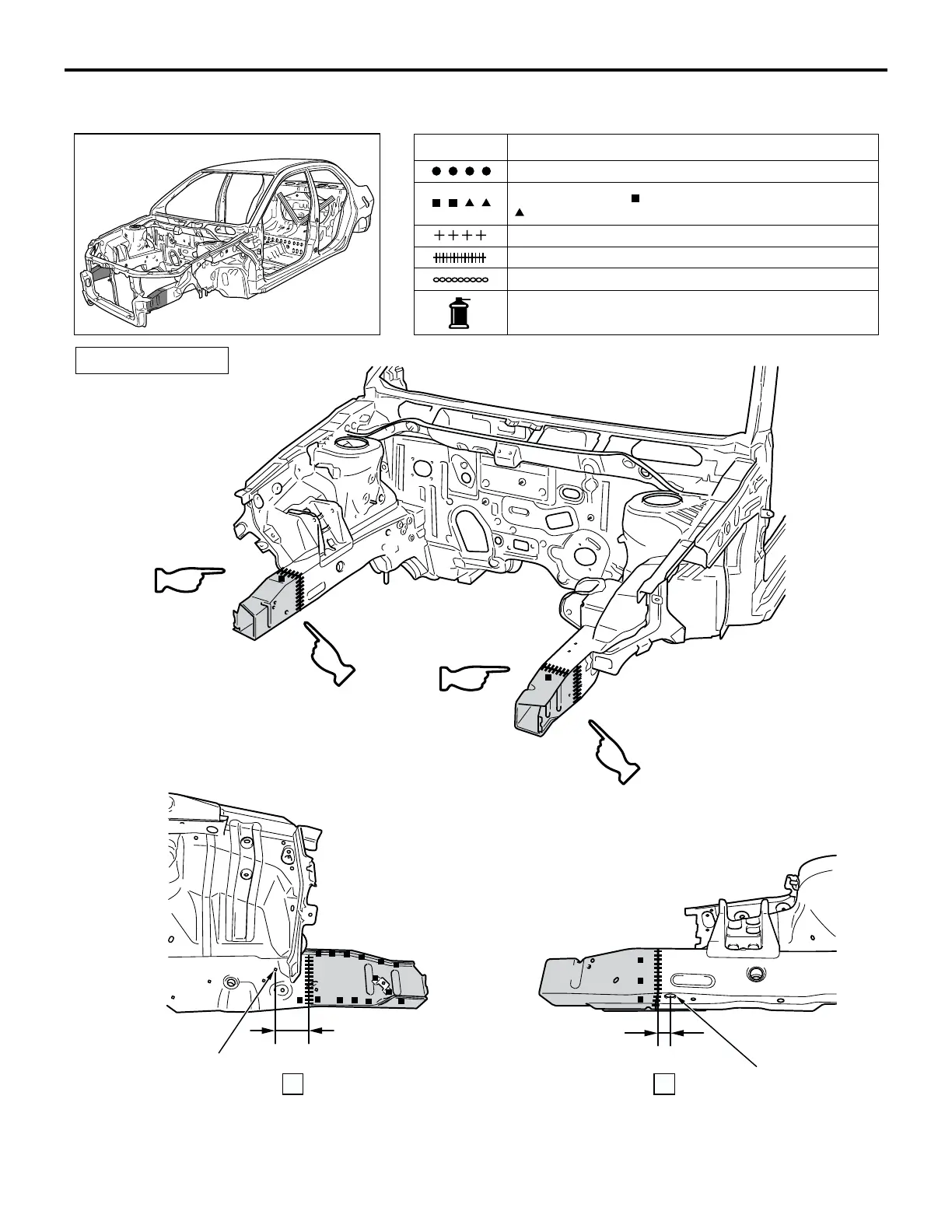

FRONT SIDEMEMBER (PARTIAL REPLACEMENT)
WELDED PANEL REPLACEMENT
3-8
FRONT SIDEMEMBER (PARTIAL REPLACEMENT)
M4030000100045
AB201905
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding ( : indicates two panels to be welded
: indicates three panels to be welded)
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
AB
AB202221
AB
RIGHT SIDE
83 mm (3.27 in)
A
B
D
C
REPAIR WELDS
A
45 mm (1.77 in)
B
CENTER OF FRONT
SIDEMEMBER INNER
POSITIONING HOLE
CENTER OF SPLASH
SHIELD MOUNTING
HOLE
To Next Page
