SIDE SILL
WELDED PANEL REPLACEMENT
3-20
SIDE SILL
M4030007000102
CAUTION
When repairing the area using foam materials do
not use firing tools since the foaming materials
may burn.
AB201908
SYMBOL
OPERATION DESCRIPTION
Spot welding
MIG plug welding ( : indicates two panels to be welded
: indicates three panels to be welded)
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)
AB
AB202323

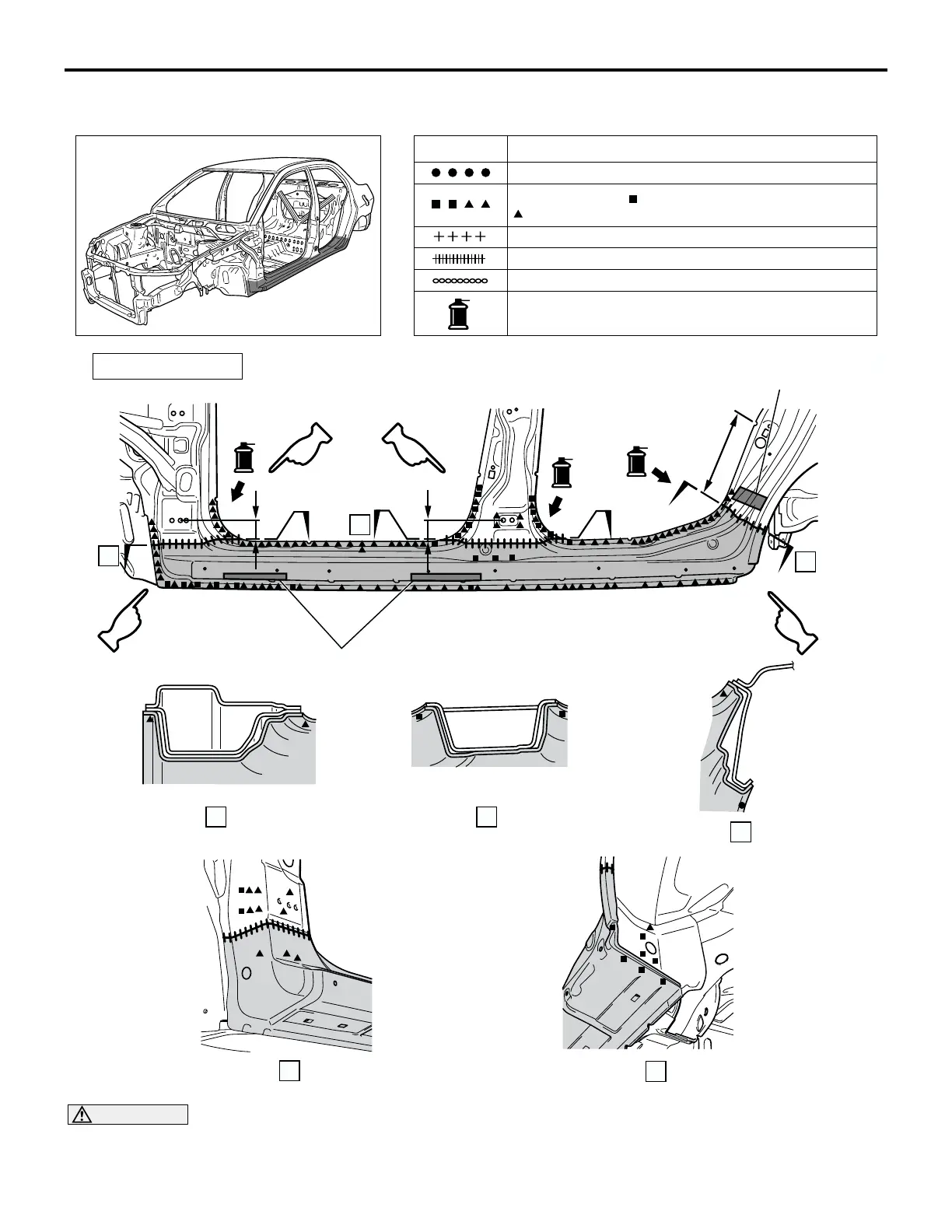

REPAIR WELDS
A B
C
D
E
70 mm
(2.76 in)
70 mm
(2.76 in)
290 mm
(11.4 in)
A
B
C
FOAM ACOUSTIC MATERIAL
HIGH RIGIDITY FOAM MATERIAL
D
E
F
G
AB
To Next Page
